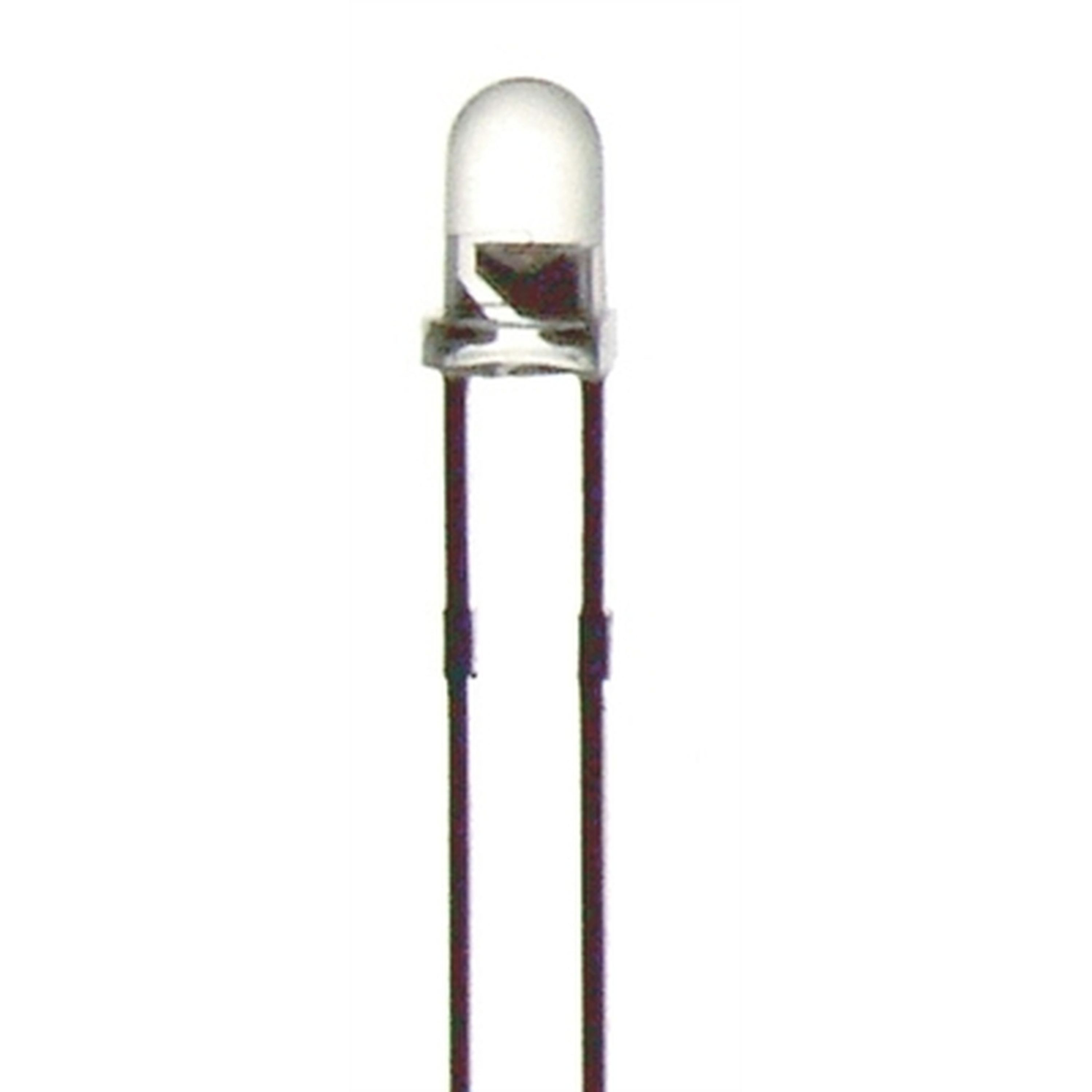

Green 3mm LED 500mcd Round Clear
- Cat No:
- ZD0122
Sold as:1 Each
In Stock$0.90
Description
Green 3mm LED 500mCd Round Clear
Specifications
- LED Type
- 3mm Standard LED
- Illumination Type
- Single Colour
- Light Colour
- Green
- Lens Type
- waterclear
- Light Wavelength
- 568.0nm
- V<sub>f (typ)</sub> - Typical Forward Voltage
- 2.1V
- I<sub>f (typ)</sub> - Typical Forward Current
- 20.0mA
- I<sub>f (max)</sub> - Maximum Forward Current
- 30.0mA
- Intensity
- 500.0mcd
- Viewing Angle
- 20.0°
- Resistor for 5VDC
- 150.0Ω
- Resistor for 9VDC
- 360.0Ω
- Resistor for 12VDC
- 510.0Ω
- Diameter
- 3.0mm
- Packaged Dimensions
- 3.5cm(Length) x 0.3cm(Width) x 0.3cm(Height)
