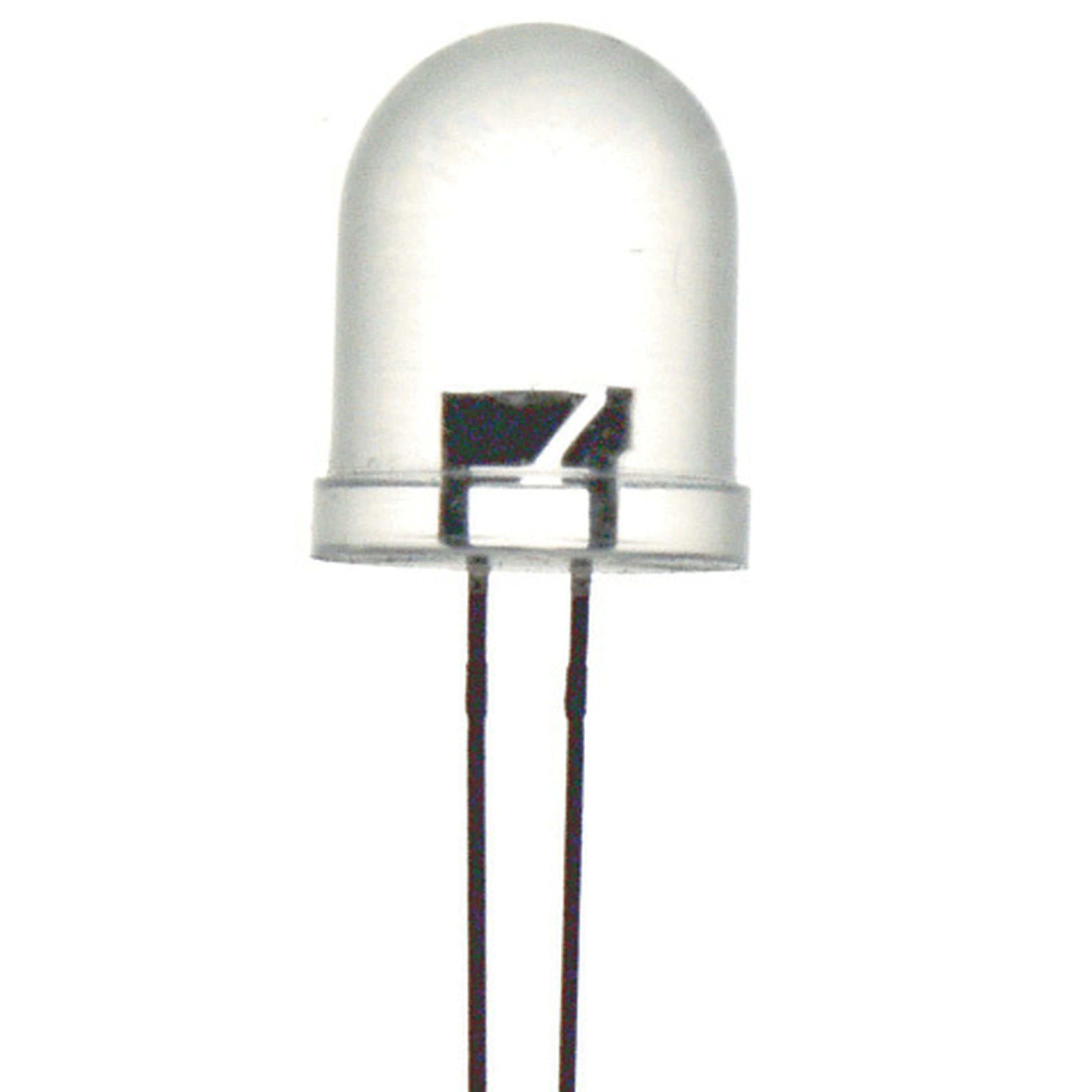

Green 5mm LED 7500mcd Round Clear
- Cat No:
- ZD0172
In Stock
$1.50
Description
Green 5mm LED 7500mcd Round Clear
Specifications
- LED Type
- 5mm Standard LED
- Illumination Type
- Single Colour
- Light Colour
- Green
- Light Wavelength
- 525.0nm
- Lens Type
- waterclear
- Viewing Angle
- 30.0°
- Intensity
- 7500.0mcd
- V<sub>f (typ)</sub> - Typical Forward Voltage
- 3.5V
- I<sub>f (typ)</sub> - Typical Forward Current
- 20.0mA
- I<sub>f (max)</sub> - Maximum Forward Current
- 30.0mA
- Resistor for 5VDC
- 75.0Ω
- Resistor for 9VDC
- 270.0Ω
- Resistor for 12VDC
- 430.0Ω
- Diameter
- 5.0mm
- Packaged Dimensions
- 0.5cm(Length) x 0.5cm(Width) x 3.5cm(Height)
