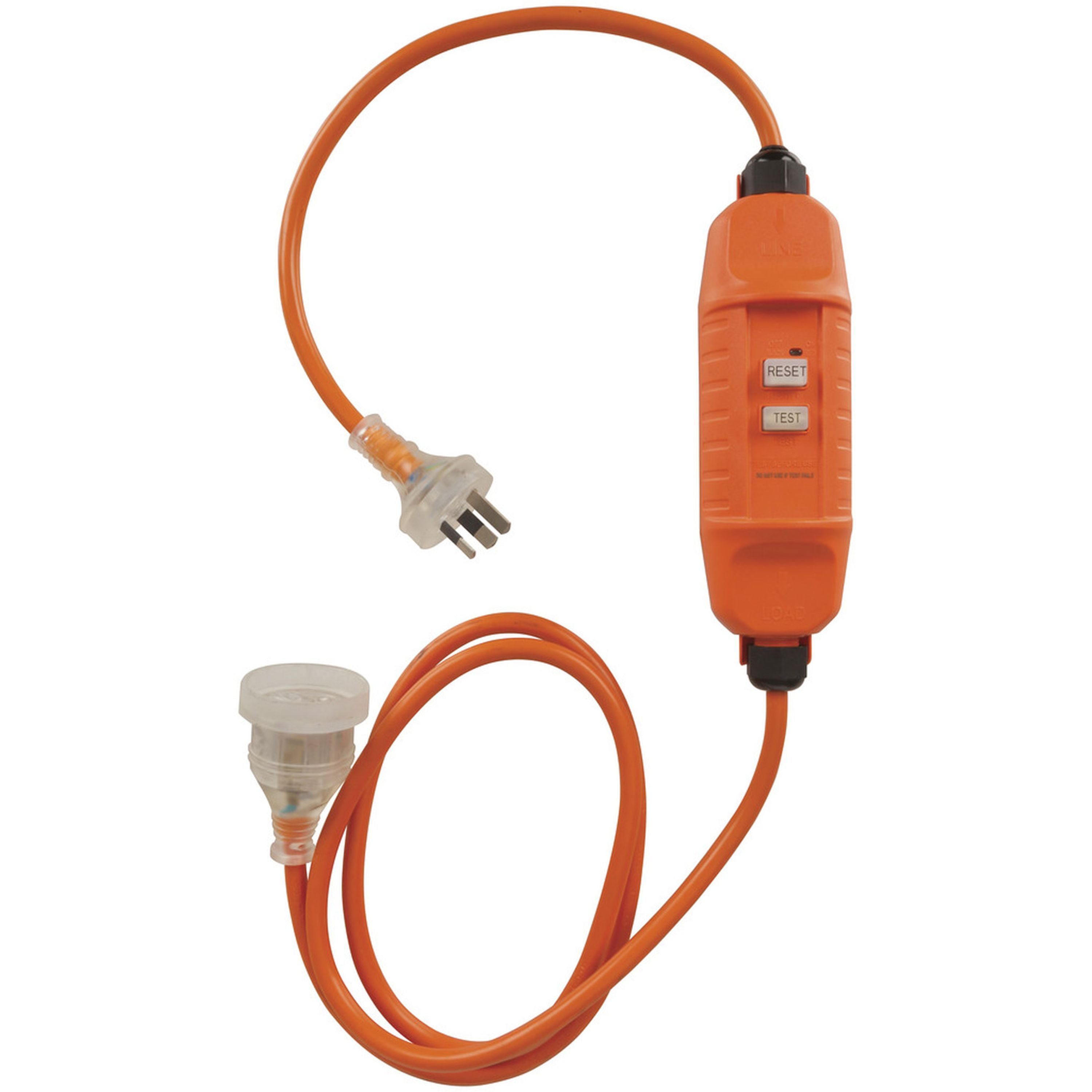

IP66 Inline RCD Circuit Breaker 1.8m

Description

Protect yourself at home or the worksite with this handy inline RCD circuit breaker with 1.8m lead. The built-in Residual Current Device (RCD) provides the best method to protect against electrocution and equipment damage. Faster acting and improved safety compared with standard over-current circuit breakers. It has an IP66 rain and dustproof rating, and includes test and reset buttons. Meets Australian and New Zealand safety approvals.

Features:

- Automatically shuts off power when a fault occurs

- IP66 rain and dustproof rating

- Durable

RCD Specifications:

Residual Non-Operating Current: 15mA

Residual Operating Current: 30mA

Max. Tripping: ≤0.1S

IP Rating: IP66

Length: 1.8m

Specifications

Mains Voltage Range: 220.0V,240.0V
Frequency: 50.0Hz-60.0Hz
Mains Item connection: Mains AU/NZ 3 Pin
AC current rating: 10.0A
Type of Protection: Residual current device (RCD)
Reset Method: Manual Pushbutton
Overload Trip Current: 30.0A,30.0A,30.0A,30.0A
Overload Trip Time: 100.0ms,100.0ms,100.0ms
RCD Operating Current: 30.0mA,30.0mA,30.0mA
RCD Non-operating Current: 15.0mA
RCD Trip Time: 100.0ms,100.0ms,100.0ms
IP Rating: IP66
Dust/Particle Ingress Protection: 6 - Dust tight, no ingress of dust
Liquid/Moisture Ingress Protection: 6 - Powerful water jets
Cable length: 1.8m
Packaged Dimensions: 37.7cm(Length) x 23.0cm(Width) x 6.7cm(Height)
