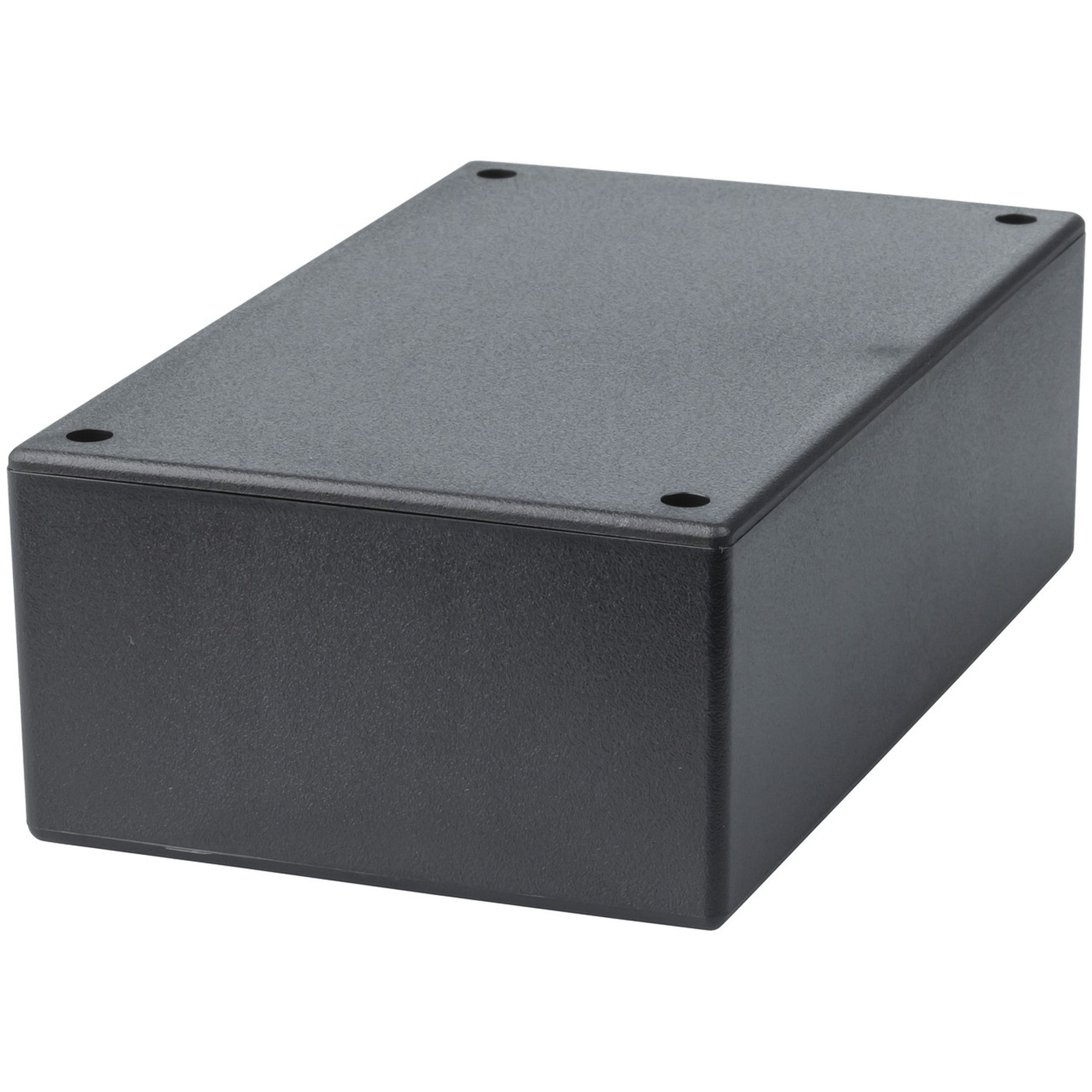

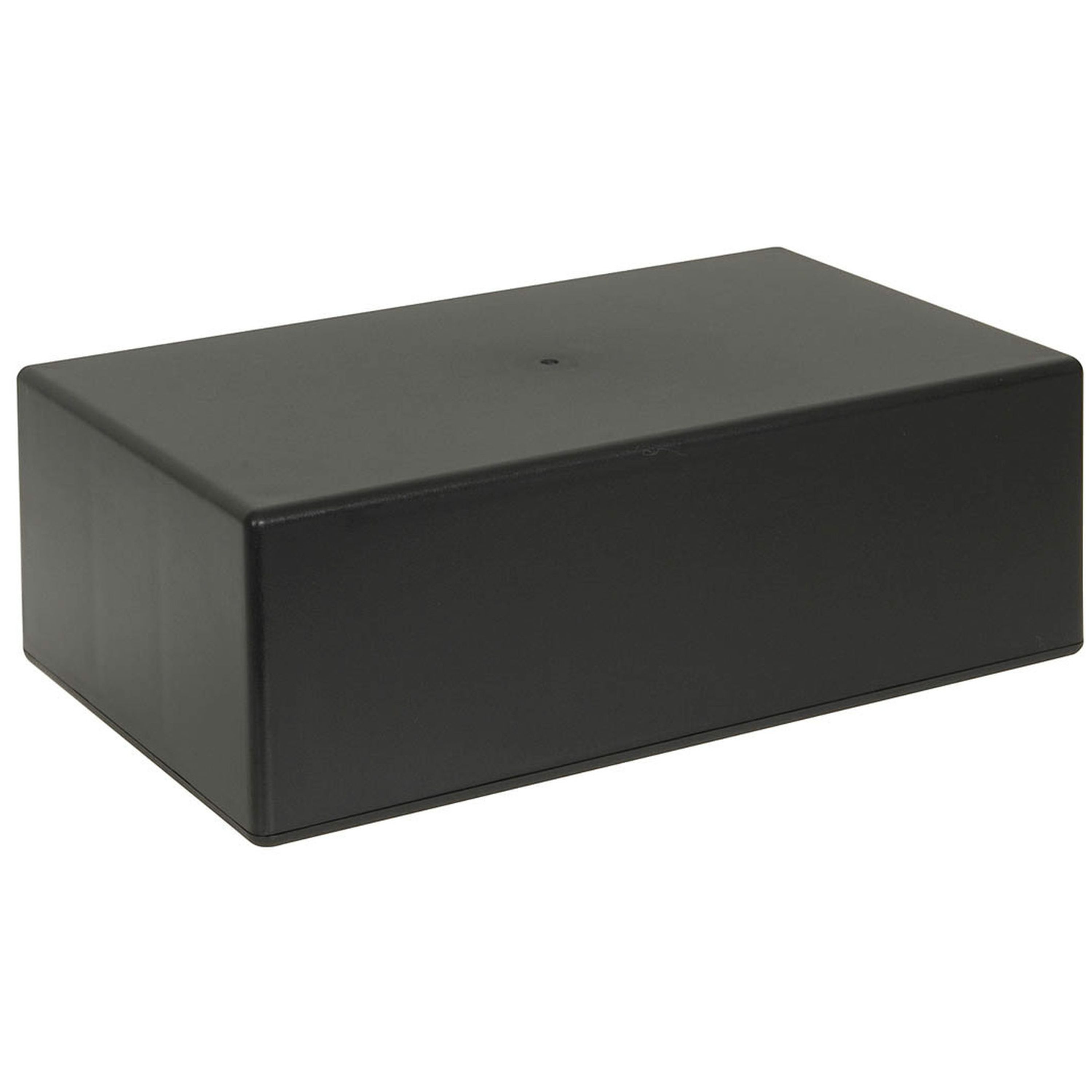

Jiffy Box - Black - 158 x 95 x 53mm
- Cat No:
- HB6011
In Stock
$6.50
Description
Manufactured from ABS plastic, these jiffy boxes not only look great, they have been designed to incorporate everything our customers wanted in a constructor's box. Sizes are compliant with industry standards externally and PCB fitting internally.
Features:
• Impervious, dimple-free finish provides good adhesion for screen printing

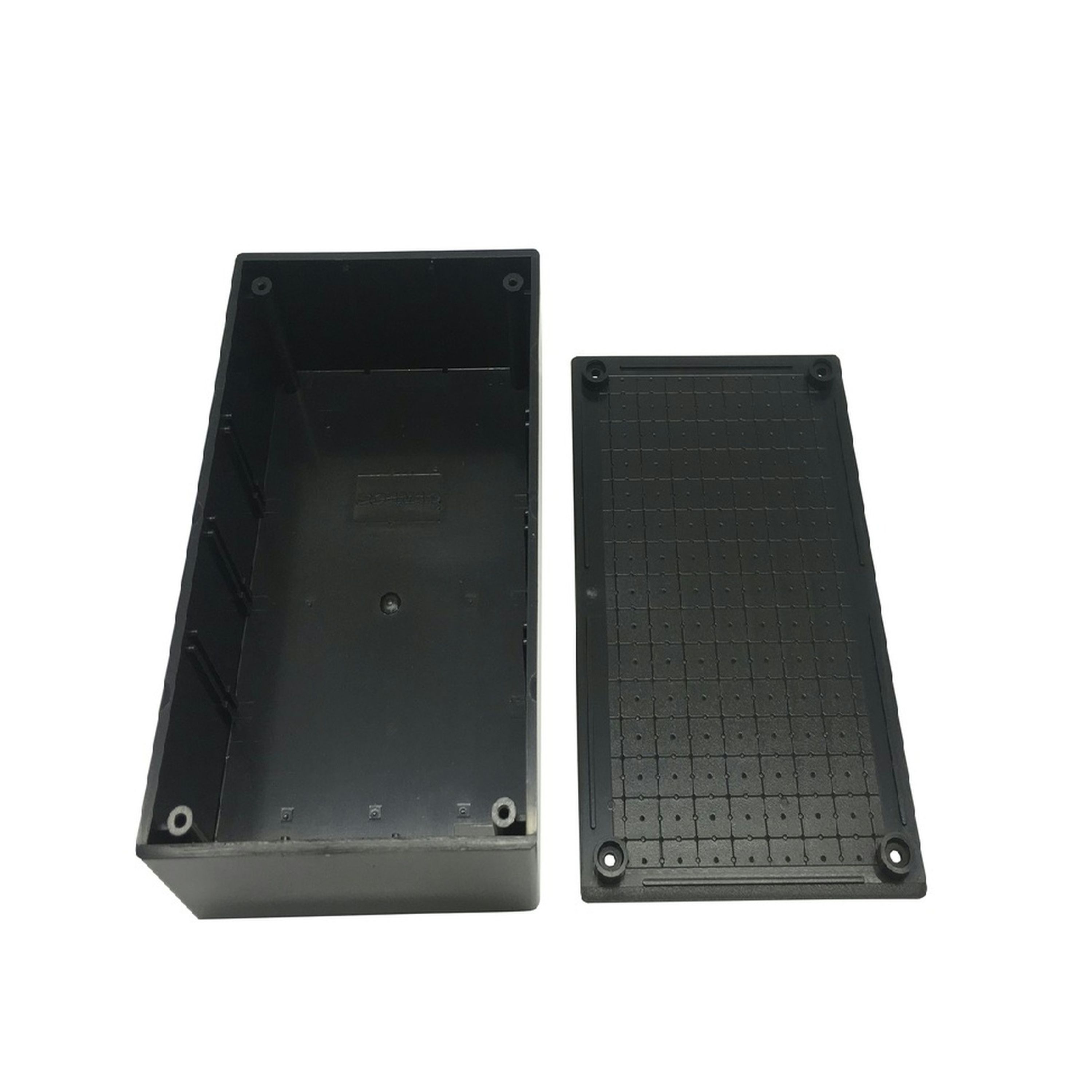

• Lids feature a 5mm grid of 'centre punch' type points on the underside for quick, easy and accurate drilling
• Lids also feature a 10mm grid of scribed lines providing an easy and precise guide for cutting or filing cut-outs
• PCB guides in the sides of the box have snap-in locators. Eliminates the need for stand-off hardware when mounting boards horizontally
• Box also has a grid of 'centre punch' type points on the base of the inside
Internal Dimensions:
To fit PCB (mm) Vertical 89 x 48mm
To fit PCB (mm) Horizontal 134 x 88mm
Specifications
- Length
- 158.0mm
- Width
- 95.0mm
- Height
- 53.0mm
- Packaged Dimensions
- 15.8cm(Length) x 9.5cm(Width) x 5.3cm(Height)
