Laservii M1 12W Enclosed Laser
- Cat No:
- TL9100
- MPN:
- M1S-12w
Unavailable
Description

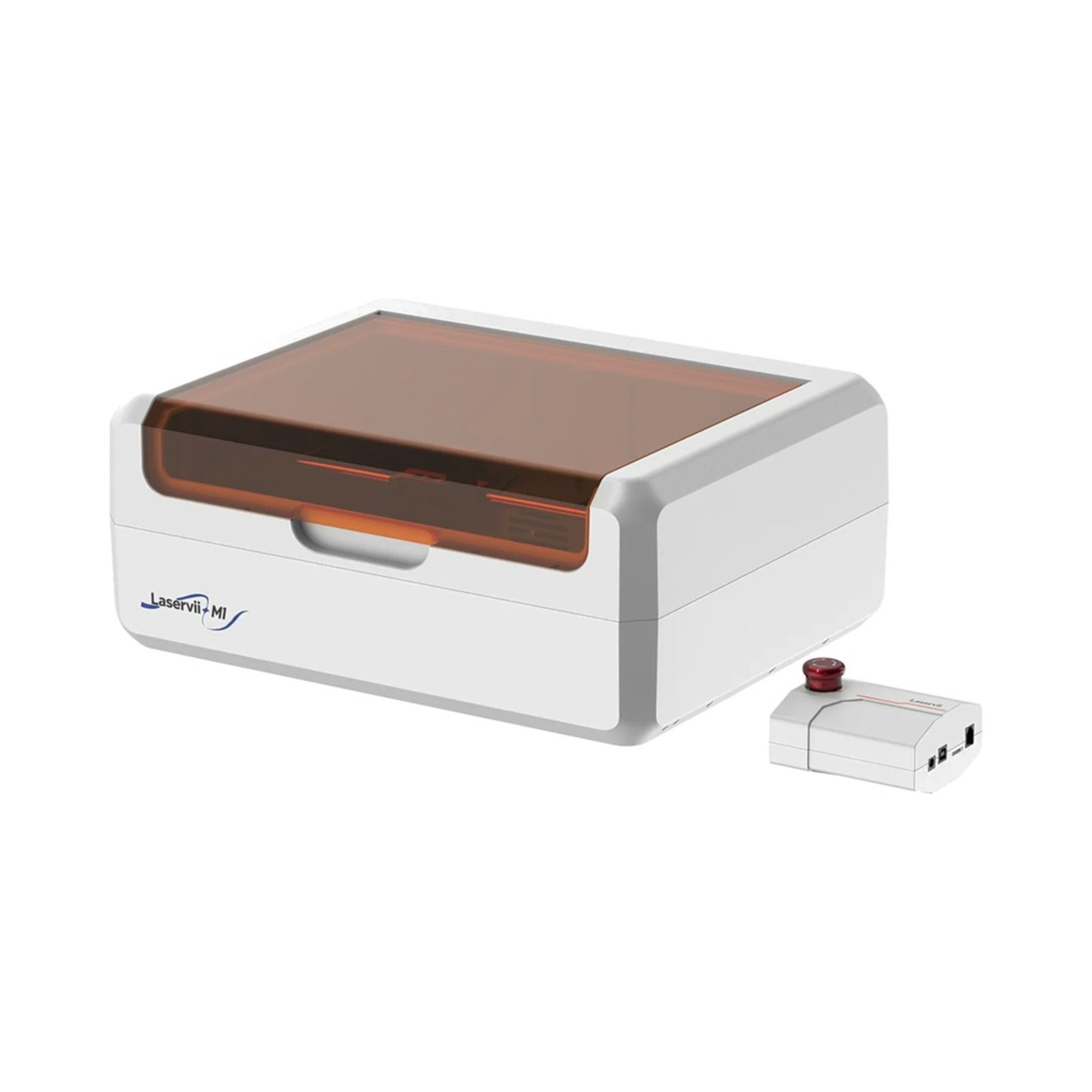

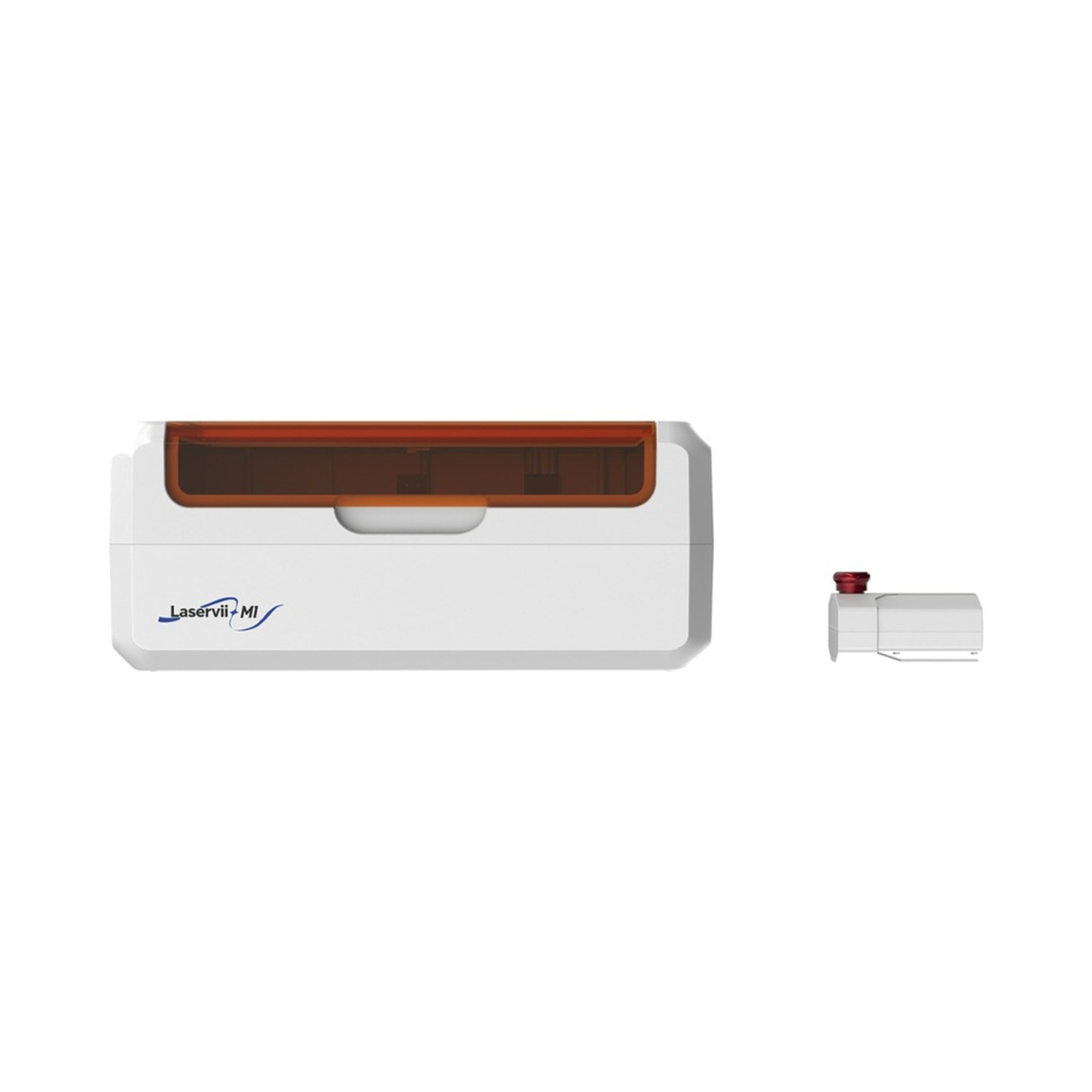

12W Enclosed Lasevii Laser Engraver
Power, precision, and safety in one compact enclosed system.
This 12W enclosed laser engraver is built for creators who want professional results, with the flexibility to scale up. Start with 12W cutting and engraving performance. Optionally upgradeable to a 22W high-power diode laser for faster cutting or a 2W IR laser for detailed work.
The fully enclosed design protects users from laser exposure while improving smoke control and engraving consistency. Whether you're working with wood, leather, acrylic, coated metals, this system delivers clean, sharp results every time.
Engraving area: 305x205mm

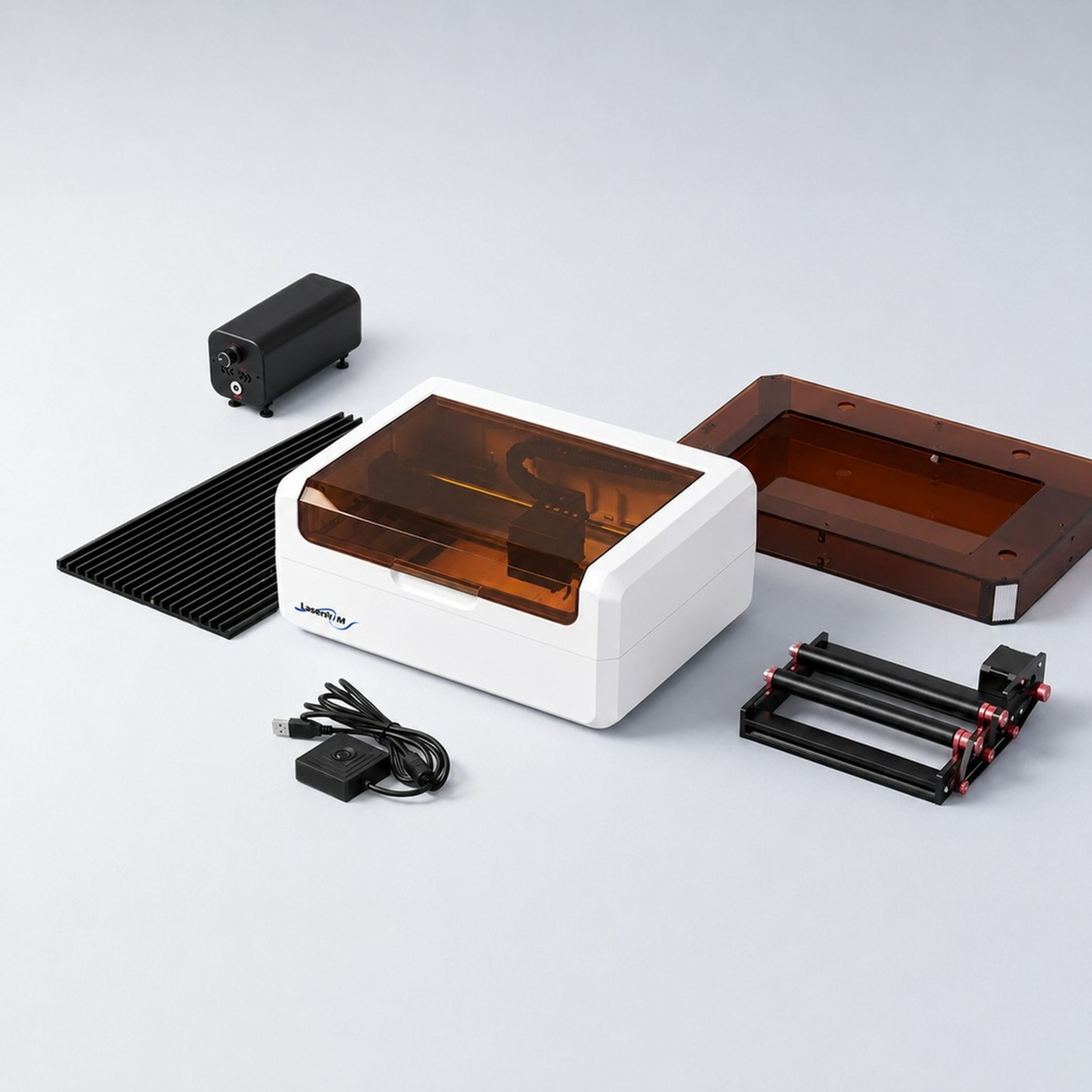

Upgradeable to 22W Diode (002005) & 2W IR Laser (002003)
Optional air pump available separately as TL9101

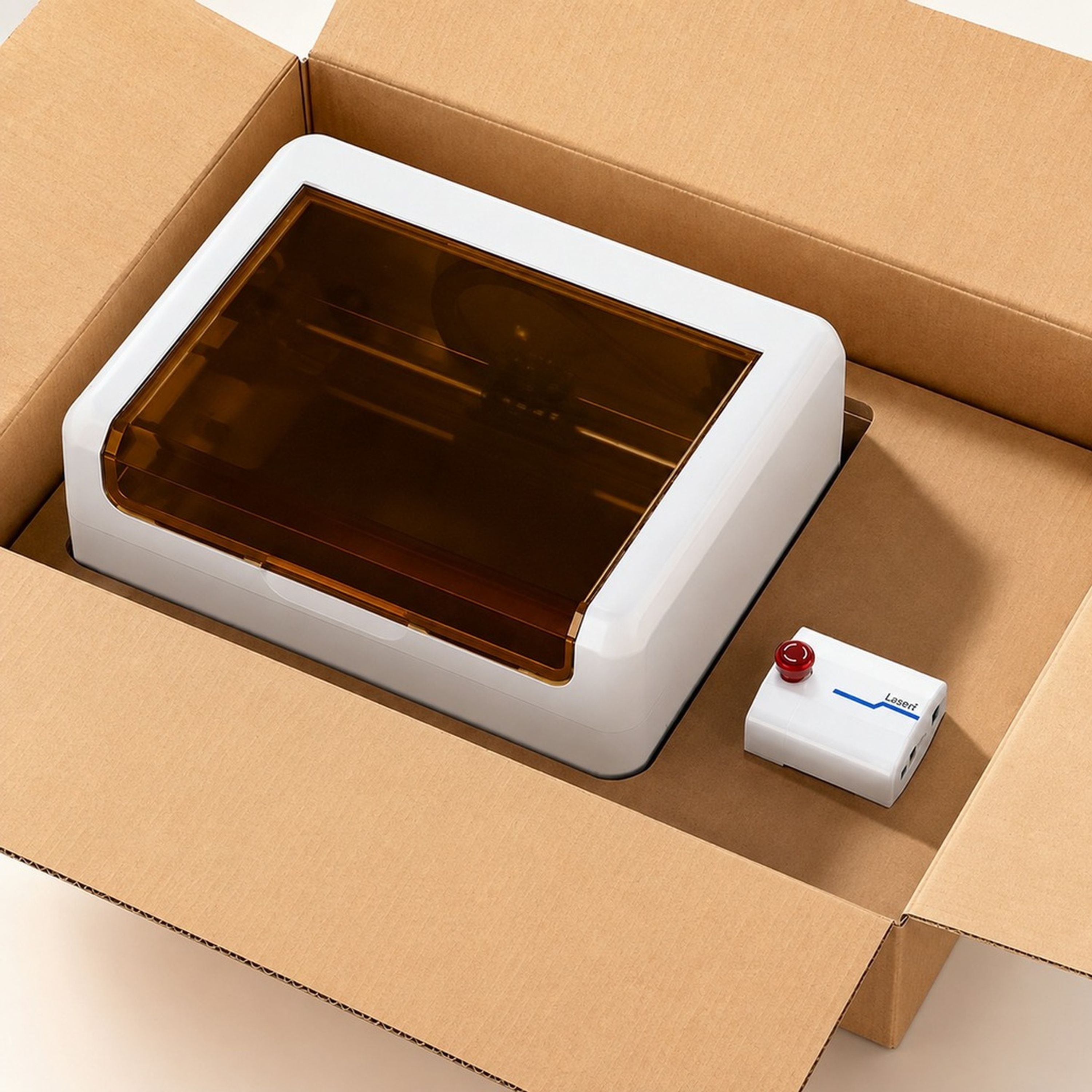

In the box:
- Laser engraver
- Laser module
- Controller
- Connection accessories, cables, and tools
- 24v 3A mains power supply and IEC mains cable
- Safety glasses
- Manual
Note: This product is best suited for hobbyists, makers, engineering students, educators, and users with an interest in learning CNC machining. While beginners can learn to use the machine, some prior technical knowledge or a willingness to learn CAD/CAM and CNC programming will greatly improve the overall experience. More info is available here.
Specifications
- Device Type
- Enclosed diode laser engraver-cutter
- Laser Power
- 12W (Upgrades available in 24W & 2W IR Laser)
- Laser Spot Size
- 0.08–0.1 mm — typical for compressed-spot 12W diode modules
- Engraving Area
- 305 x 205 mm
- Max Speed
- 36000 mm-min (rapid-travel speed
- Motion System
- Enclosed CoreXY gantry system
- Dimensions
- 485 x 378 x 200 mm
- Weight
- 7.0 kg
- Connectivity
- USB
- Software Compatibility
- LightBurn
- Safety Features
- Fully enclosed housing
- Frame Composition
- Enclosed metal-plastic housing
- Bed Type
- Flat engraving bed
- Driver Motors
- Stepper-driven CoreXY belts (motor spec not published)
- Positioning Accuracy
- 0.01 mm
- Drive Mechanics
- Belt-driven CoreXY gantry
- Compatible Materials
- Wood
- Length
- 485mm
- Width
- 378mm
- Height
- 200mm
- Diameter
- 400mm
- Weight
- 7g
- Packaged Dimensions
- 380 x 280 x 280 cm
