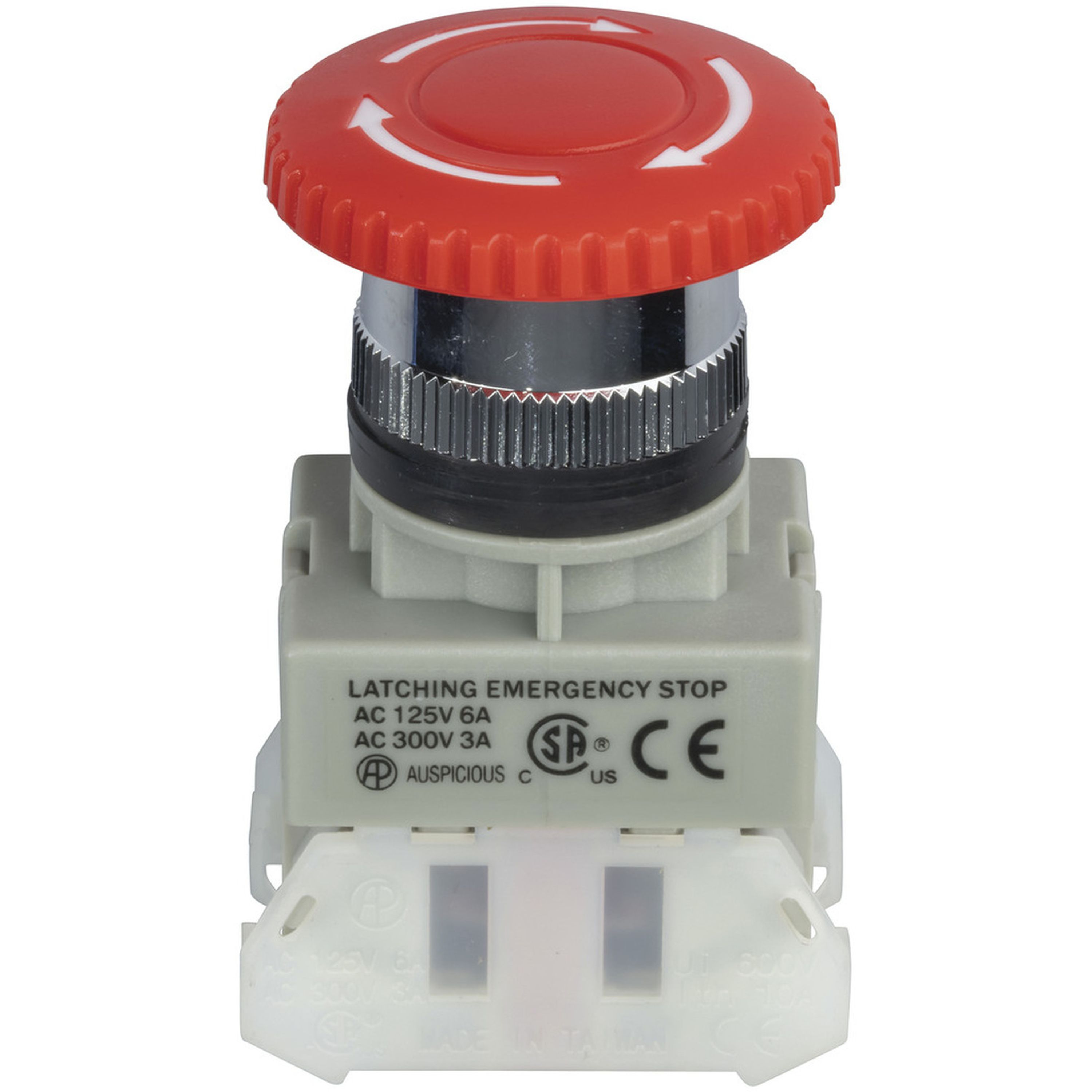

Latching Emergency Stop Switch

Cat No:
SP0786
Sold as:1 Each
Carton size:200
In Stock

$22.90

Description

Essential for installations of industrial or lab equipment. Latching actuator with rotating release. Two sets of contacts: one normally open, one normally closed. When the actuator is pushed in, the contacts change state, ensuring the equipment can't be operated until the switch is intentionally disengaged by rotating the actuator and releasing.

Features:
• Configuration: 2 contact sets, normally closed (RED) & normally open (GREEN)
• Actuation: Push off, rotate on


Specifications

Switch Type
Pushbutton
Poles / Contacts
2.0 pole
Throws / Positions
2.0 pos
Switch Function
Latching
Mechanism Material
Plastic
Switch Connection
Screw Terminal
Switch Colour Coded
Red
Pole Throw Type
DPST
AC Voltage Rating
300.0V
AC Current Rating
6.0A
Packaged Dimensions
7 x 4 x 3 cm
Switch Type
Pushbutton
Poles / Contacts
2 pole
Throws / Positions
2pos
Switch Function
Locking On/Off
Actuator Length
35mm
Actuator Width
24mm
AC Voltage rating
125V, 300V
AC current rating
6A, 3A
