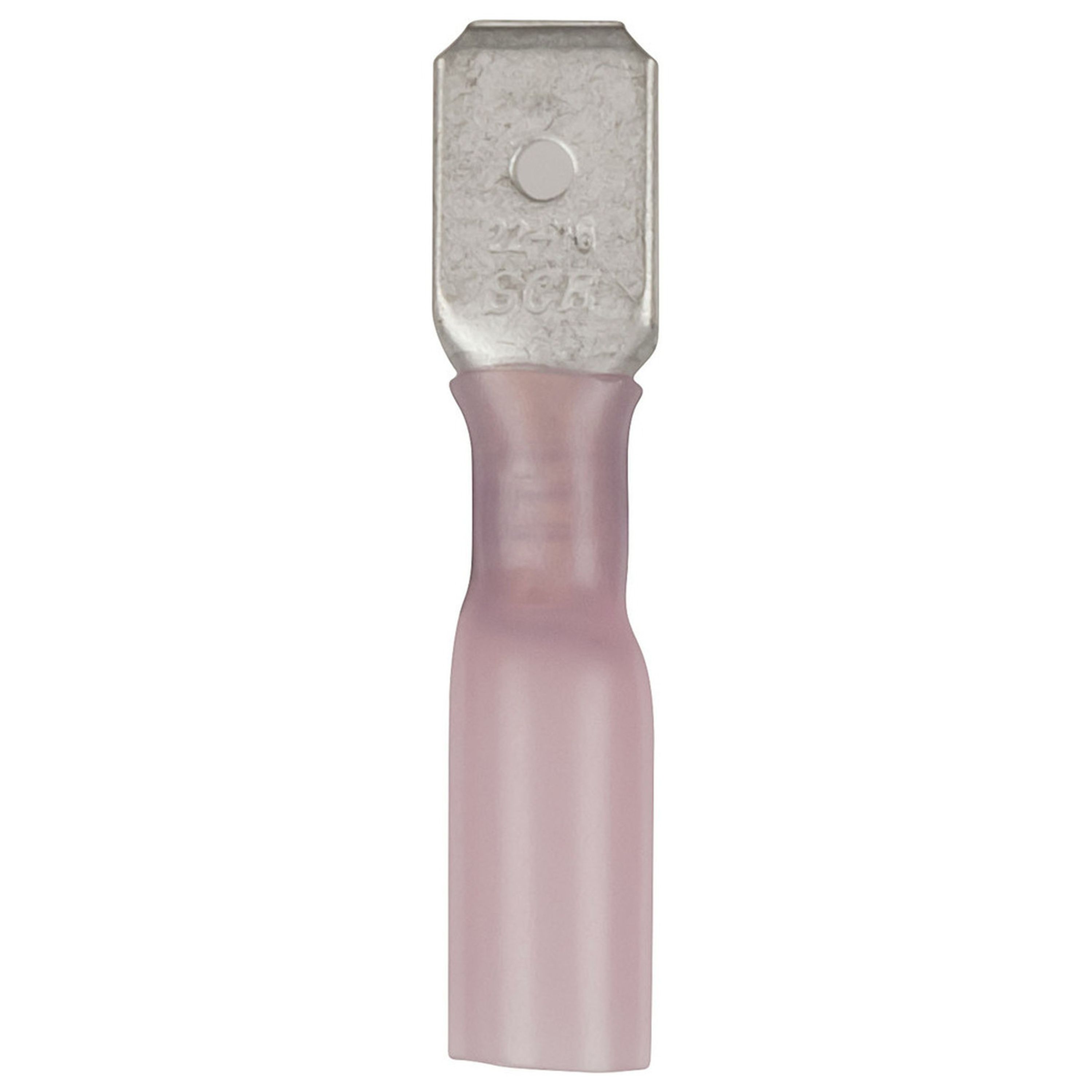

Male Spade - Red - Packet of 8 - Self Sealing Quick Connectors
- Cat No:
- PT4809
Sold as:1 Each
In Stock$8.70
Description
Self Sealing Quick Connectors
The unique heat sensitive sealing gel in these quick connectors will automatically flood the crimp joint with sealant as the heatshrink sleeve is heated. The resulting crimp connection is water and corrosion resistant and has good strain relief properties. 11 styles to choose from.
The unique heat sensitive sealing gel in these quick connectors will automatically flood the crimp joint with sealant as the heatshrink sleeve is heated. The resulting crimp connection is water and corrosion resistant and has good strain relief properties. 11 styles to choose from.
Specifications
- Type of quick connector
- Spade
- Device
- Plug
- Terminal Size
- 6.4mm
- Colour Coded
- Red
- Pack Quantity
- 8.0pc
- Insulation
- Heatshrink Sleeve
- Wire Diameter
- 1.0mm-1.0mm
- Cable Entry Diameter
- 4.1mm,4.1mm
- Device Type
- Heat Shrink QC
- Outer Diameter
- 4.3mm
- Pack Quantity
- 8.0
- Wire Gauge
- 22-18 AWG
- Insulation
- Nylon
- Wire Diameter
- 1.0mm
- Colour
- Red
- Wire Size (Cross Section)
- 1.0mm²
- Contact Material
- Copper
- Terminal Size
- 6.4mm
- IP Rating
- IP67
- Attachment Method
- Crimp
- Width
- 6.4mm
- Packaged Dimensions
- 11.9cm(Length) x 6.3cm(Width) x 1.7cm(Height)
