Mean Well

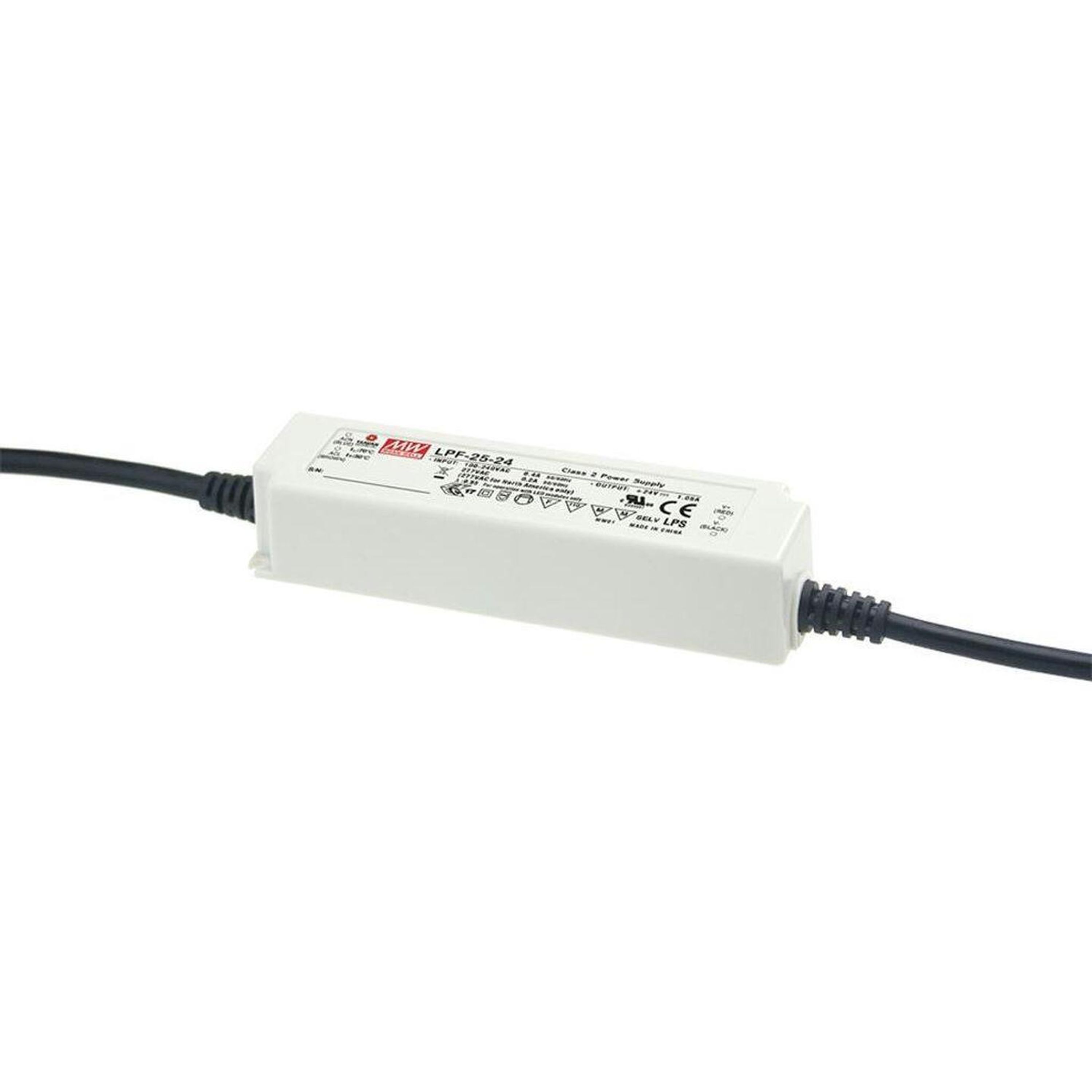

MEAN WELL 25W 24V 1.05A IP67 Dimmable LED Driver LPF-25-24
- Cat No:
- 401609
- MPN:
- LPF-25-24AU
Sold as:1 Each
Out of Stock$97.90
Description
25W AC/DC LED driver featuring dual mode constant voltage and constant current output. Operates from 90-305VAC. Features up to 87% efficiency, and fanless design, the entire series is able to operate from -35 to +70°C under free air convection. IP67 ingress protection allows it to operate in multiple environments.
Features:
- Constant Voltage + Constant Current mode output
- Plastic housing with Class II design
- Built-in active PFC function
- Class 2 power unit
- Fully encapsulated with IP67 level
- Typical lifetime>50000 hours
- 5 years warranty
Specifications
- Length
- 148.0mm
- Width
- 40.0mm
- Height
- 32.0mm
- Weight
- 0.36kg
- Packaged Dimensions
- 25.0cm(Length) x 11.5cm(Width) x 4.5cm(Height)
