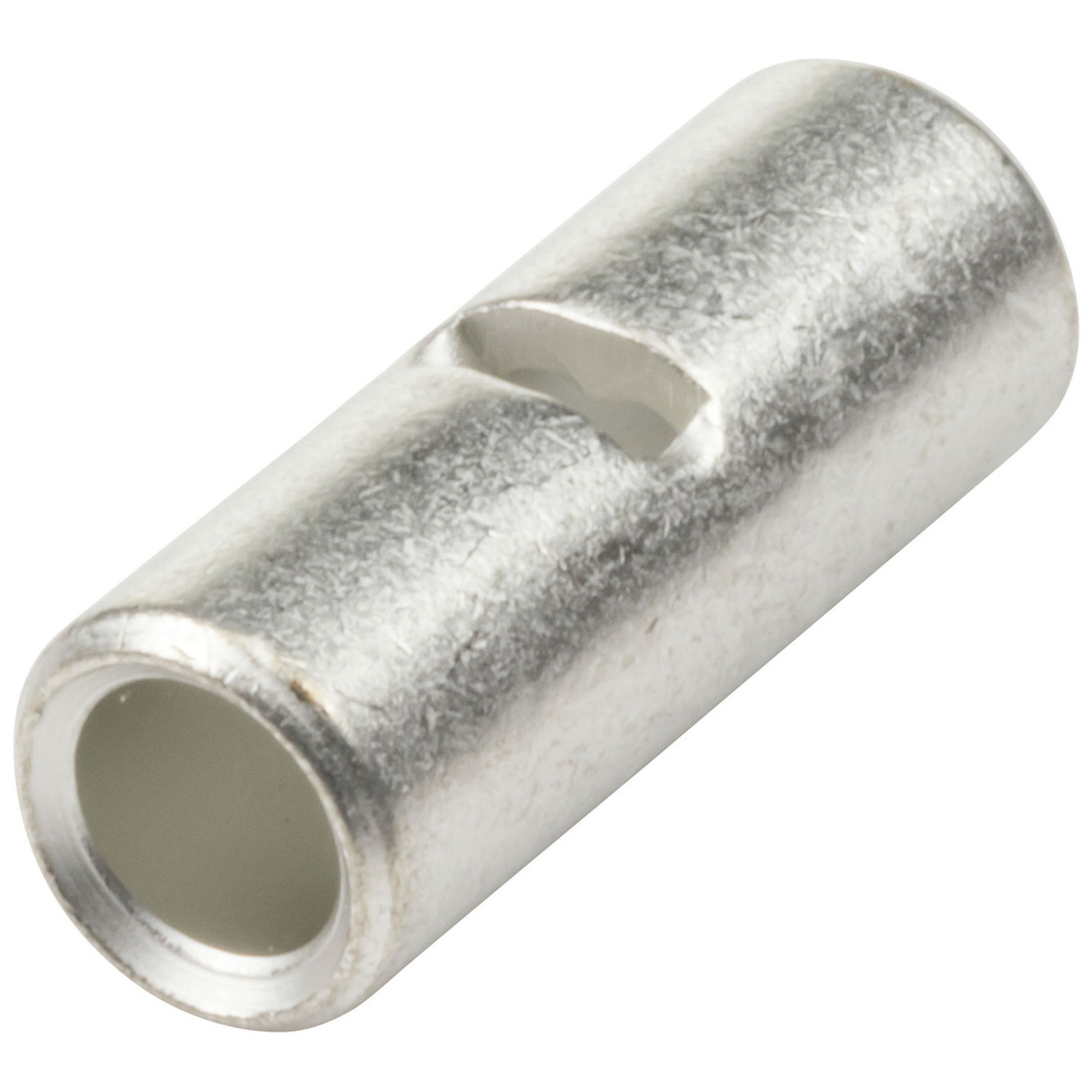

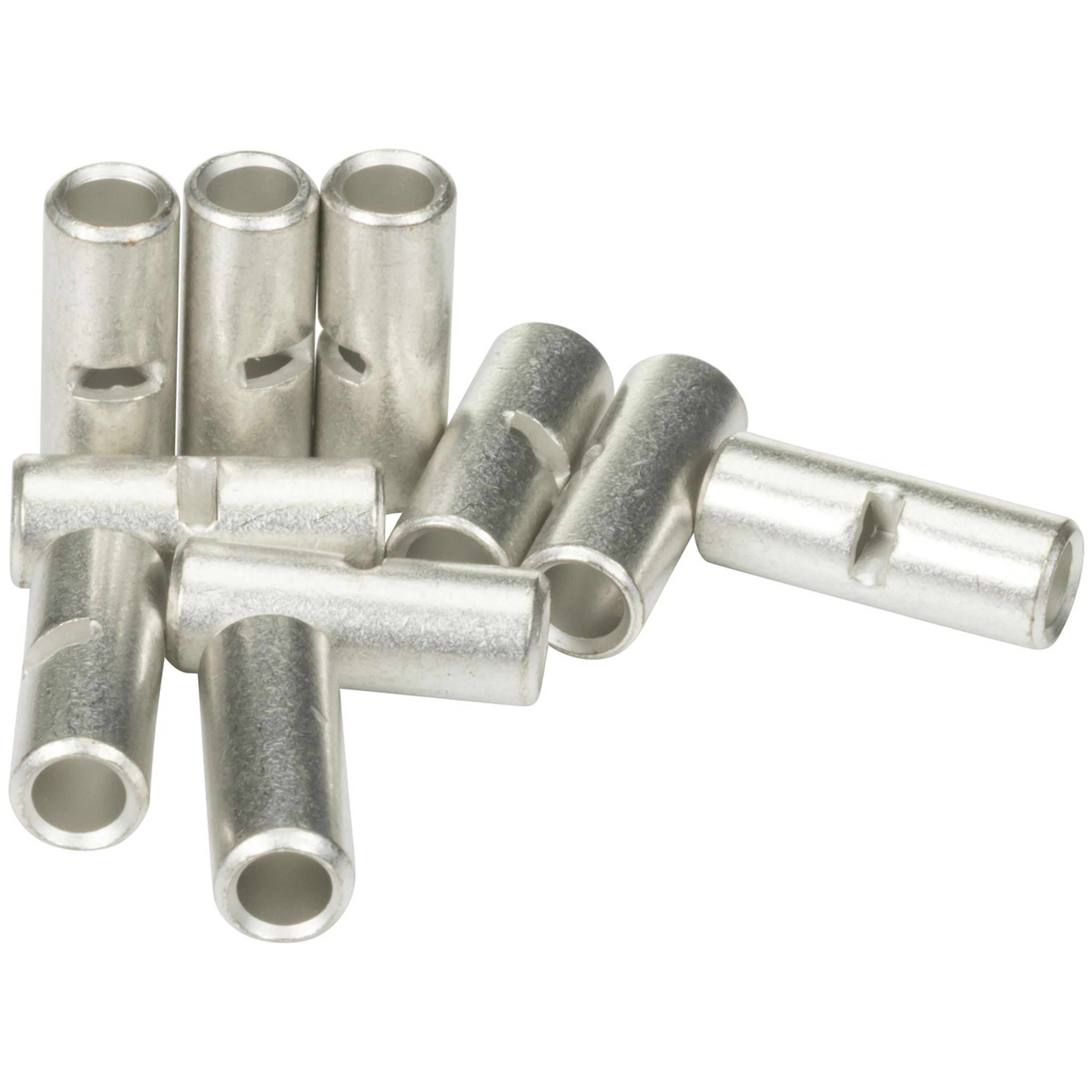

Non-Insulated Butt Terminal 12-10AWG Pack of 10
- Cat No:
- PT4962
Sold as:1 Each
In Stock$4.90
Description
A range of non-insulated butt splice terminals similar to our non-insulated eye terminal range but designed to directly join two cables of similar diameter together. These lugs are best attached via a specialized crimping tool for optimum conductivity and secure fit.
Specifications
- Type of quick connector
- Butt
- Pack Quantity
- 10.0pc
- Contact Material
- Tin Plated Copper
- Wire Gauge
- 12.0AWG,12.0AWG
- Cable Entry Diameter
- 5.52mm,5.52mm
- Length
- 5.52mm
- Diameter
- 15.0mm
- Packaged Dimensions
- 13.8cm(Length) x 6.4cm(Width) x 1.3cm(Height)
