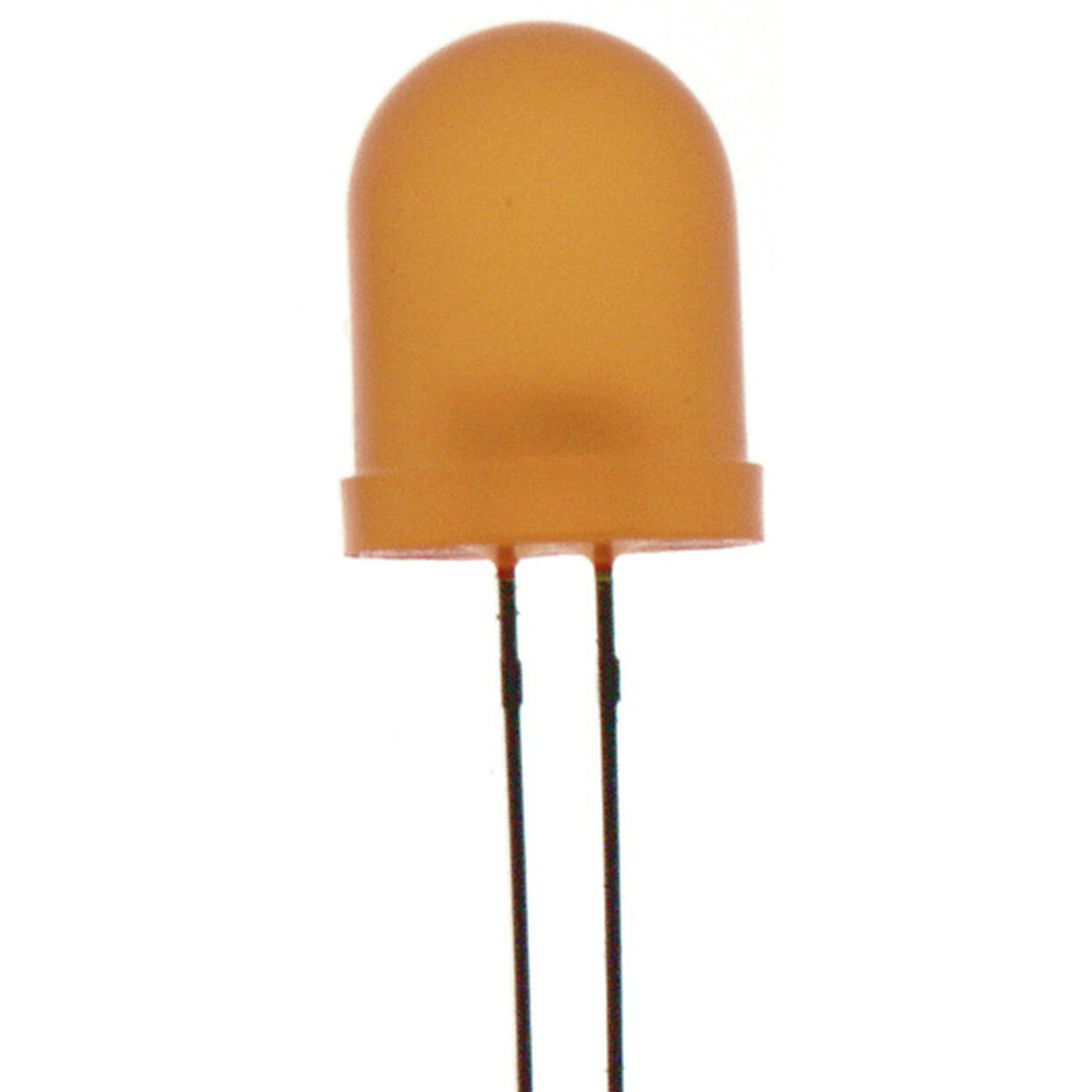

Orange 3mm LED 40mcd Round Diffused
- Cat No:
- ZD0119
In Stock
$0.40
Description
Orange 3mm LED 40mCd Round Diffused
Specifications
- LED Type
- 3mm Standard LED
- Illumination Type
- Single Colour
- Light Colour
- Yellow
- Lens Type
- Diffused
- Light Wavelength
- 625.0nm
- V<sub>f (typ)</sub> - Typical Forward Voltage
- 1.9V
- I<sub>f (typ)</sub> - Typical Forward Current
- 20.0mA
- I<sub>f (max)</sub> - Maximum Forward Current
- 30.0mA
- Intensity
- 35.0mcd
- Viewing Angle
- 45.0°
- Resistor for 5VDC
- 160.0Ω
- Resistor for 9VDC
- 360.0Ω
- Resistor for 12VDC
- 510.0Ω
- Diameter
- 3.0mm
- Packaged Dimensions
- 3.5cm(Length) x 0.35cm(Width) x 0.35cm(Height)
