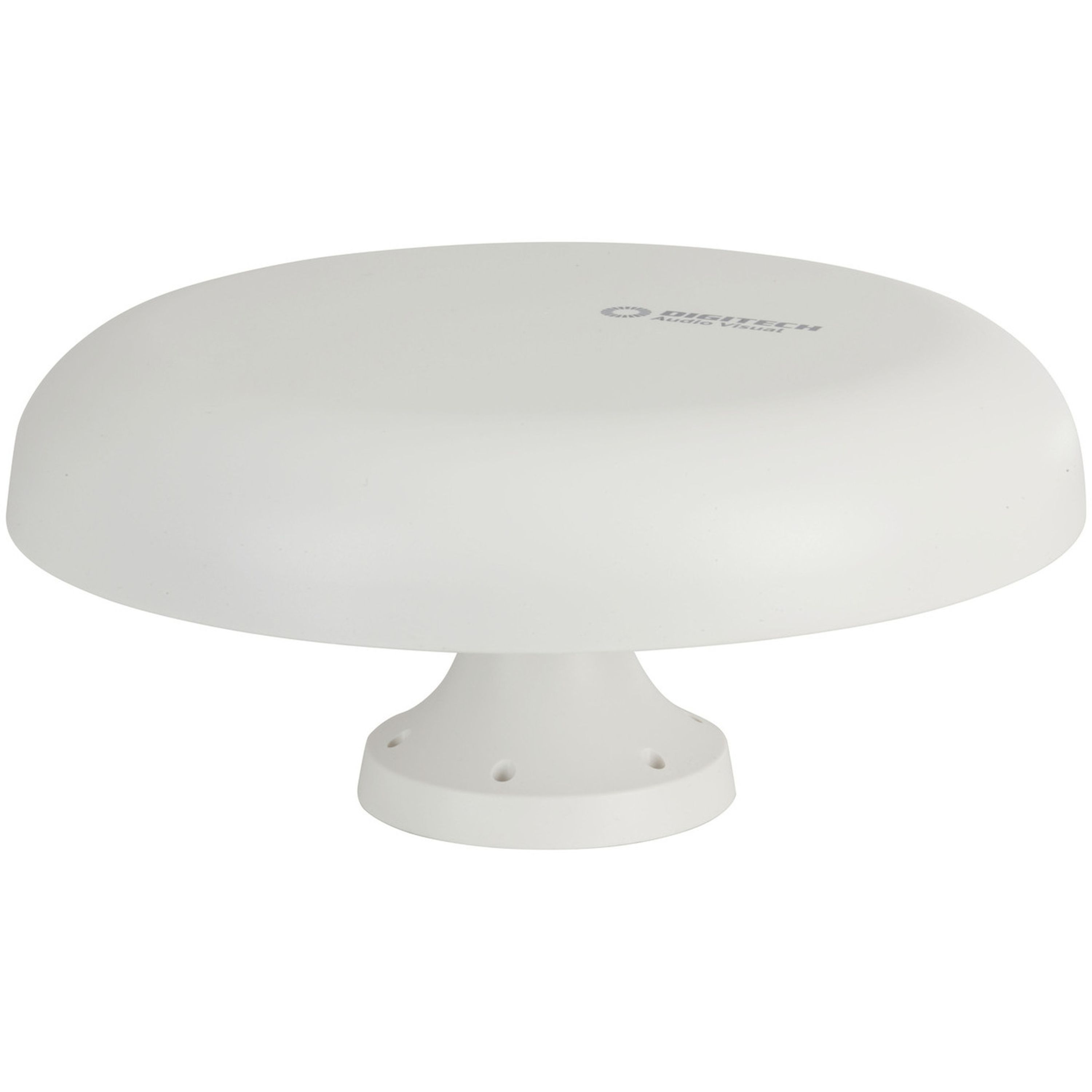

Outdoor Omni-Directional UHF/VHF Amplified Digital Antenna
- Cat No:
- LT3141
Sold as:1 Each
In Stock$129.00
Description

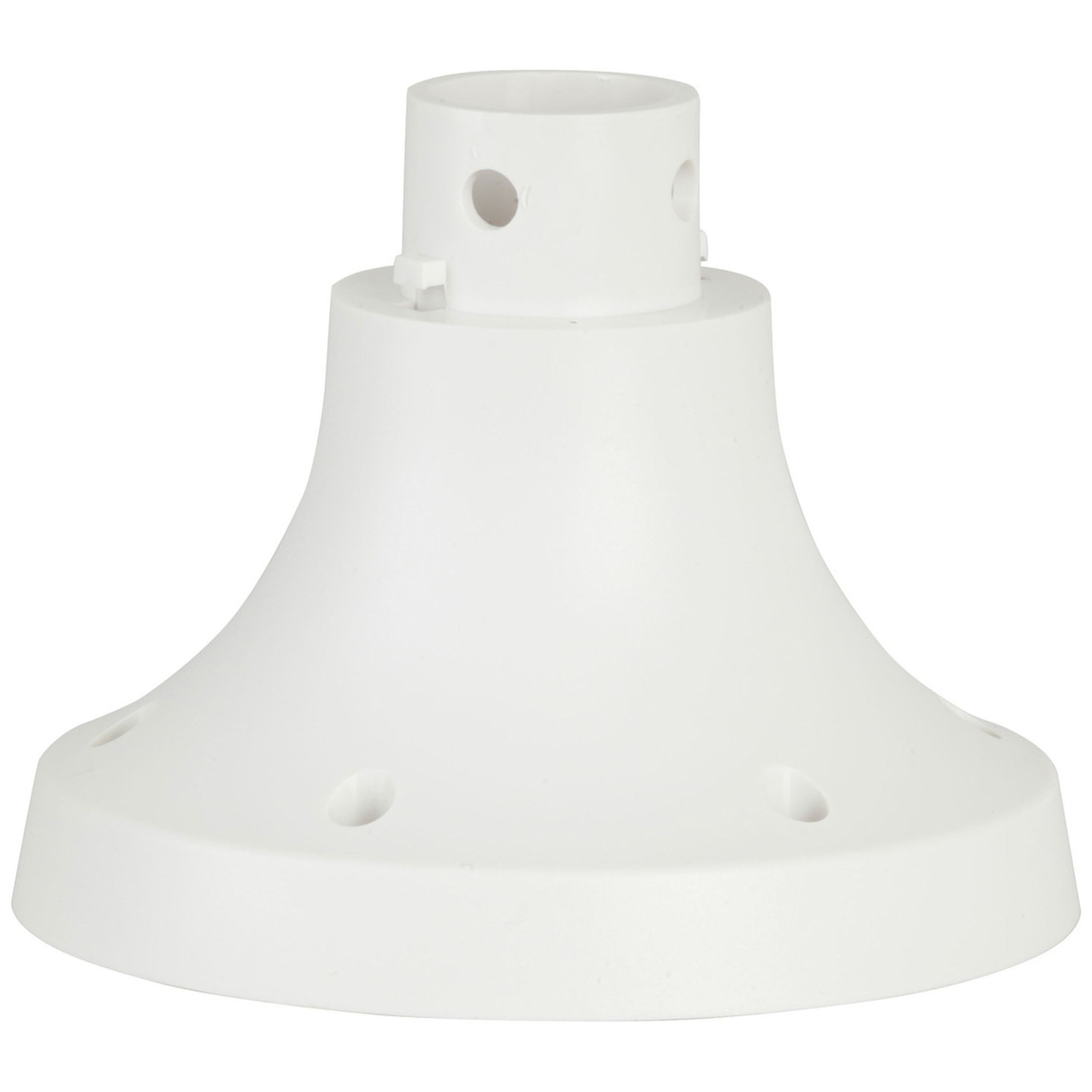

With inbuilt low noise and high gain booster, this compact and weather resistant outdoor digital antenna is ideally suited for caravans, boats, and other fixed or mobile applications where space is constrained or harsh environmental conditions require a little extra durability. Excellent wide frequency reception for local free-to-air analogue and digital TV, DAB+ digital radio as well as FM radio transmissions. It can be either base mounted or mast mounted; and includes mounting bracket, 12V mains power adaptor and a 12V in-car charger.
• SMD technology
• Anti-rust and UV protected
• FM 87.5 - 108MHz
• VHF 174-230MHz
• UHF 470-862MHz
• Output level : Max 108dB
• Impedance: 75 ohms
Specifications
- Usage Location
- Outdoor
- UHF Frequency Range
- 470.0MHz-862.0MHz
- UHF Channel Range
- 69.0ch-69.0ch
- VHF Frequency Range
- 170.0MHz
- VHF Channels Covered
- 12.0ch-12.0ch
- Antenna Assembly
- Pre-assembled
- Height
- 60.0mm
- Diameter
- 350.0mm
- Height
- 70.0mm
- Diameter
- 120.0mm
- Mains Voltage Range
- 12.0V
- Rated for AU Mains
- true
- Mains lead included
- true
- Packaged Dimensions
- 44.5cm(Length) x 44.3cm(Width) x 12.9cm(Height)
