POWERTECH
Panel Mount High Current 50A Connector and Cigarette Lighter Socket
- Cat No:
- PT4477
Sold as:1 Each
In Stock$33.90
Description

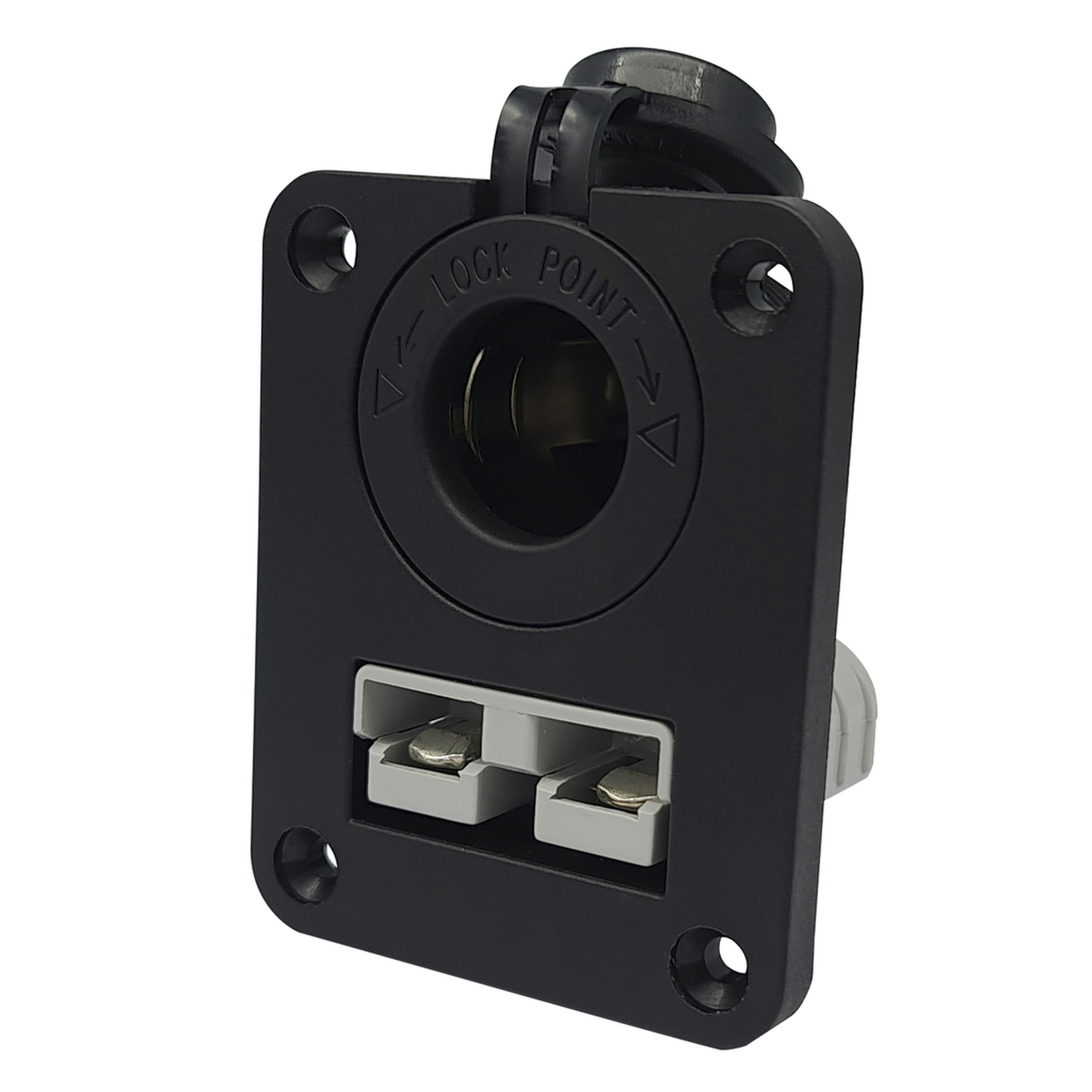

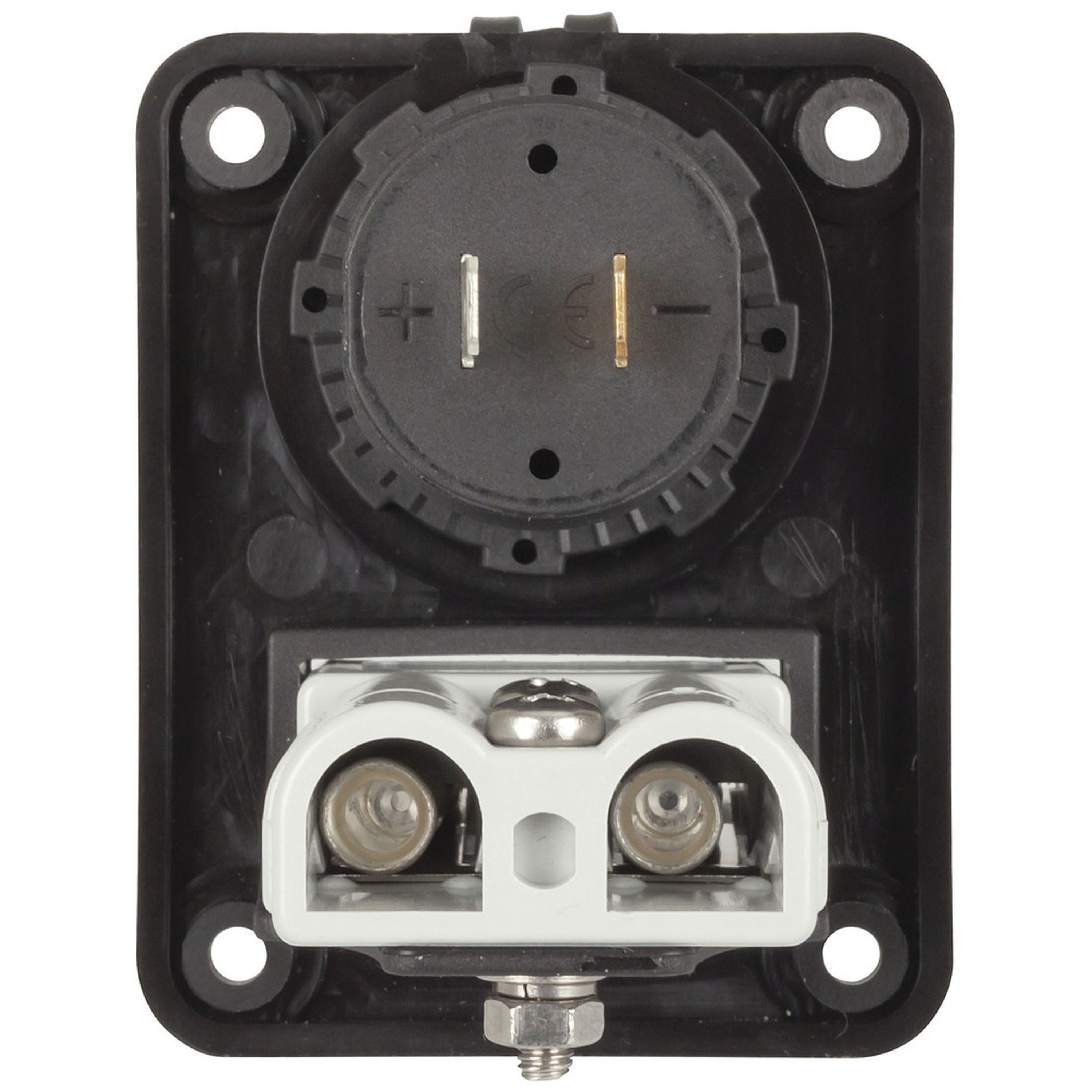

A flush mounting bracket with a recessed 50A battery connector and cigarette socket for mounting into trims and panels.
Features:
• 50A Rated Battery connector
• 10A Marine Cigarette Lighter Socket
• Includes Mounting Hardware
Specifications
- DC Voltage
- 12.0V
- DC current rating
- 60.0A
- Device Type
- Power Cord Plug
- Plug or Socket Type
- IEC C13 Socket (Side)
- Contacts / Pins
- 3-Pin
- Attachment Method
- Solder/Screw
- Case Material
- Thermoplastic
- Contact Material
- Brass
- Cable Entry Diameter
- 8mm
- Dimension details
- Overall Dimensions
- Width
- 60.0mm
- Height
- 75.0mm
- Depth
- 48.0mm
- Weight
- 80.0g
- Dimension details
- Cutout Dimensions
- Width
- 40.0mm
- Height
- 70.0mm
- Packaged Dimensions
- 10.3cm(Length) x 6.5cm(Width) x 5.8cm(Height)
