MEAN WELL

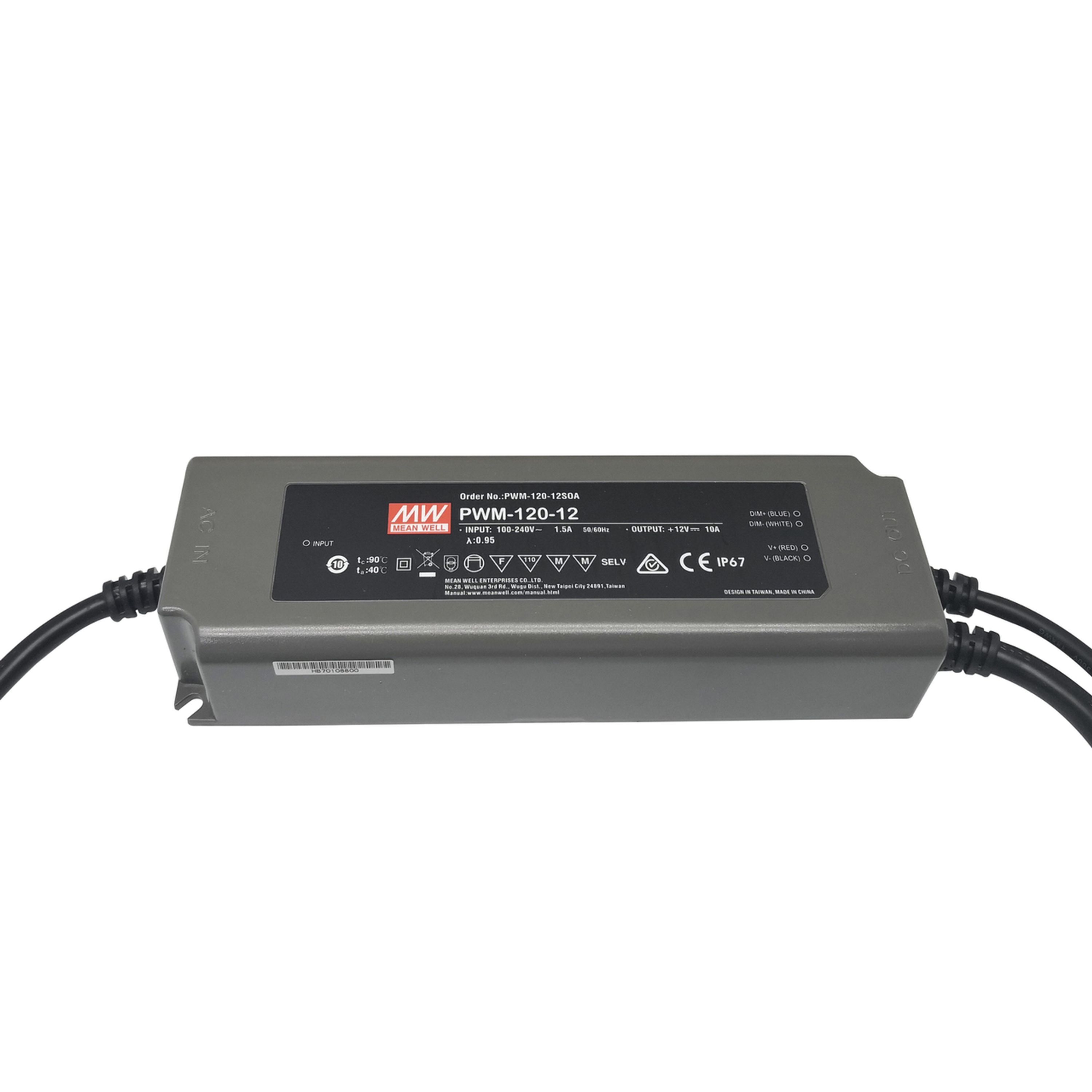

PSU LED 12V 120W 10A MW PWM-120-12
- Cat No:
- MP4180
- MPN:
- PWM-120-12AU
Sold as:1 Each
Out of Stock$159.00
Description
120W AC/DC constant voltage LED power supply with PWM output.
Includes a customised input lead.
Features:
Constant Voltage PWM Design
Short Circuit, Overload and Overvoltage Protection
Plastic Housing with Class II Design
No Load Power Consumption <0.5W
IP67 Rated
5 Year Warranty
Specifications:
Output Voltage: 12VDC
Current: 10A
Power: 120W
Dimming Range: 0-100%
Input Voltage: 90-305VAC, 127-431VDC
Input Frequency: 47-63Hz
Inrush Current: 60A@230VAC
Working Temperature: -40 to 90 Degrees Celsius
Dimensions: 191(L) x 63(W) x 37.5(H)mm
Specifications
- Packaged Dimensions
- 28.3cm(Length) x 14.9cm(Width) x 5.3cm(Height)
