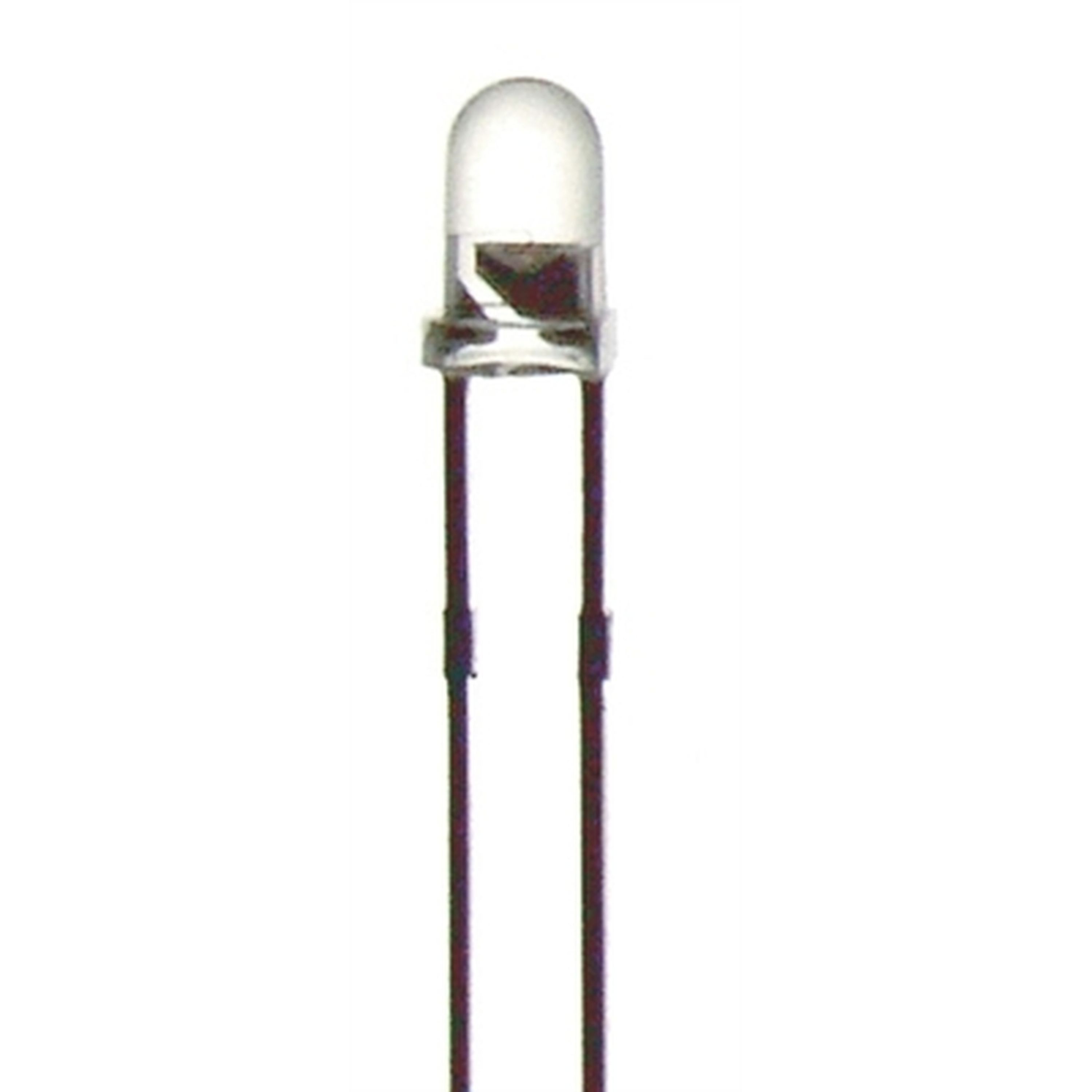

Red 3mm LED 1500mcd Round Clear
- Cat No:
- ZD0102
In Stock
$0.90
Description
Red 3mm LED round clear.
Specifications
- LED Type
- 3mm Standard LED
- Illumination Type
- Single Colour
- Light Colour
- Red
- Lens Type
- waterclear
- Light Wavelength
- 660nm
- V<sub>f (typ)</sub> - Typical Forward Voltage
- 1.8V
- I<sub>f (typ)</sub> - Typical Forward Current
- 20mA
- I<sub>f (max)</sub> - Maximum Forward Current
- 30mA
- Intensity
- 1500mcd
- Viewing Angle
- 15°
- Resistor for 5VDC
- 160Ω
- Resistor for 9VDC
- 360Ω
- Resistor for 12VDC
- 510Ω
- active connector type
- Solder Legs
- Diameter
- 3mm
- Packaged Dimensions
- 3.5 x 0.35 x 0.35 cm
