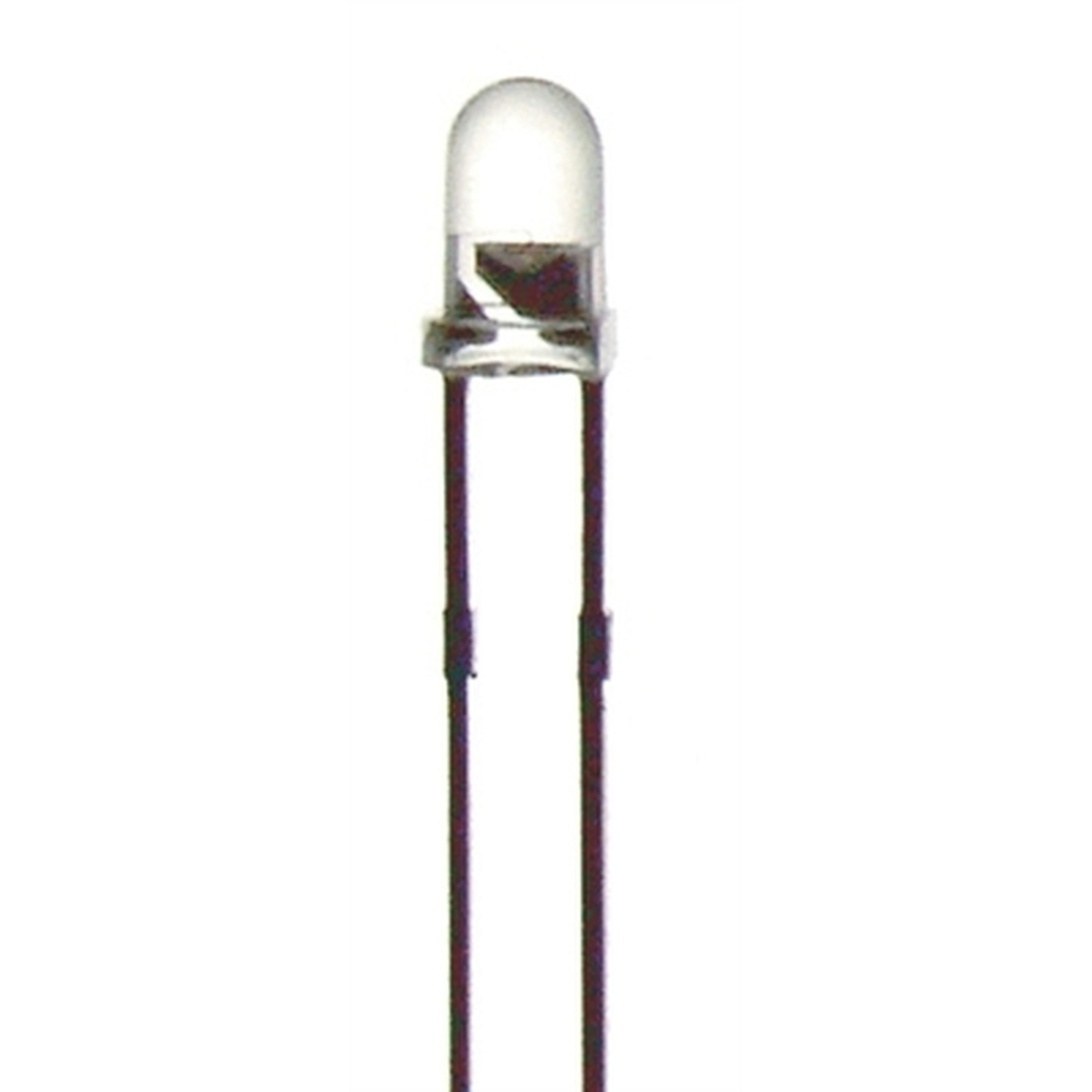

Red 3mm LED 2800mcd Round Clear
- Cat No:
- ZD0104
In Stock
$1.50
Description
Red 3mm LED round clear.
Specifications
- LED Type
- 3mm Standard LED
- Illumination Type
- Single Colour
- Light Colour
- Red
- Lens Type
- waterclear
- Light Wavelength
- 625.0nm
- V<sub>f (typ)</sub> - Typical Forward Voltage
- 2.0V
- I<sub>f (typ)</sub> - Typical Forward Current
- 20.0mA
- I<sub>f (max)</sub> - Maximum Forward Current
- 50.0mA
- Intensity
- 2800.0mcd
- Viewing Angle
- 20.0°
- Resistor for 5VDC
- 150.0Ω
- Resistor for 9VDC
- 360.0Ω
- Resistor for 12VDC
- 510.0Ω
- active connector type
- Solder Legs
- Diameter
- 3.0mm
- Packaged Dimensions
- 0.3cm(Length) x 0.3cm(Width) x 3.5cm(Height)
