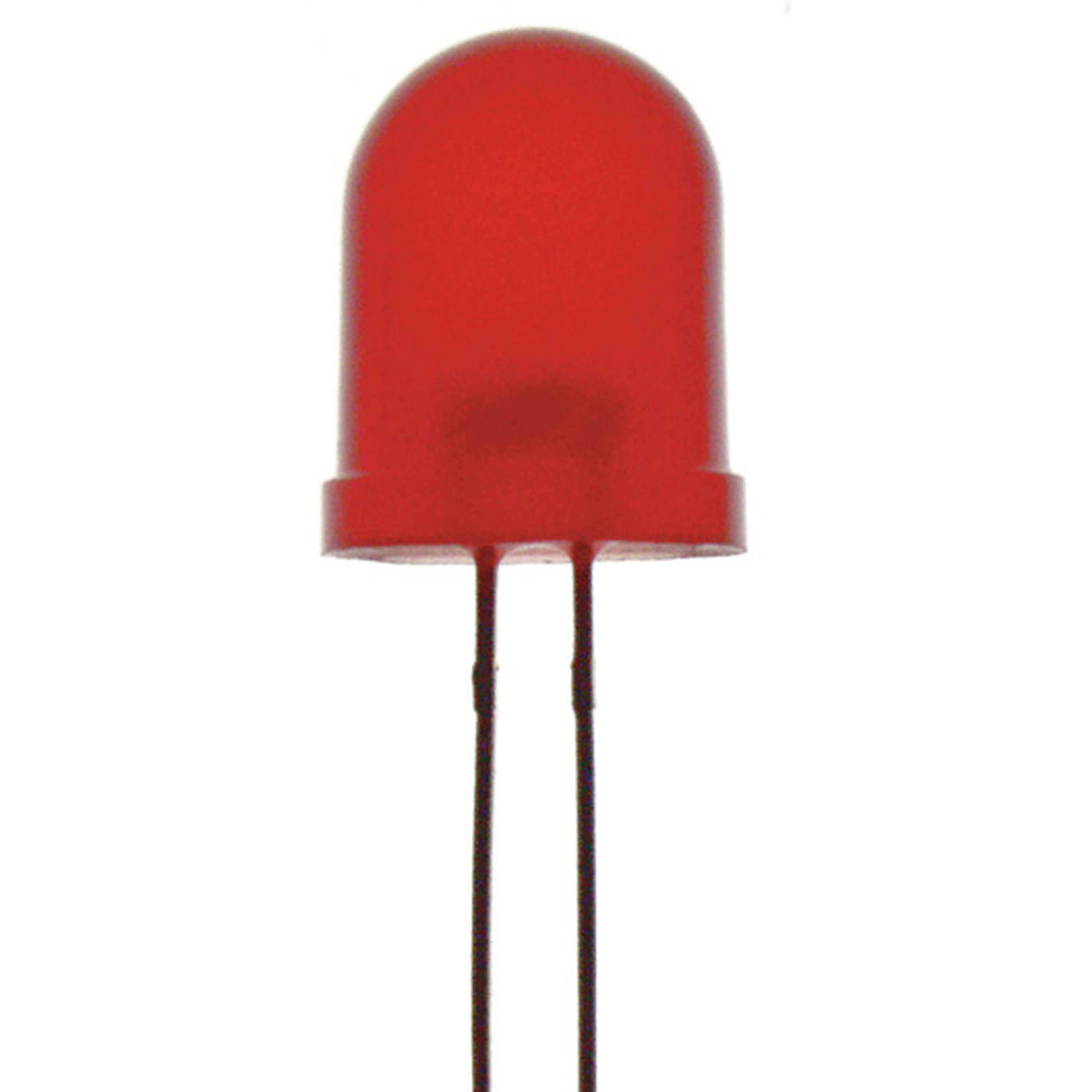

Red 5mm LED 8mcd Round Diffused
- Cat No:
- ZD0150
In Stock
$0.50
Description
Red 5mm LED 8mCd Round Diffused
Specifications
- LED Type
- 5mm Standard LED
- Illumination Type
- Single Colour
- Light Colour
- Red
- Lens Type
- Diffused
- Light Wavelength
- 700.0nm
- V<sub>f (typ)</sub> - Typical Forward Voltage
- 2.3V
- I<sub>f (typ)</sub> - Typical Forward Current
- 20.0mA
- I<sub>f (max)</sub> - Maximum Forward Current
- 30.0mA
- Intensity
- 8.0mcd
- Viewing Angle
- 50.0°
- Resistor for 5VDC
- 130.0Ω
- Resistor for 9VDC
- 330.0Ω
- Resistor for 12VDC
- 470.0Ω
- Diameter
- 5.0mm
- Packaged Dimensions
- 3.5cm(Length) x 0.5cm(Width) x 0.5cm(Height)
