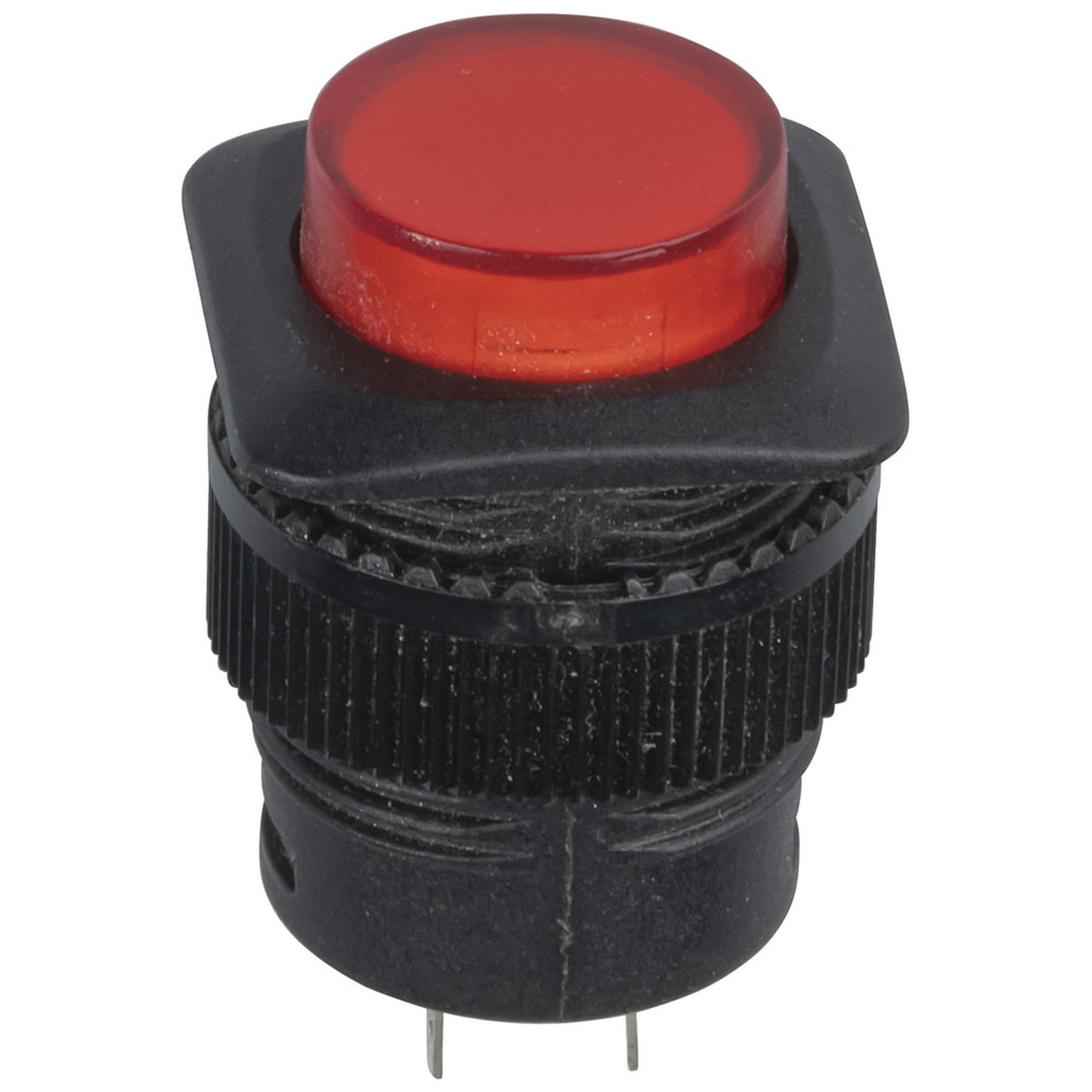

Red LED Illuminated switch
- Cat No:
- SP0706
Sold as:1 Each
In Stock$8.20
Description
These short bodied pushbuttons are available 2 ways. Both have red LEDs behind a red diffused actuator. LED needs 2V. Red illuminated actuator.
Specifications
- Switch Type
- Pushbutton
- Poles / Contacts
- 1.0 pole
- Throws / Positions
- 1.0 pos
- Switch Function
- Momentary
- Mechanism Material
- Plastic
- Switch Colour Coded
- Red
- Pole Throw Type
- SPST
- AC Current Rating
- 1.2A
- LED Type
- LED
- Switch Connection
- Solder Tags
- AC Voltage Rating
- 250.0V
- Illumination Colour
- Red
- Nominal Voltage
- 12.0V
- LED Connection
- Solder Tags
- Length
- 18.0mm
- Width
- 18.0mm
- Height
- 60.0mm
- Diameter
- 18.0mm
- Switch Type
- Pushbutton
- Pole Throw Type
- SPST
- Poles / Contacts
- 1.0 pole
- Throws / Positions
- 1.0pos
- Switch Function
- Single Action Momentary
- Switch Connection
- Solder Legs
- Switch Colour Coded
- Red
- Contact Resistance
- 50.0Ω
- Insulation Resistance
- 100.0Ω
- Dielectric Strength
- 1500.0V
- AC Voltage rating
- 250.0V
- AC current rating
- 1.5A
- Nominal Voltage
- 2.0V-2.0V
- Type
- 5mm Standard LED
- Illumination Colour
- Red
- Connection
- Solder Legs
- Packaged Dimensions
- 11.2cm(Length) x 7.0cm(Width) x 2.3cm(Height)
