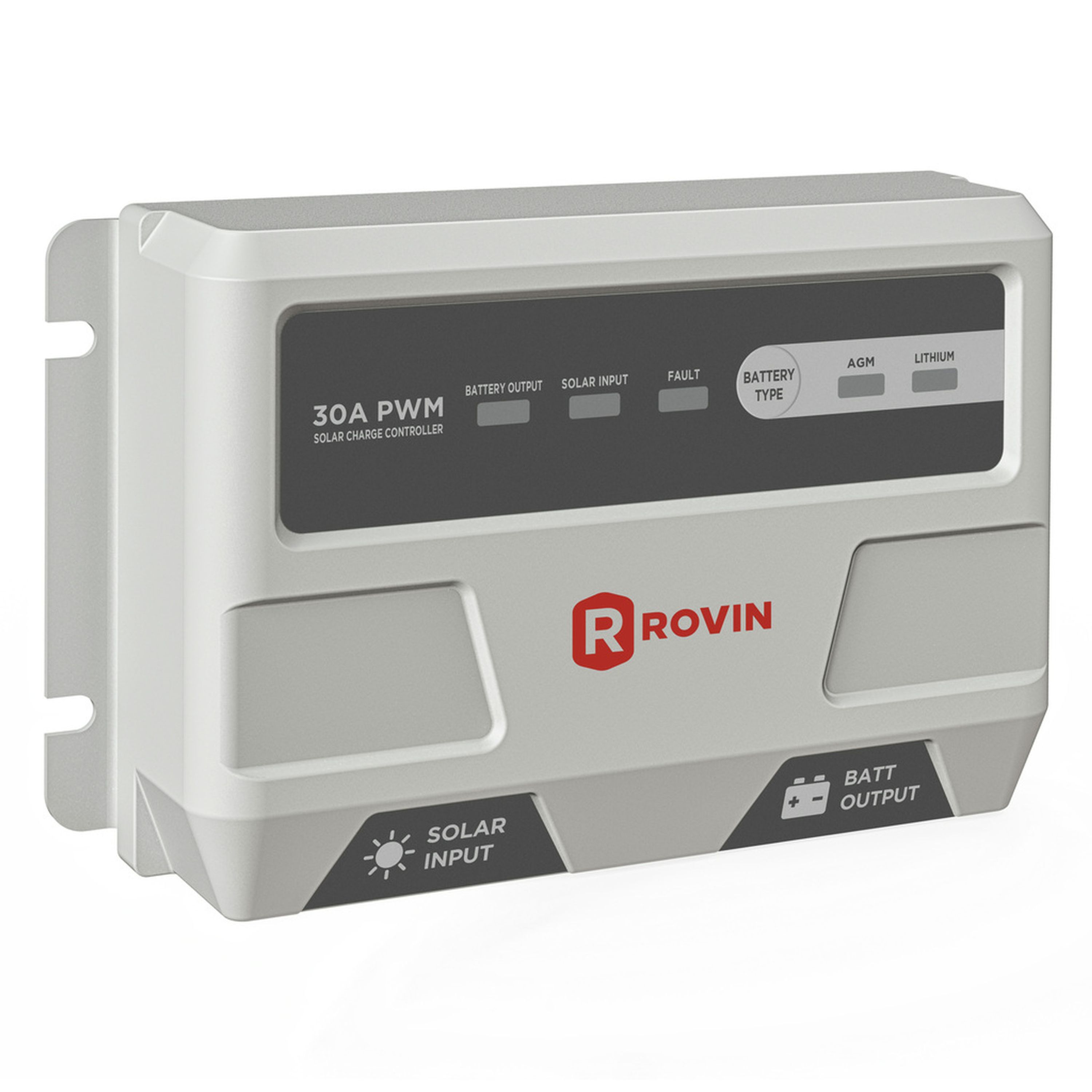

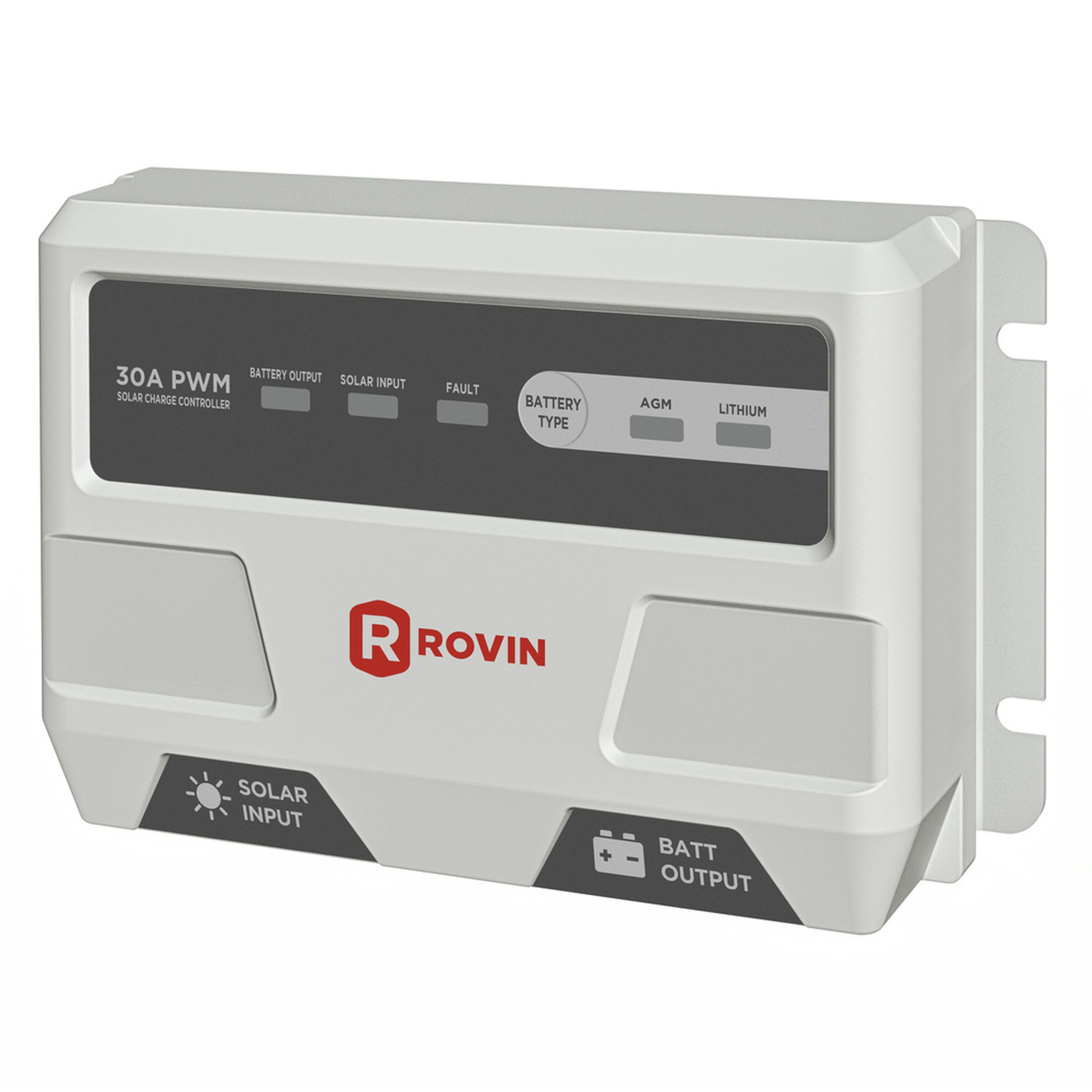

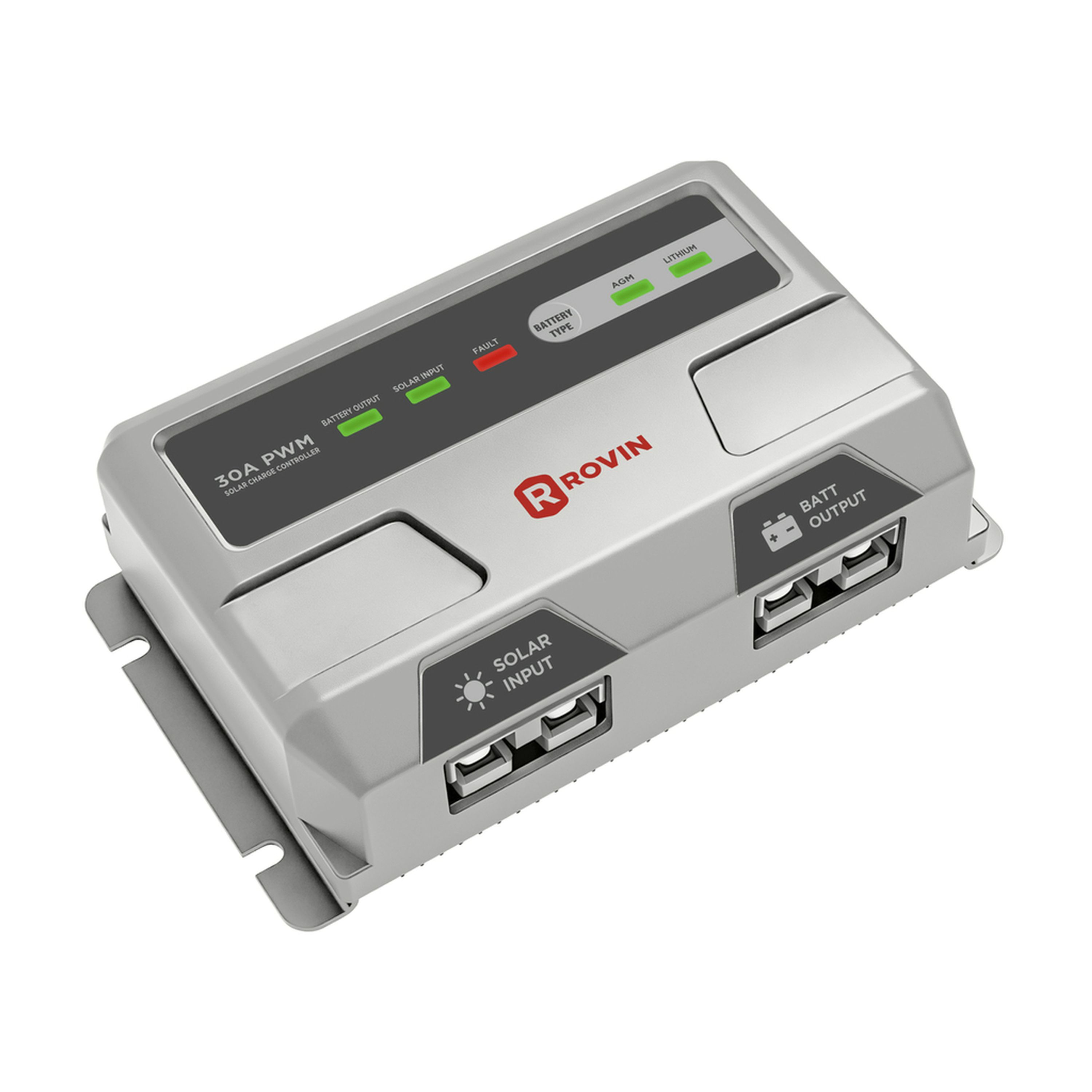

ROVIN Solar Charge Controller 30Amp PWM

This compact charger uses Pulse Width Modulation (PWM) to charge 12V Lithium & Lead Acid (sealed, gel, flooded or AGM) batteries and supports 12V solar arrays up to 390W.

It is recommended for battery capacities 30Ah and above and features three stage charging, including constant current, constant voltage and float charging.

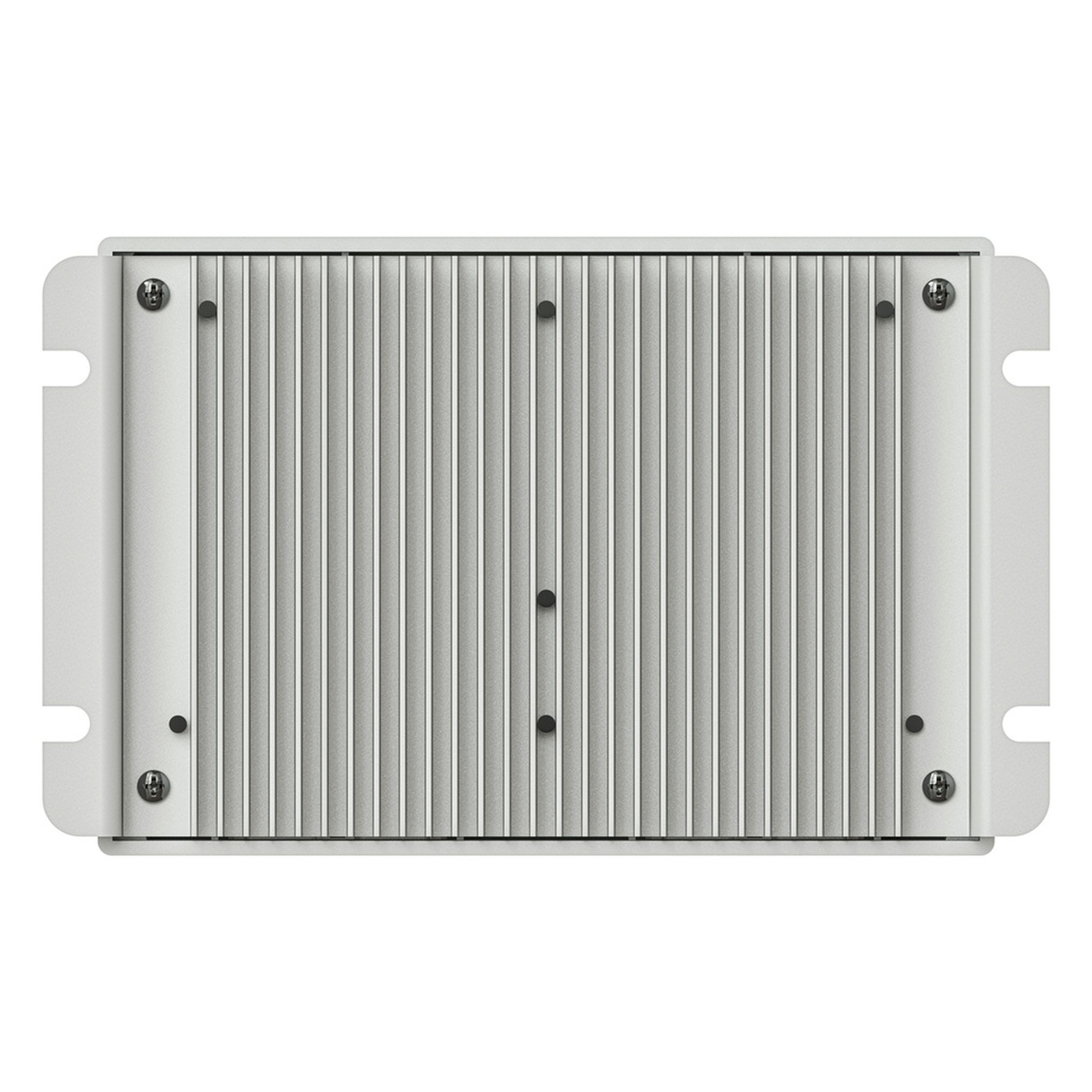

It's equipped with LED indicators to provide info on the status of solar input, battery, fault and battery selection. The fanless design is built into a durable case for permanent installation and high current connectors.

Safety features include over-voltage, low-voltage protection, reverse connection, short-circuit, over-current, and over-temperature protection.

Features:

• PWM control technology
• 3-stage charging
• LED indicators

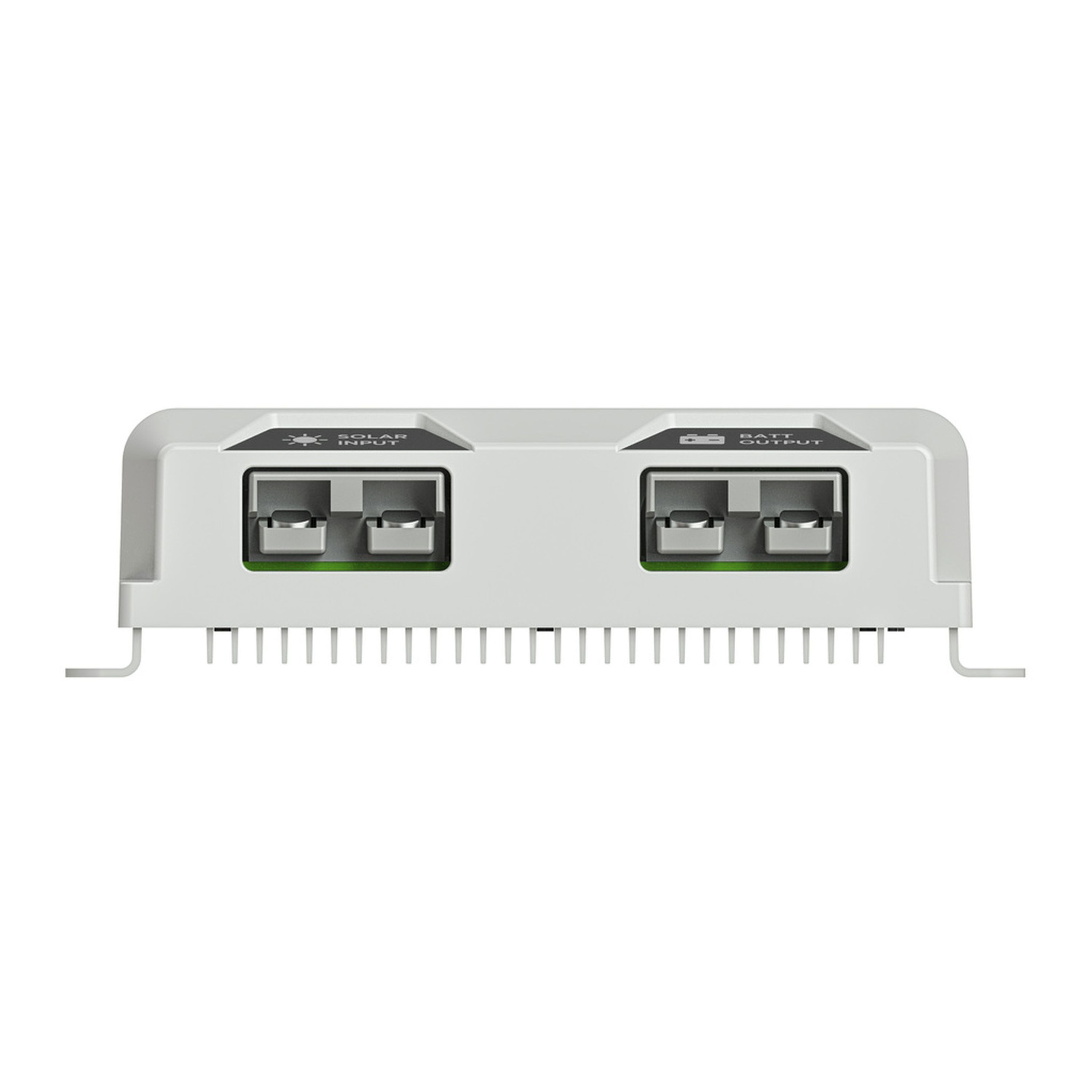

• High-Current Anderson-compatible 50A connectors

Specifications:

• Max input voltage (VOC): 28v
• Output battery voltage range: 8-16v max
• Charge current: 30A
• Battery types: lead sealed, gel, flooded or AGM, LiFePo4

In the box:

• Solar Controller
• Manual

Notes:

Matching grey high-current connectors for your battery and solar panel are sold separately as PT4497 (2-pack), PT4498 (4-pack) and PT4499 (10-pack).

Pre-made extension leads are available as PT4485 (1M), PT4486 (3M), PT4487 (7M) and PT4488 (10M).

To connect solar panels with MC4 Solar connectors, use PS5122.
