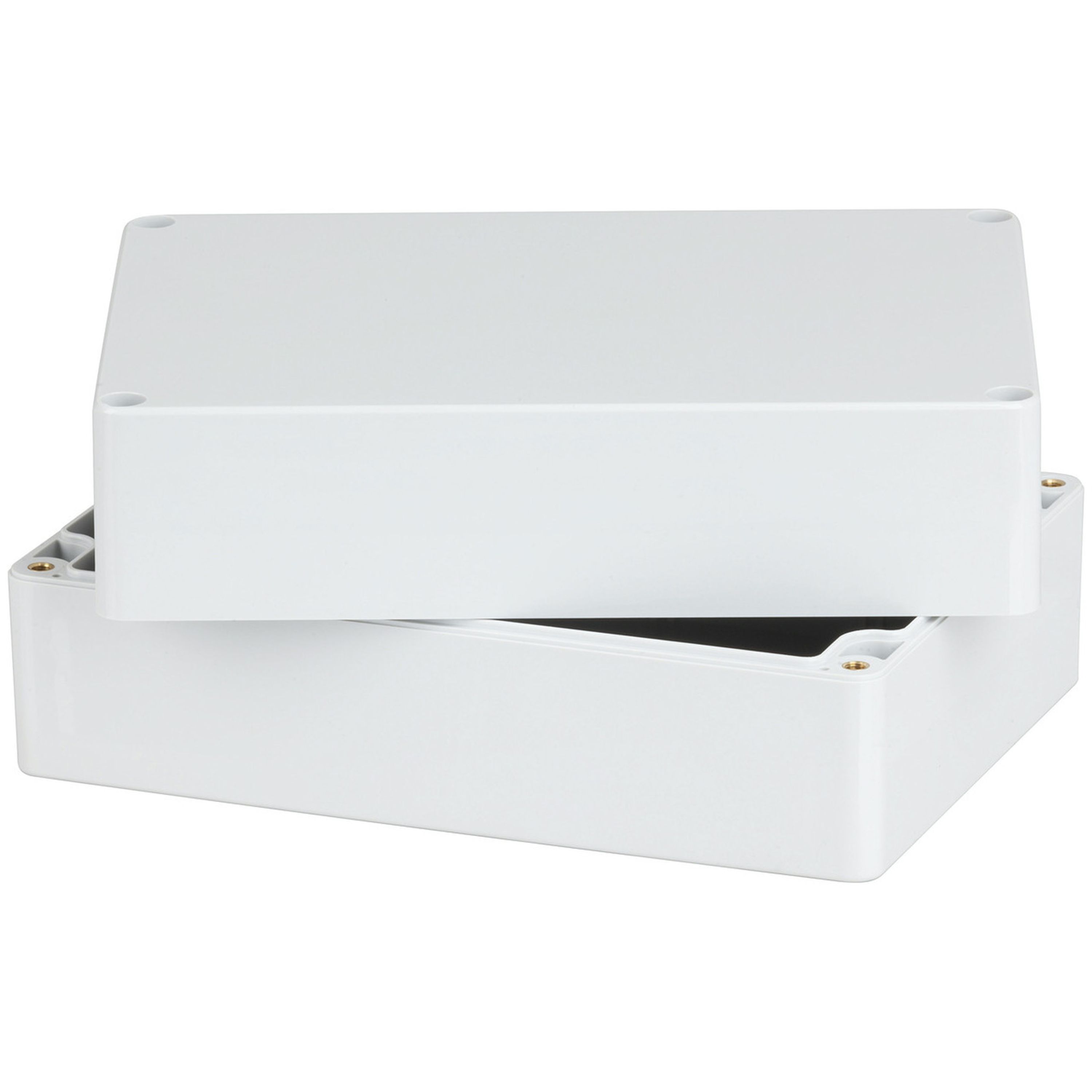

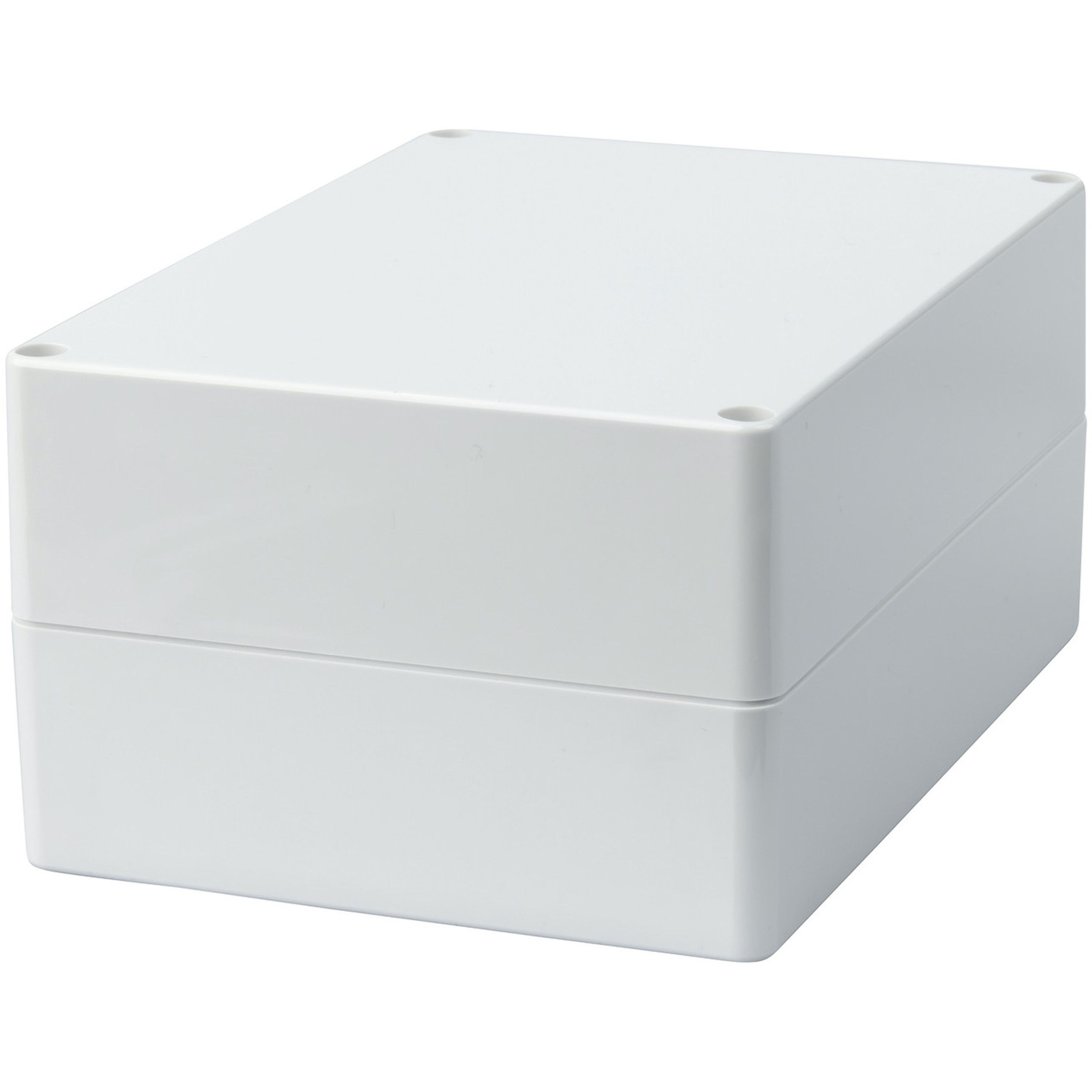

Sealed Polycarbonate Enclosure 171 x 121 x 80
- Cat No:
- HB6224
In Stock
$33.90
Description
Features:
• Made with Polycarbonate material and moulded in light grey.
• Operating temperature : minus 40C to 125C
• The lid and base incorporate a toungue and groove sealing system with a EPDM gasket
• Lid fixing screws are M-4 stainless steel (non metallic) into threaded brass inserts
• Wall mounting holes and lid fixing screws are outside the sealing area thus preventing the ingress of moisture & dust
• Designed to IP65 of IEC 529and NEMA 4 (dust and hoseproof)

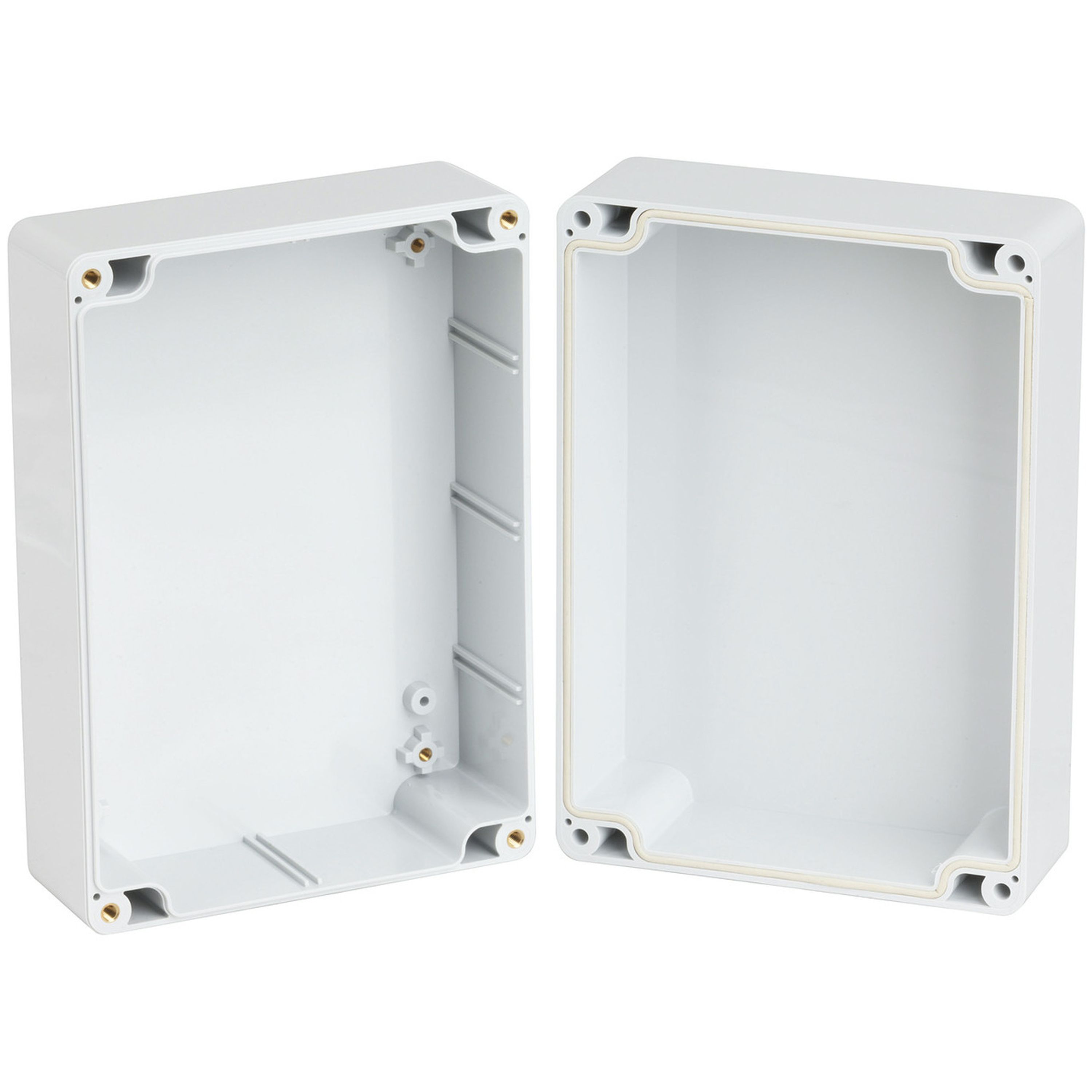

• Internal guide slots for mounting PCB assemblies vertically
• Made with Polycarbonate material and moulded in light grey.
• Operating temperature : minus 40C to 125C
• The lid and base incorporate a toungue and groove sealing system with a EPDM gasket
• Lid fixing screws are M-4 stainless steel (non metallic) into threaded brass inserts
• Wall mounting holes and lid fixing screws are outside the sealing area thus preventing the ingress of moisture & dust
• Designed to IP65 of IEC 529and NEMA 4 (dust and hoseproof)
• Internal guide slots for mounting PCB assemblies vertically
Specifications
- Material
- Polycarbonate
- PCB Internal Guide Slots
- true
- Gasket sealing system
- true
- Lid Screws
- 4.0pc
- Colour
- Light Grey
- IP Rating
- IP65
- Dust/Particle Ingress Protection
- 6 - Dust tight, no ingress of dust
- Liquid/Moisture Ingress Protection
- 5 - Water jets
- Width
- 171.0mm
- Height
- 80.0mm
- Depth
- 121.0mm
- Packaged Dimensions
- 18.1cm(Length) x 14.0cm(Width) x 8.6cm(Height)
