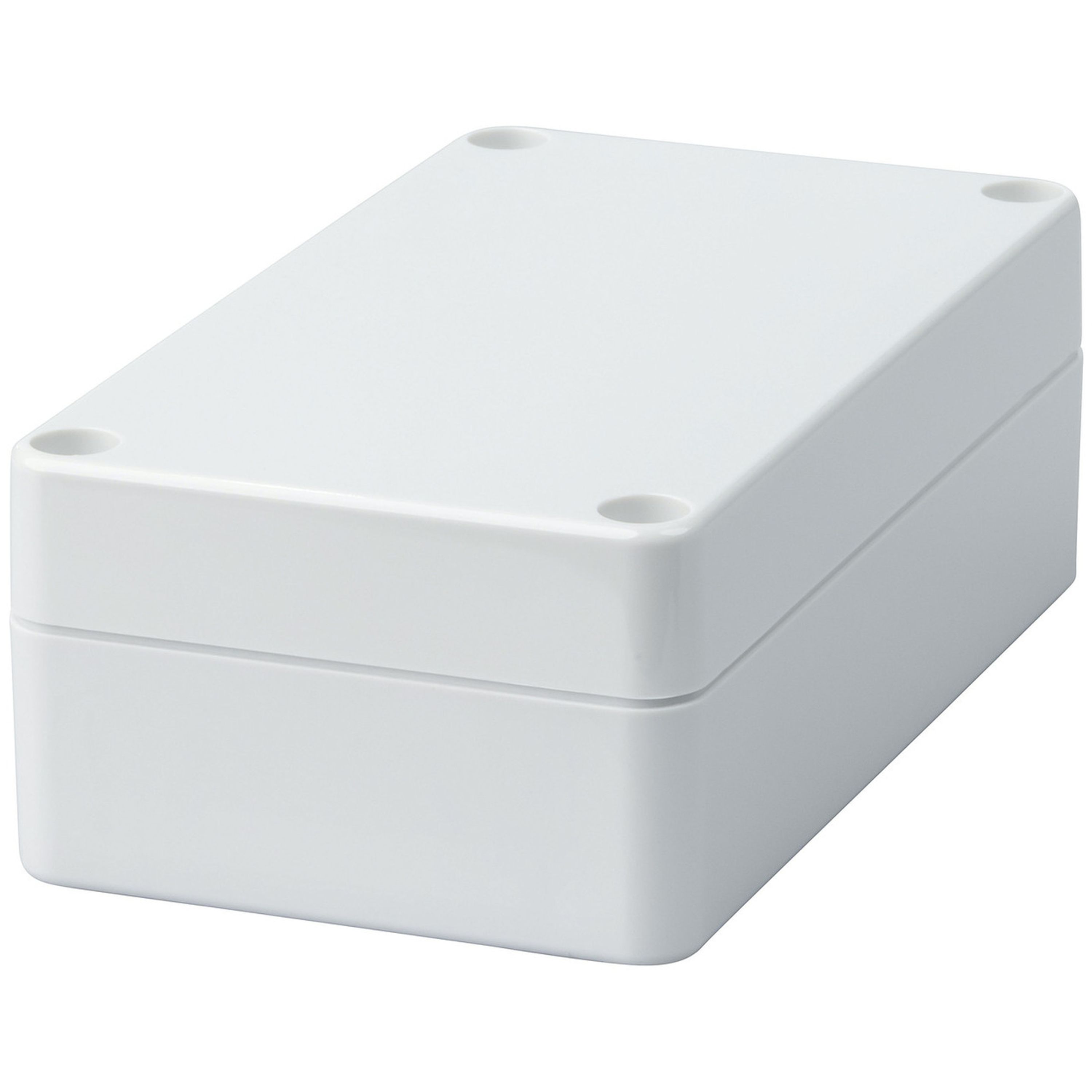

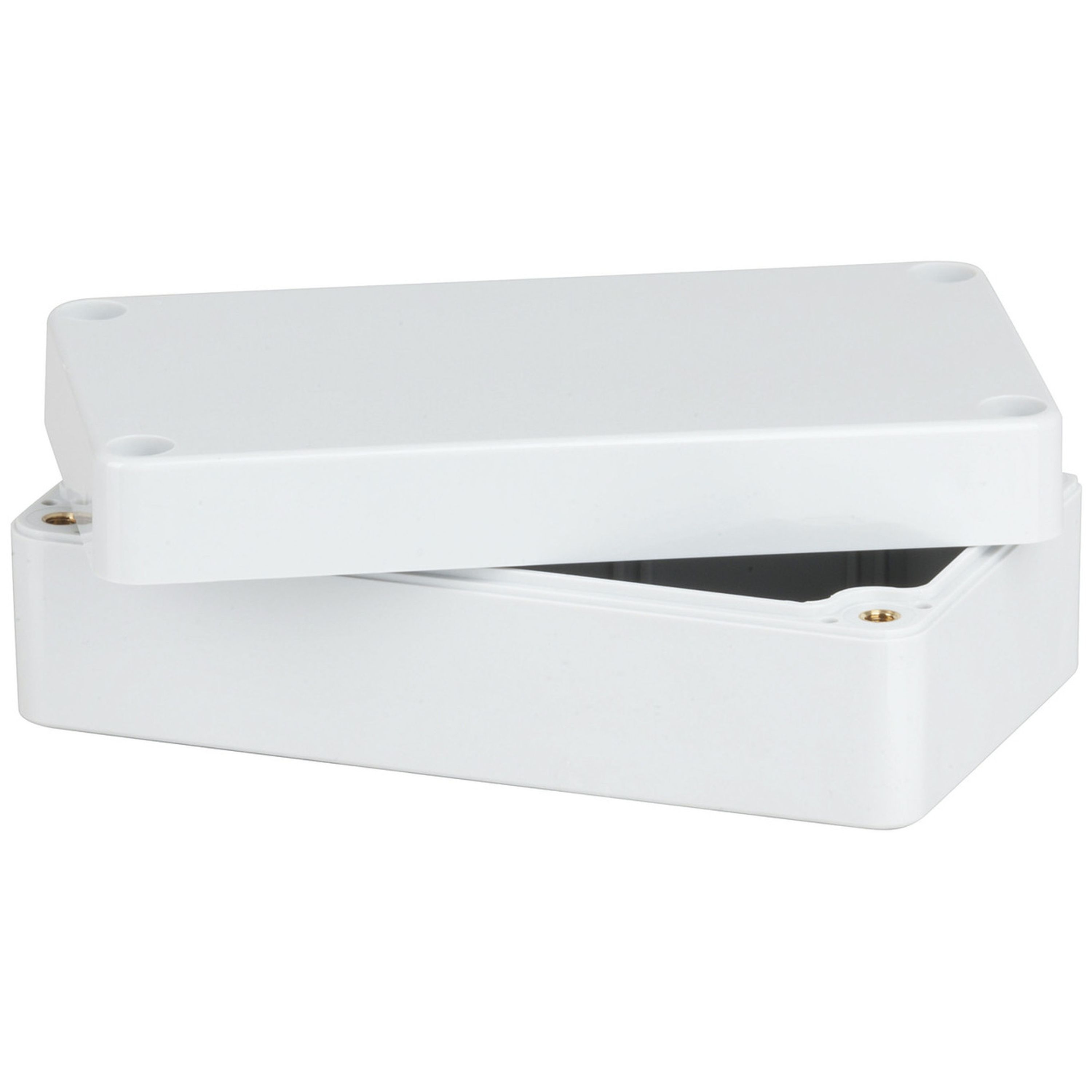

Sealed Polycarbonate Enclosures 115 x 65 x 40
- Cat No:
- HB6212
In Stock
$17.90
Description
Features:
• Made with Polycarbonate material and moulded in light grey.
• Operating temperature : minus 40C to 125C
• The lid and base incorporate a toungue and groove sealing system with a EPDM gasket
• Lid fixing screws are M-4 stainless steel (non metallic) into threaded brass inserts
• Wall mounting holes and lid fixing screws are outside the sealing area thus preventing the ingress of moisture & dust
• Designed to IP65 of IEC 529and NEMA 4 (dust and hoseproof)

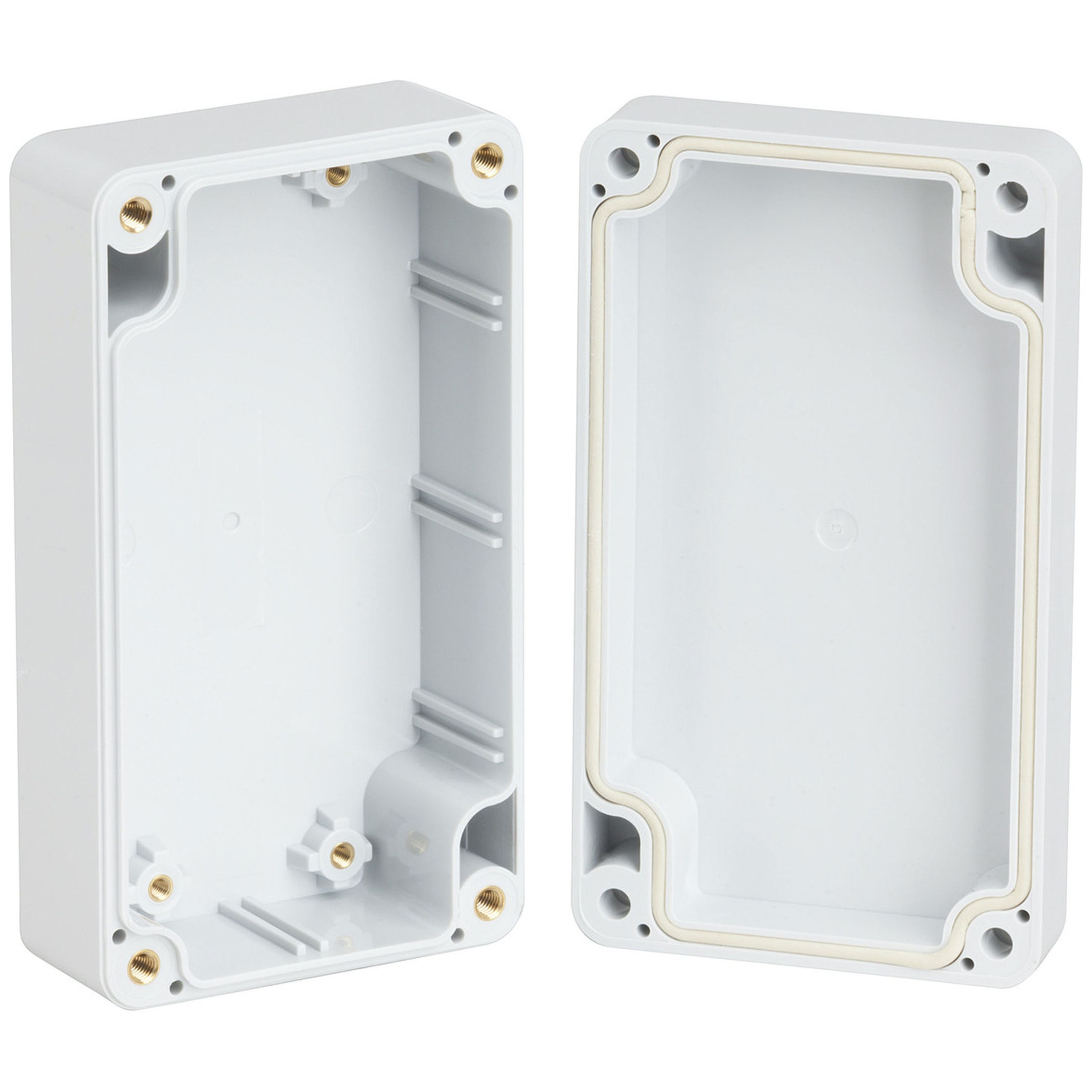

• Internal guide slots for mounting PCB assemblies vertically
• External mounting plate (4pcs) made of thermoplastic are available as an option
• External hinge kit (2pcs) made of thermoplastic are available as an option.
• Dimensions 115x65x40mm
• Made with Polycarbonate material and moulded in light grey.
• Operating temperature : minus 40C to 125C
• The lid and base incorporate a toungue and groove sealing system with a EPDM gasket
• Lid fixing screws are M-4 stainless steel (non metallic) into threaded brass inserts
• Wall mounting holes and lid fixing screws are outside the sealing area thus preventing the ingress of moisture & dust
• Designed to IP65 of IEC 529and NEMA 4 (dust and hoseproof)
• Internal guide slots for mounting PCB assemblies vertically
• External mounting plate (4pcs) made of thermoplastic are available as an option
• External hinge kit (2pcs) made of thermoplastic are available as an option.
• Dimensions 115x65x40mm
Specifications
- Material
- Polycarbonate
- Lid Screws
- 4.0pc
- Colour
- Light Grey
- IP Rating
- 65.0
- Length
- 115.0mm
- Width
- 65.0mm
- Height
- 40.0mm
- Packaged Dimensions
- 13.2cm(Length) x 8.4cm(Width) x 4.3cm(Height)
