SPDT 250V 5A Standard Micro Switch with Lever
- Cat No:
- SM1039
Sold as:1 Each
In Stock$4.90
Description
SPDT ON-ON. QC tab termination (6.4mm).
Power Ratings:
5A @ 125VAC and 2.5A @ 250VAC
Power Ratings:
5A @ 125VAC and 2.5A @ 250VAC
Specifications
- Switch Type
- Micro
- Pole Throw Type
- SPST
- Poles / Contacts
- 1.0 pole
- Throws / Positions
- 1.0pos

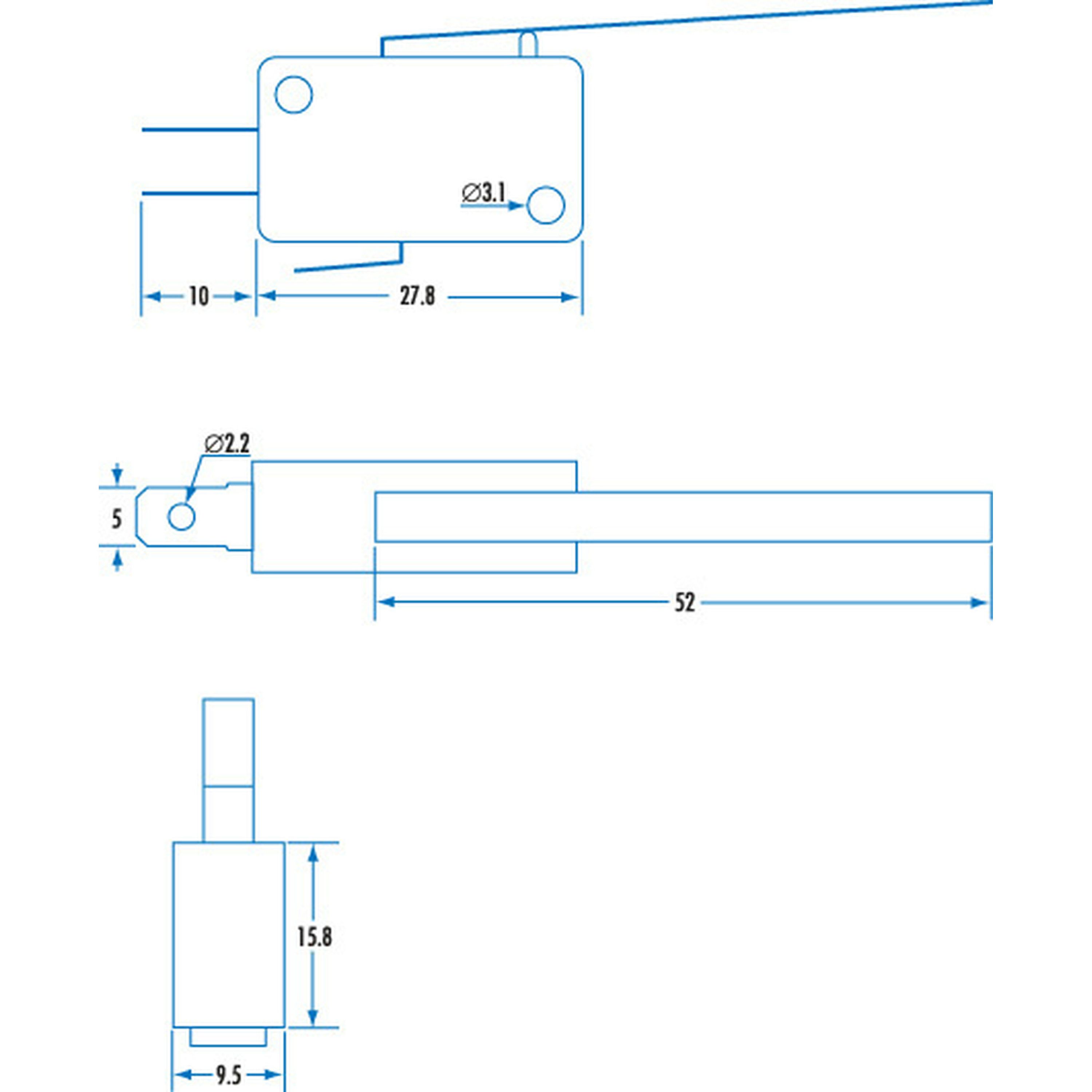

- Actuator Length
- 51.3mm
- DC Voltage
- 250.0V
- DC current rating
- 5.0A
- Packaged Dimensions
- 2.0cm(Length) x 1.0cm(Width) x 7.4cm(Height)
