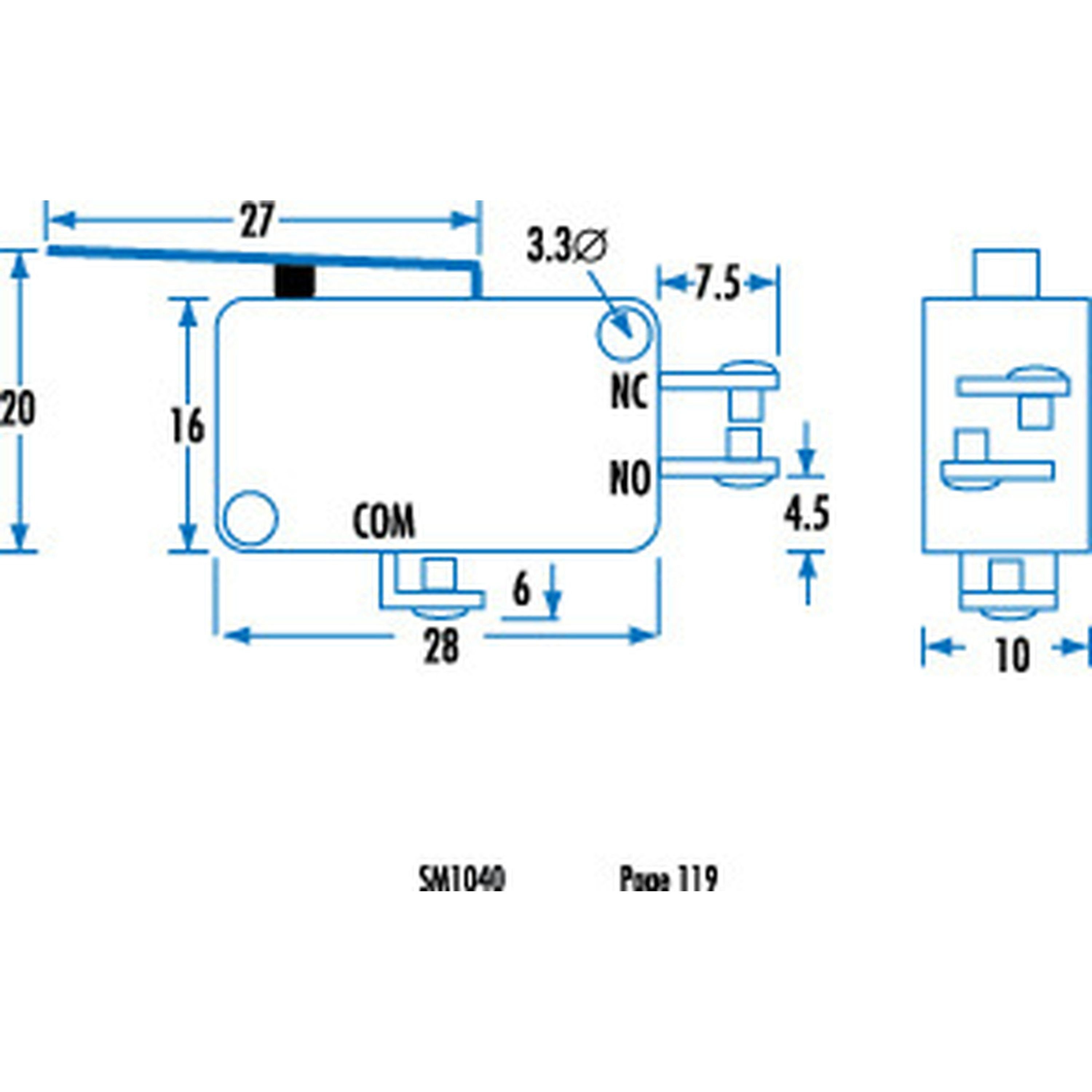

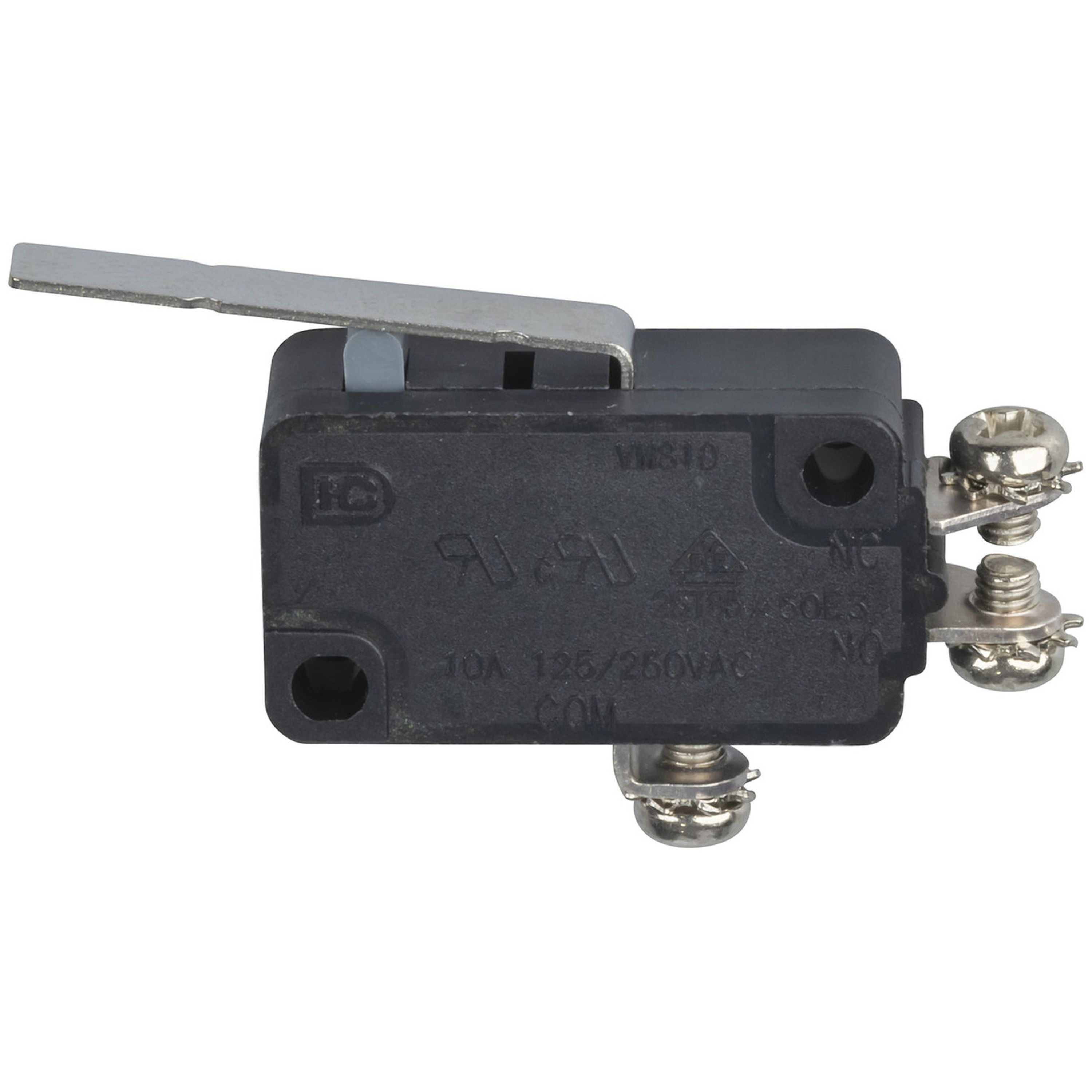

SPDT 250VAC 10A Micro Switch with Lever
- Cat No:
- SM1040
Sold as:1 Each
In Stock$4.90
Description
Can be used for either push on or push off momentary SPDT.
Specifications
- Switch Type
- Micro
- Pole Throw Type
- SPDT
- Poles / Contacts
- 1.0 pole
- Throws / Positions
- 2.0pos
- Actuator Length
- 27.0mm
- AC Voltage rating
- 240.0V
- AC current rating
- 10.0A
- Length
- 28.0mm
- Width
- 16.0mm
- Depth
- 10.0mm
- Packaged Dimensions
- 3.4cm(Length) x 2.2cm(Width) x 1.1cm(Height)
