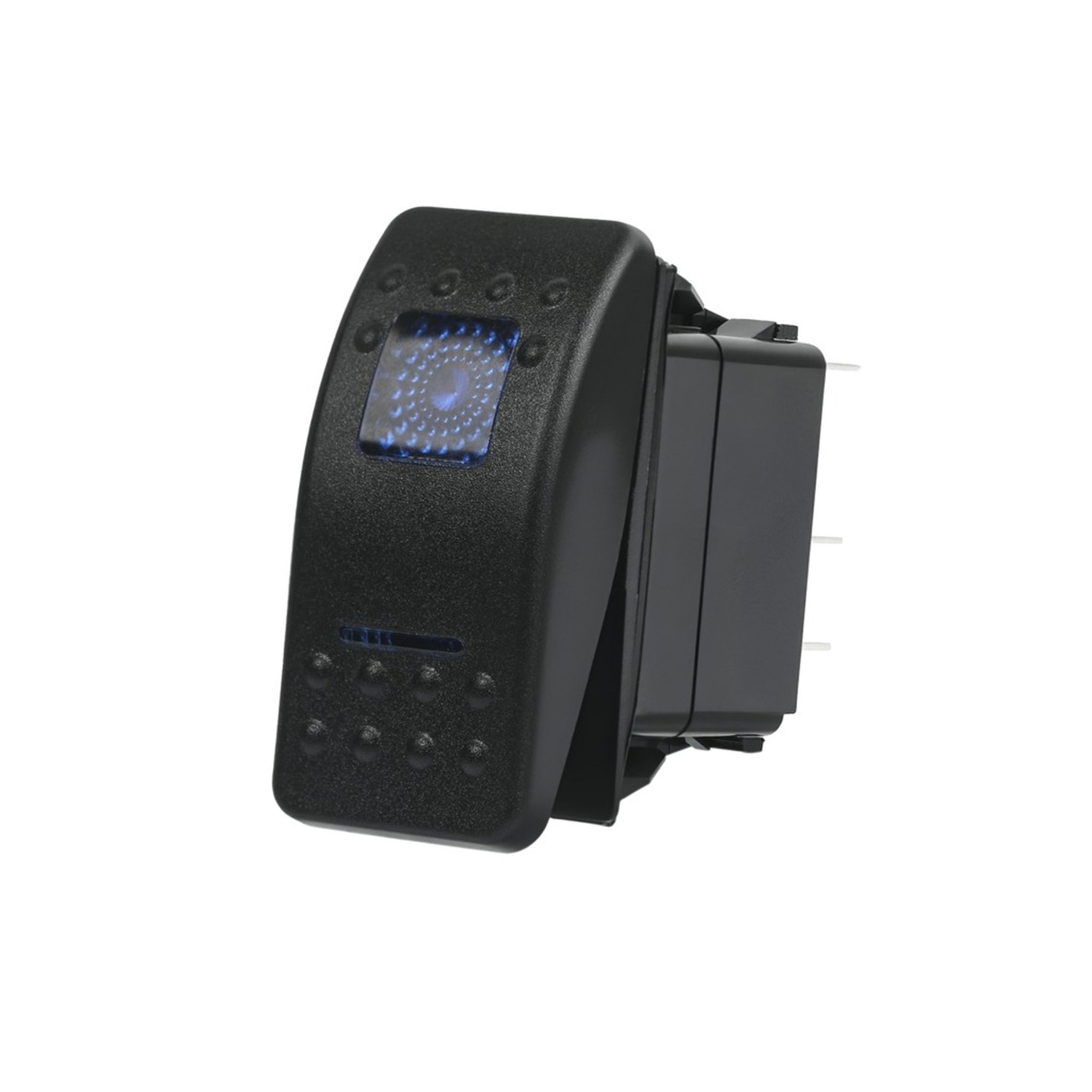

SPDT Dual Illuminated Rocker Switch with Labels and Interchangeable Covers - Blue
- Cat No:
- SK0914
Sold as:1 Each
In Stock$19.90
Description

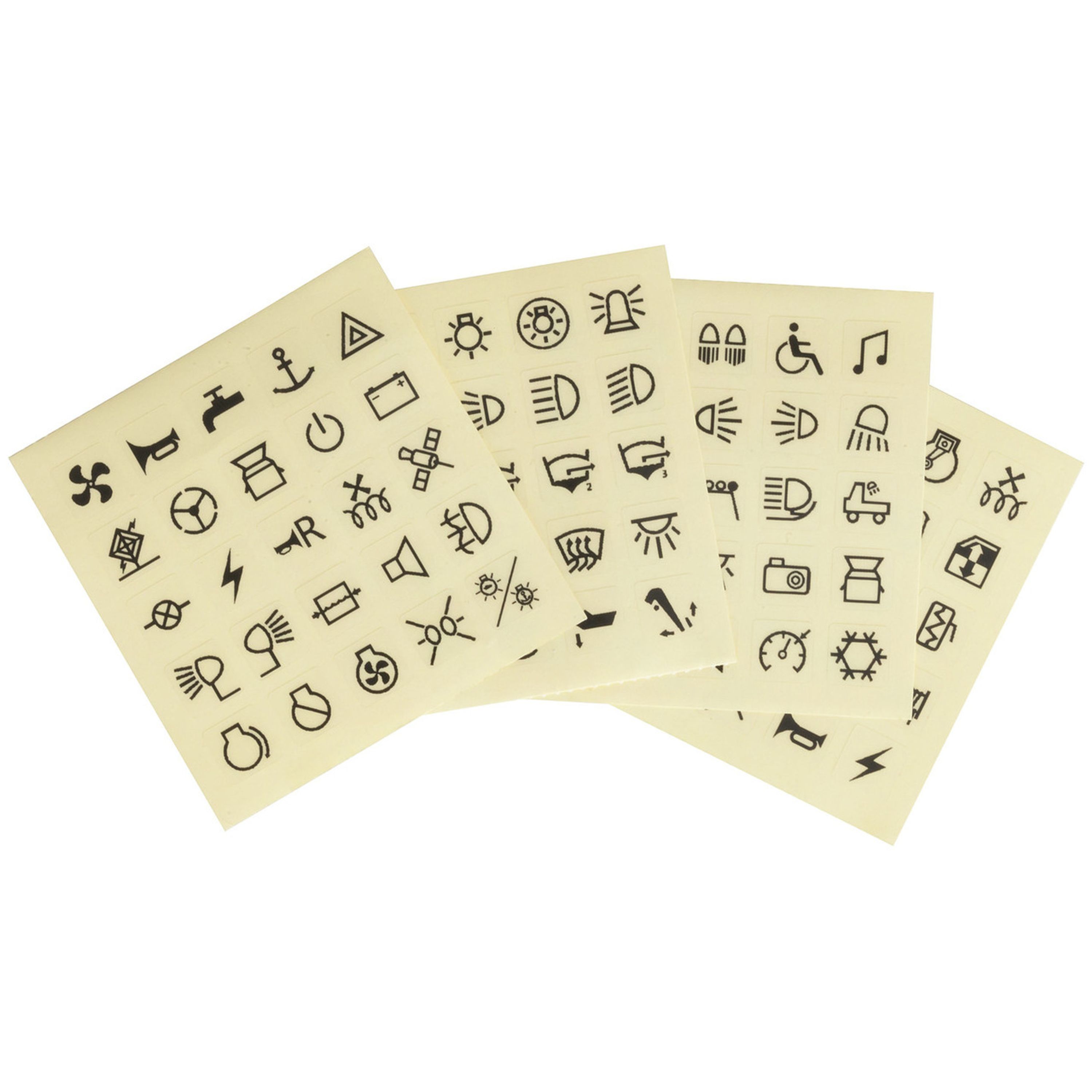

These are the superb looking rocker switches that you have seen in the cockpits of the 70-100ft luxury motor cruisers recently. They would look great in your 4WD, RV, Caravan or any other application as well. The base switch supplied (rated at 12V 20A, 24V 10A) comes with a double-LED illumination (low in OFF, high in the ON position), a standard rocker cover and a standard range of decals to customise the switch to your application. Typical decals are symbols for: windscreen wipers, horn, heater, etc; there are dozens of these decals included.
Also available are a set of special laser-etched covers with the following graphic symbols to really create a professional finish. You need to buy the basic switch (in blue, white or red illumination) and then the custom cover (if required.)
Switches
SK-0910 SPDT Rocker - White
SK-0912 SPDT Rocker - Red
SK-0914 SPDT Rocker - Blue
SK-0916 SPDT Rocker - Orange
Laser-etched rockers
SK-0920 "12V Power"
SK-0921 "Fridge"
SK-0922 "Aux Battery"
SK-0923 "Camper Power"
SK-0924 "Spot Lights"
SK-0925 "Horn"
SK-0926 "Rear View Camera"
Also available are a set of special laser-etched covers with the following graphic symbols to really create a professional finish. You need to buy the basic switch (in blue, white or red illumination) and then the custom cover (if required.)
Switches
SK-0910 SPDT Rocker - White
SK-0912 SPDT Rocker - Red
SK-0914 SPDT Rocker - Blue
SK-0916 SPDT Rocker - Orange
Laser-etched rockers
SK-0920 "12V Power"
SK-0921 "Fridge"
SK-0922 "Aux Battery"
SK-0923 "Camper Power"
SK-0924 "Spot Lights"
SK-0925 "Horn"
SK-0926 "Rear View Camera"
Specifications
- Switch Type
- Rocker
- Mechanism Material
- Plastic
- Switch Connection
- Spade Terminals
- Switch Colour Coded
- Blue
- Nominal Voltage
- 12V
- Illumination Colour
- Blue
- LED Connection
- Spade Terminals
- LED Type
- LED
- Illumination Position
- Internal
- Switch Function
- Locking On/Off

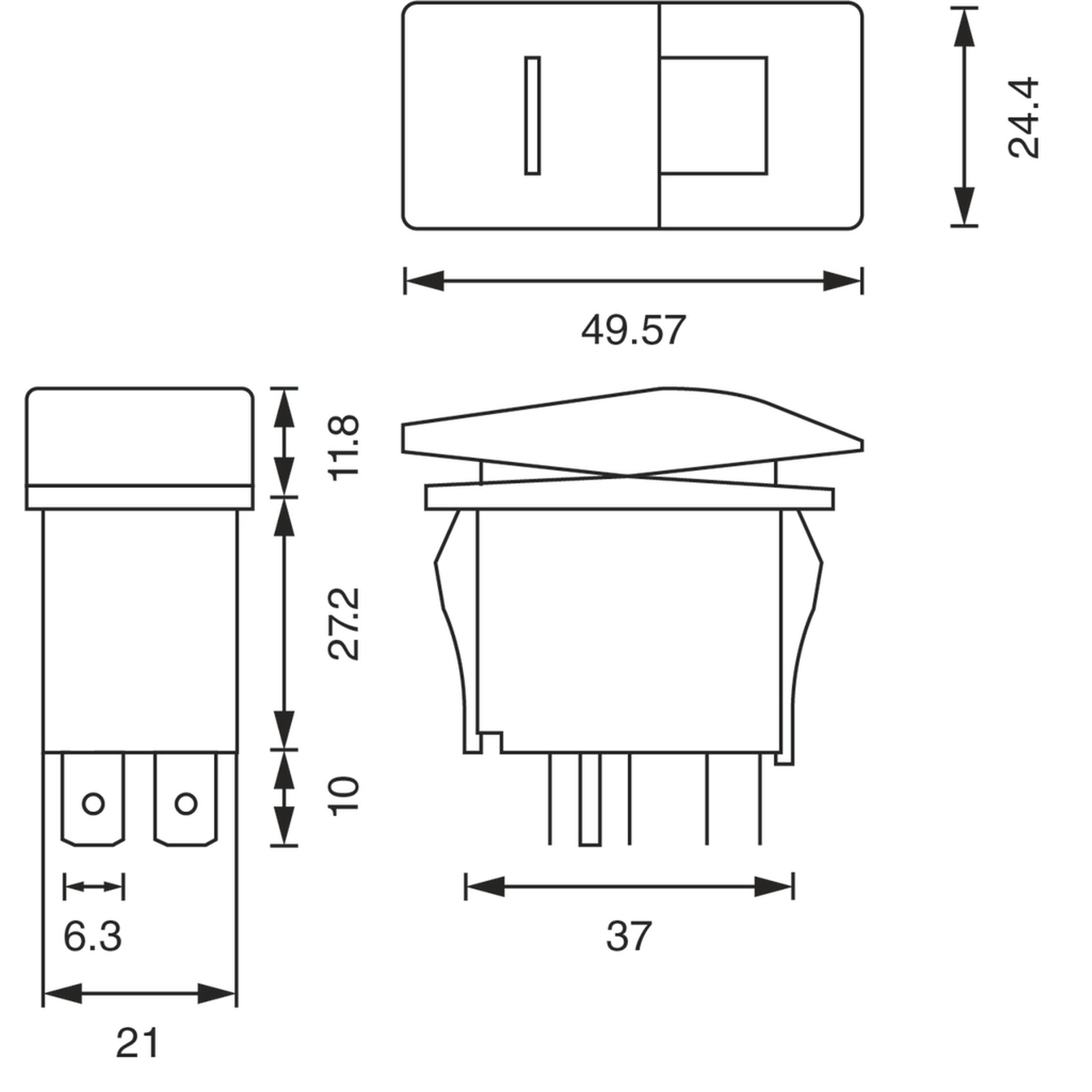

- Length
- 49.6mm
- Width
- 24.4mm
- Height
- 49.0mm
- Switch Type
- Rocker
- Pole Throw Type
- SPDT
- Poles / Contacts
- 1.0 pole
- Throws / Positions
- 2.0pos
- Switch Function
- Locking On/Off
- Switch Connection
- Spade Terminals
- Switch Colour Coded
- Blue
- Cycle Life
- 100000.0 cycles
- DC Voltage
- 12.0V
- DC current rating
- 20.0A
- Nominal Voltage
- 12.0V-12.0V
- Illumination Colour
- Blue
- Connection
- Spade Terminals
- Packaged Dimensions
- 13.0cm(Length) x 8.9cm(Width) x 3.4cm(Height)
