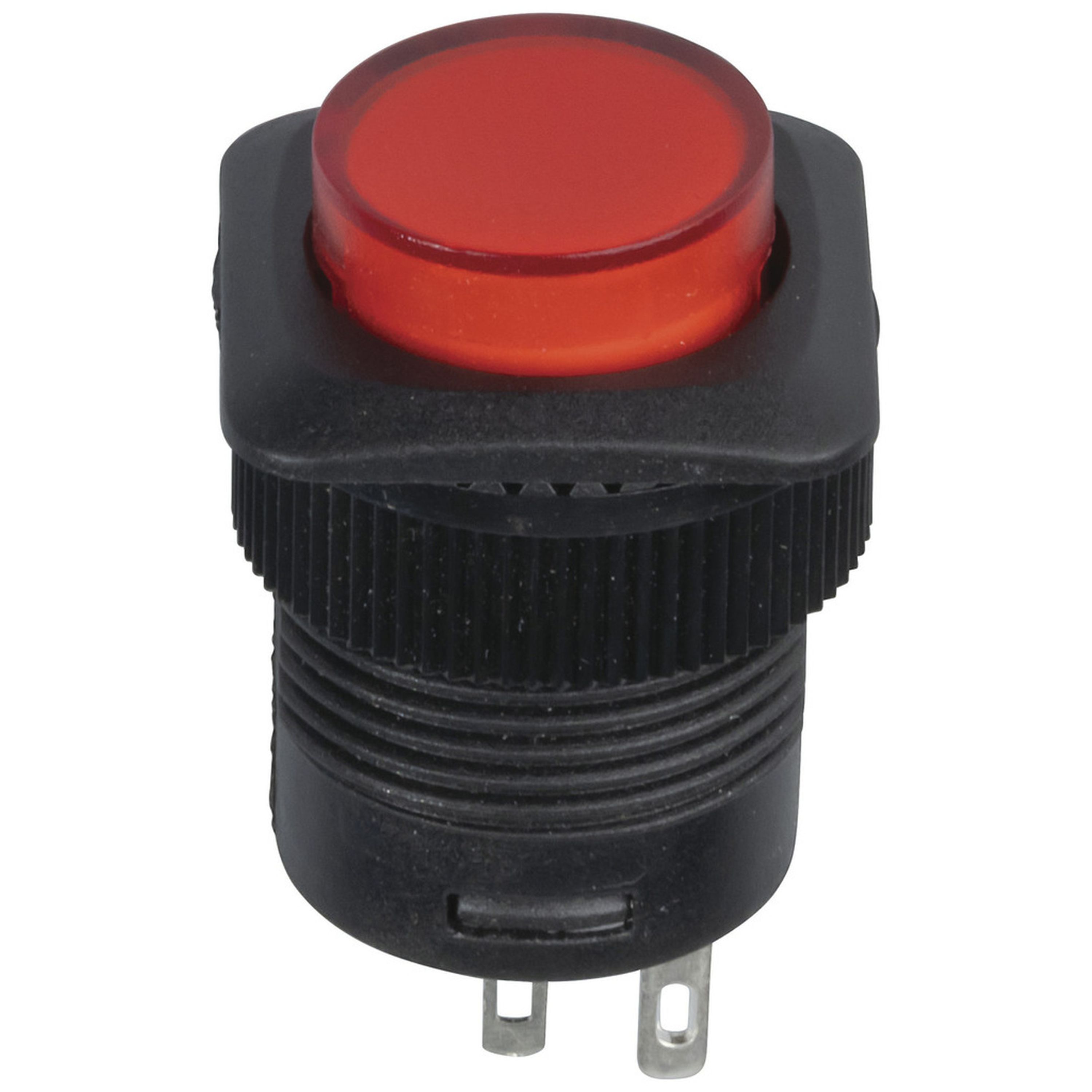

SPST LED Illuminated PUSH ON / PUSH OFF
- Cat No:
- SP0704
Sold as:1 Each
In Stock$8.20
Description
These short bodied pushbuttons are available 2 ways. Both have red LEDs behind a red diffused actuator. LED needs 2V. Red illuminated actuator.
Specifications
- Switch Type
- Pushbutton
- Poles / Contacts
- 1.0 pole
- Throws / Positions
- 1.0 pos
- Switch Function
- Latching
- Mechanism Material
- Plastic
- Switch Connection
- Solder Tags
- Pole Throw Type
- SPST
- AC Voltage Rating
- 250.0V
- AC Current Rating
- 1.2A
- Illumination Colour
- Red
- Nominal Voltage
- 2.0V
- LED Connection
- Solder Tags
- LED Type
- LED
- Length
- 18.0mm
- Width
- 18.0mm
- Height
- 30.0mm
- Diameter
- 18.0mm
- Switch Type
- Pushbutton
- Pole Throw Type
- SPST
- Poles / Contacts
- 1.0 pole
- Throws / Positions
- 1.0pos
- Switch Function
- Locking On/Off
- Switch Connection
- Solder Legs
- Switch Colour Coded
- Red
- Contact Resistance
- 50.0mΩ
- Insulation Resistance
- 100.0MΩ
- Dielectric Strength
- 1.0V
- Mechanism Material
- Plastic
- AC Voltage rating
- 250.0V
- AC current rating
- 1.2A
- Nominal Voltage
- 2.0V-2.0V
- Type
- 5mm Standard LED
- Illumination Colour
- Red
- Connection
- Solder Legs
- Packaged Dimensions
- 11.1cm(Length) x 6.8cm(Width) x 2.1cm(Height)
