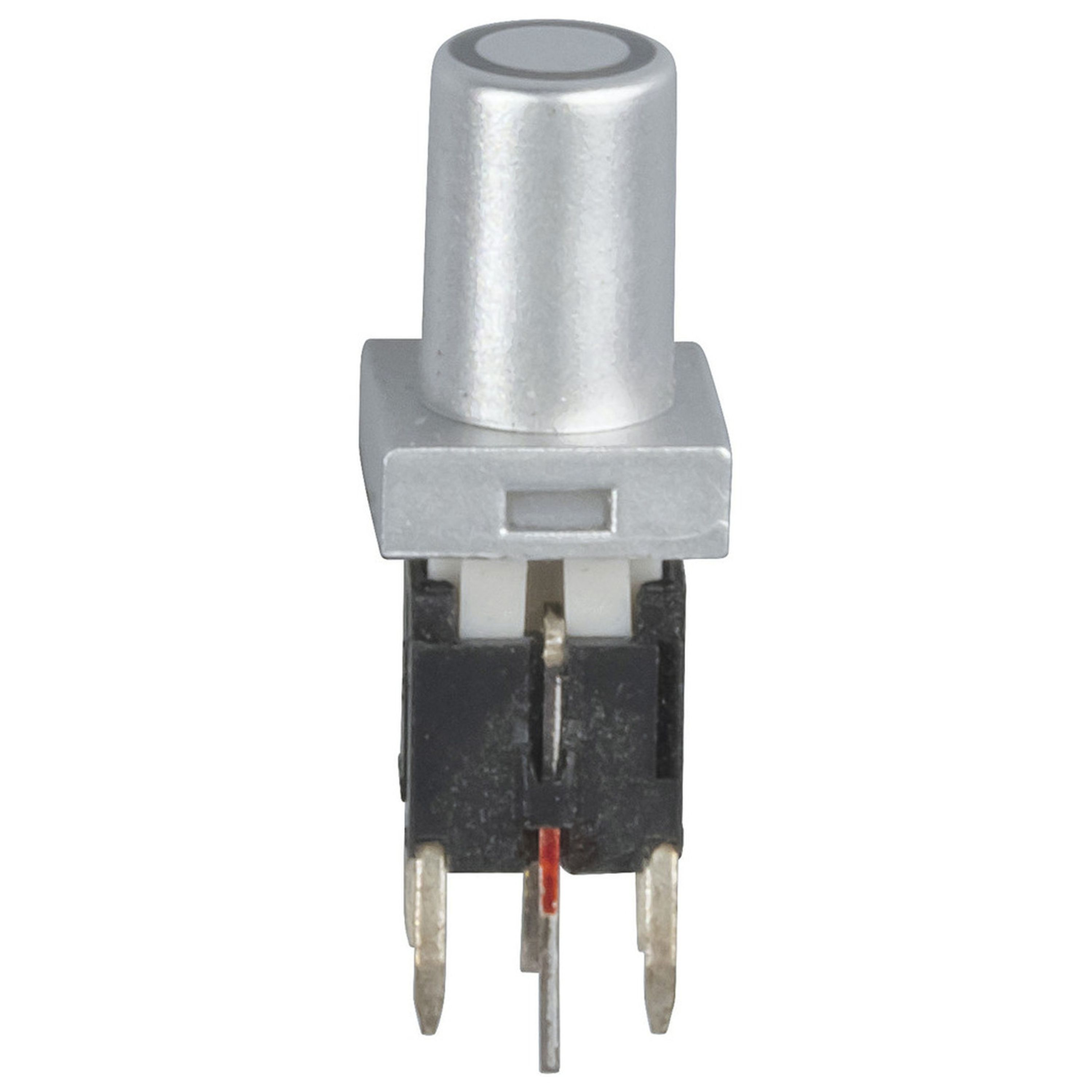

SPST PCB Mount Tactile - Vertical and Horizontal with LED - Vertical Red
- Cat No:
- SP0612
Sold as:1 Each
In Stock$4.90
Description
LED SPST PCB tactile switch
LED Power Supply: 3.5-4V DC @ 25mA
Orientation Colour Cat #
Vertical Red SP-0612
Vertical Green SP-0613
Vertical Blue SP-0614
Horizontal Red SP-0615
Horizontal Green SP-0616
Horizontal Blue SP-0617
LED Power Supply: 3.5-4V DC @ 25mA
Orientation Colour Cat #
Vertical Red SP-0612
Vertical Green SP-0613
Vertical Blue SP-0614
Horizontal Red SP-0615
Horizontal Green SP-0616
Horizontal Blue SP-0617
Specifications
- Switch Type
- Tactile Pushbutton
- Poles / Contacts
- 1.0 pole
- Throws / Positions
- 1.0 pos
- Switch Function
- Momentary
- Contact Resistance
- 100.0 mΩ
- Insulation Resistance
- 100.0 MΩ
- Dielectric Strength
- 100.0 V
- Mechanism Material
- Plastic
- Switch Connection
- PCB Pins
- Switch Colour Coded
- Red (LED)
- Actuator Height
- 13.0 mm
- Pole Throw Type
- SPST
- DC Voltage
- 12.0 V
- DC Current Rating
- 50.0 mA
- Length
- 7.5mm
- Width
- 7.5mm
- Height
- 17.3mm
- Switch Type
- Tactile Pushbutton
- Pole Throw Type
- SPST
- Poles / Contacts
- 1.0 pole
- Throws / Positions
- 1.0pos
- Switch Function
- Single Action Momentary
- Switch Connection
- PCB Pins
- Switch Colour Coded
- Red
- Contact Resistance
- 100.0mΩ
- Insulation Resistance
- 100.0MΩ
- Dielectric Strength
- 100.0V
- Mechanism Material
- Plastic
- DC Voltage
- 12.0V
- DC current rating
- 50.0mA
- Packaged Dimensions
- 0.5cm(Length) x 0.5cm(Width) x 2.0cm(Height)
