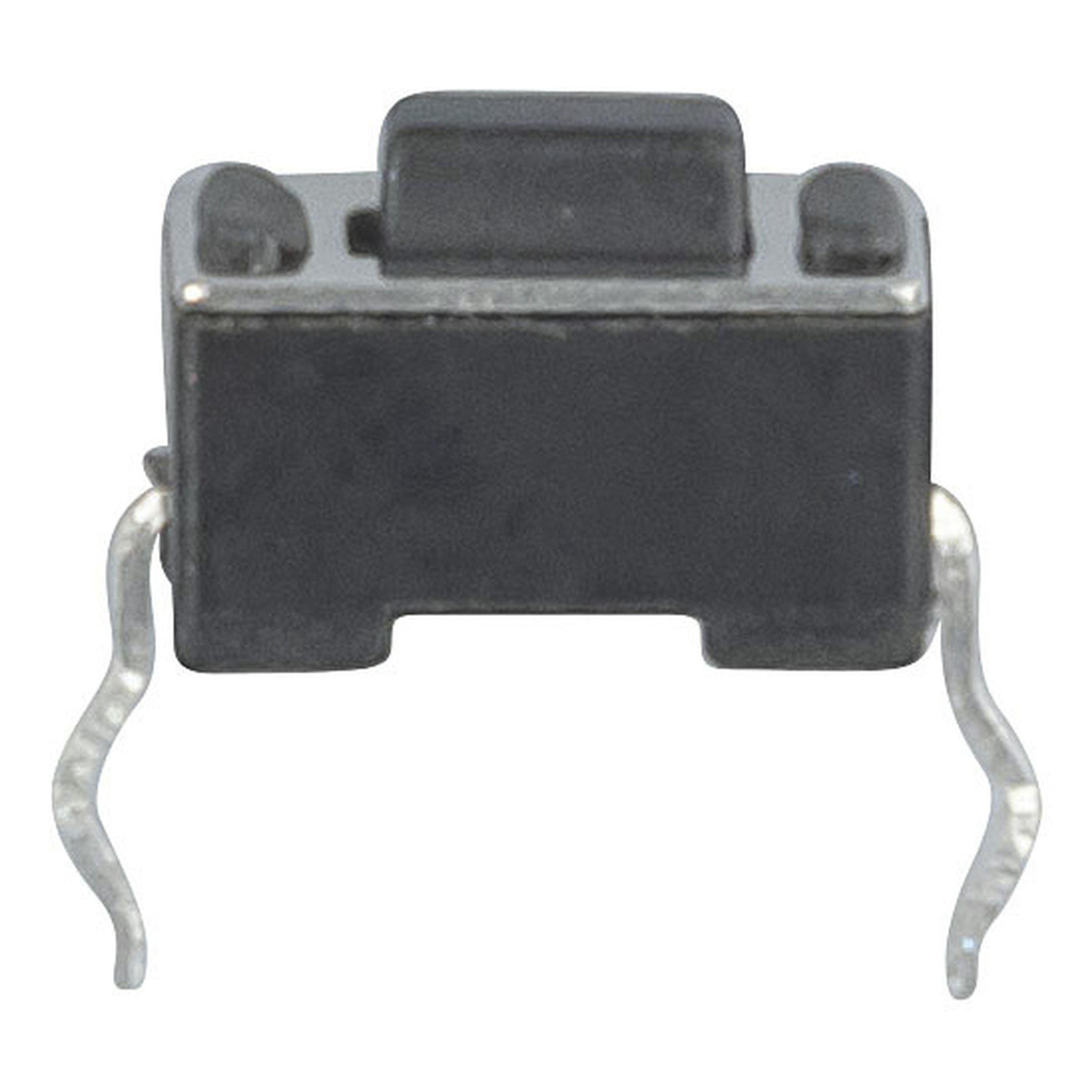

SPST PCB Tactile Switch
- Cat No:
- SP0611
Sold as:1 Each
In Stock$1.20
Description
Normally open SPST momentary micro tactile switch.
Operating Temperature: -16 to 60 deg C
Operating Temperature: -16 to 60 deg C
Specifications
- Switch Type
- Tactile Pushbutton
- Poles / Contacts
- 1.0 pole
- Switch Function
- Momentary
- Throws / Positions
- 1.0 pos
- Insulation Resistance
- 100.0 MΩ
- Contact Resistance
- 100.0 mΩ
- Dielectric Strength
- 250.0 V
- Mechanism Material
- Plastic
- Switch Connection
- PCB Pins
- Switch Colour Coded
- Black
- Actuator Height
- 2.9 mm
- Pole Throw Type
- SPST
- Actuator Diameter
- 1.5 mm
- DC Voltage
- 12.0 V
- DC Current Rating
- 50.0 mA
- Length
- 6.0mm
- Width
- 3.5mm
- Height
- 3.5mm
- Switch Type
- Tactile Pushbutton
- Pole Throw Type
- SPST
- Poles / Contacts
- 1.0 pole
- Throws / Positions
- 1.0pos
- Switch Function
- Single Action Momentary
- Switch Connection
- PCB Pins
- Contact Resistance
- 100.0mΩ
- Insulation Resistance
- 100.0MΩ
- Dielectric Strength
- 250.0V
- Mechanism Material
- Plastic
- Actuator Length
- 2.9mm
- Actuator Width
- 1.5mm
- DC Voltage
- 12.0V
- DC current rating
- 50.0mA
- Packaged Dimensions
- 0.5cm(Length) x 0.2cm(Width) x 0.5cm(Height)
