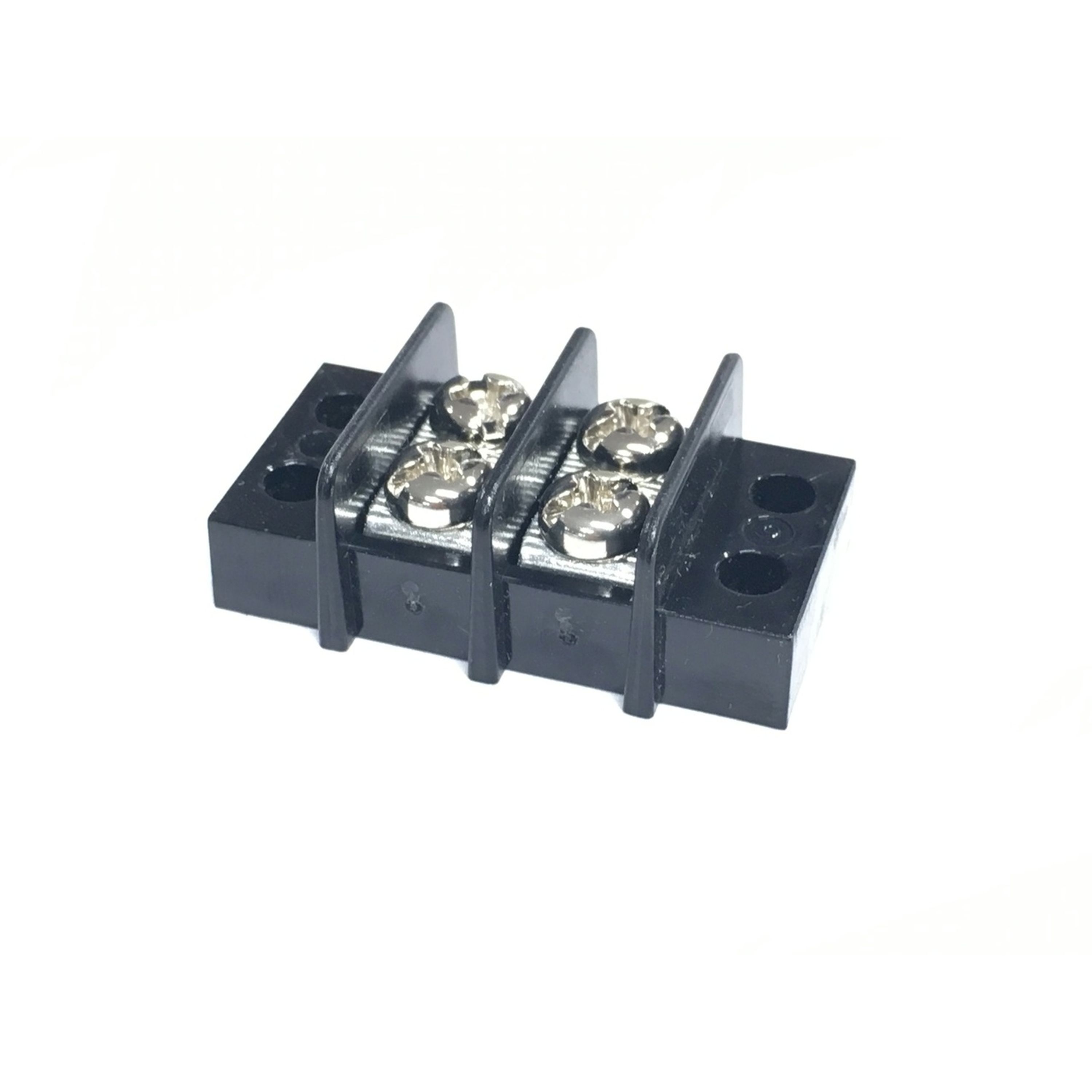

Surface Mount 2 Way Screw Terminal Strip
- Cat No:
- HM3167
Sold as:1 Each
In Stock$4.70
Description
These units feature the ability to terminate 2 or 3 sets of wires securely with the option of changing or adding connections. In classic barrier strip fashion there is a comprehensive fence between each terminal. Each sturdy block has 2 x 4mm mounting holes at each end and a insulating body with high impact plastic.
Two models available:
HM3169 - Surface Mount 3 Way Screw Terminal Strip
Two models available:
HM3169 - Surface Mount 3 Way Screw Terminal Strip
Specifications
- Type
- Screw Terminal
- Device
- Terminal
- Attachment Method
- Screw Terminals
- Number of Contacts
- 2.0pc
- Insulation Dielectric Voltage Rating
- 2000.0V
- Insulation Resistance
- 500.0MΩ
- Body Material
- Plastic
- AC Voltage rating
- 300.0V
- AC current rating
- 25.0A
- Type
- Terminal Strip
- Device
- Panel Barrier
- Length
- 68mm
- Number of Contacts
- 5.0
- Packaged Dimensions
- 3.6cm(Length) x 2.1cm(Width) x 1.5cm(Height)
