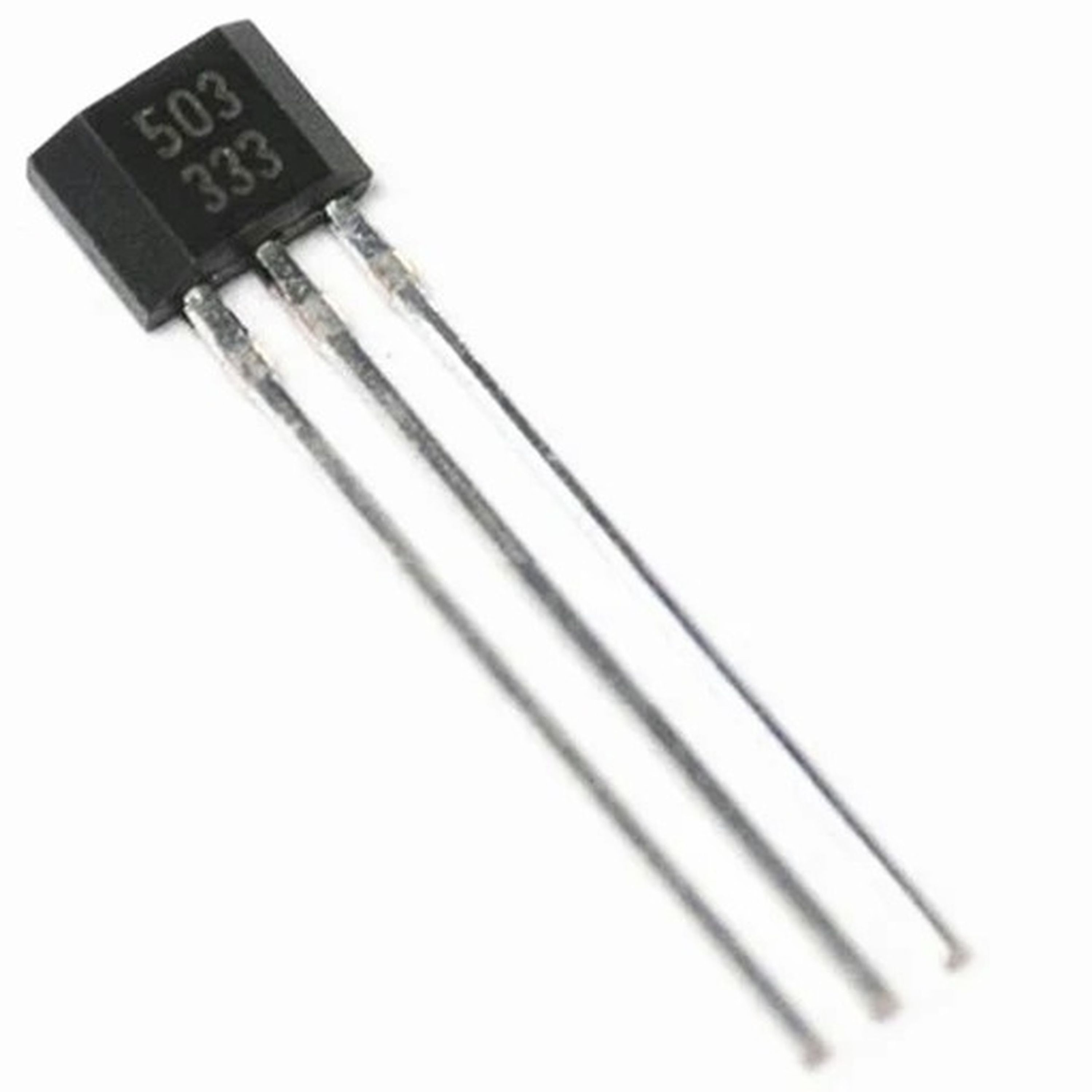

UGN3503UA Hall Effect Sensor
- Cat No:
- ZD1902
Sold as:1 Each
In Stock$9.20
Description
A miniature sensor to accurately track extremely small changes in magnetic flux density - changes generally too small to operate hall effect switches.
Applications include notch sensor, current monitor, gear tooth sensor, etc.
Applications include notch sensor, current monitor, gear tooth sensor, etc.
Specifications
- Operating Voltage
- 4.5V
- Supply Current
- 9.0mA
- Output Voltage
- 2.5V
- Output Resistance
- 50.0Ω
- Width
- 4.17mm
- Height
- 3.1mm
- Depth
- 1.57mm
- Packaged Dimensions
- 2.0cm(Length) x 0.5cm(Width) x 0.2cm(Height)
