Woofer Speaker Driver - 10 Inch
- Cat No:
- CW2198
Out of Stock
$95.90
Description
These Response woofers are excellent for replacement or for new speaker design constructions. Not only are they price competitive and perform very well, but they also look fantastic!
The concave treated paper cone matched with rubber surround provides smooth overall response. Equipped strong steel frame baskets, high power magnet and voice coils, these drivers will produce massive quantities of clean bass output for any musical application.
The concave treated paper cone matched with rubber surround provides smooth overall response. Equipped strong steel frame baskets, high power magnet and voice coils, these drivers will produce massive quantities of clean bass output for any musical application.
Specifications
- Speaker Type
- Woofer Driver
- Driver Material
- Coated Paper

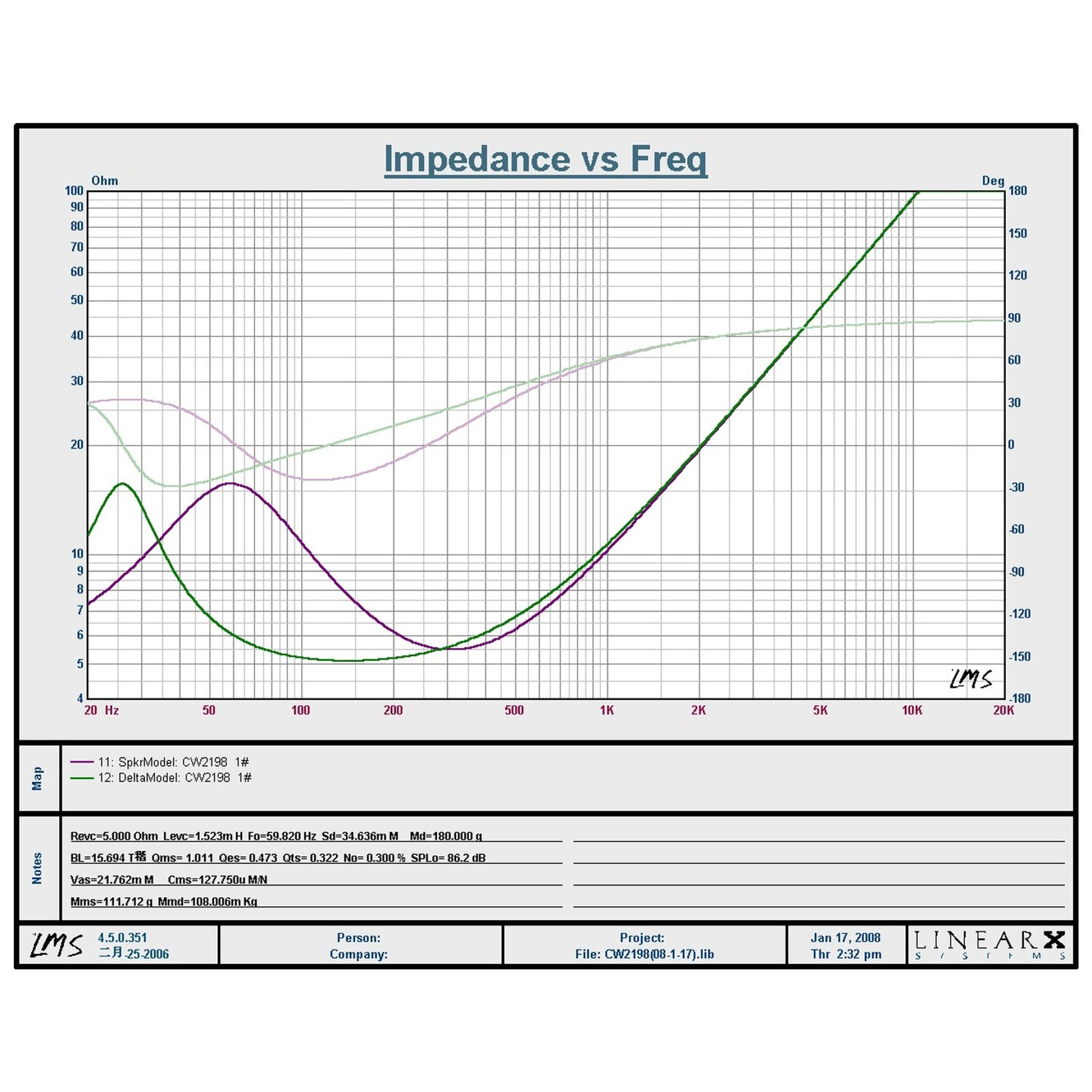

- Nominal Impedance
- 8.0Ω
- RMS Power Rating
- 225.0W

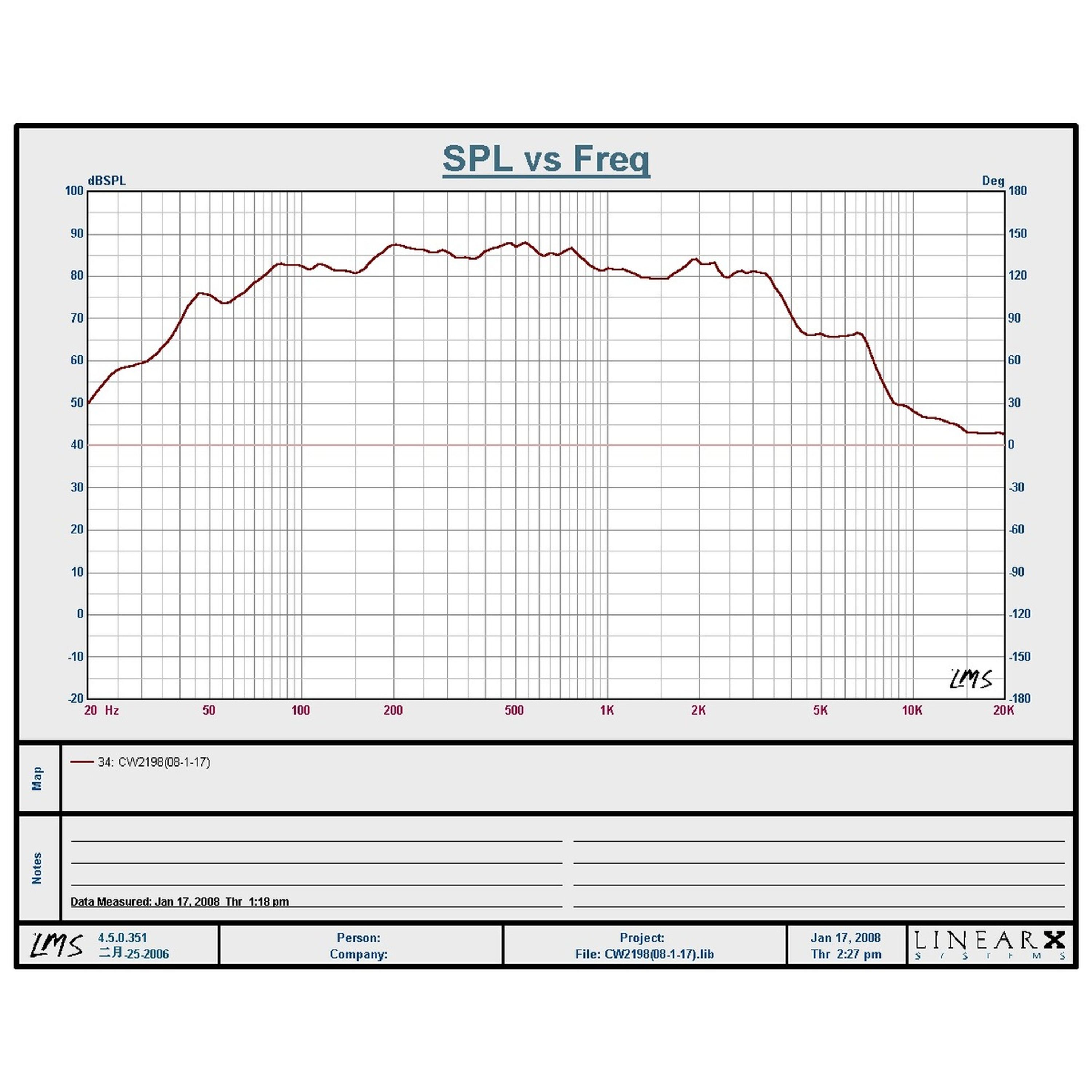

- Frequency Response
- 40.0Hz-1.0kHz
- Resonant Frequency
- 59.8Hz
- Sensitivity (SPL@1W, 1m)
- 88.0dB
- Recommended Speaker Box Volume
- 80.0l
- Driver Channels
- Single Driver
- Mechanical Q (Q<sub>ms</sub>)
- 1.01
- Electrical Q Factor (Q<sub>es</sub>)
- 0.47
- Total Q (Q<sub>ts</sub>)
- 0.32
- Equivalent Volume (V<sub>as</sub>)
- 21.76l
- DC Coil Resistance (R<sub>e</sub>)
- 5.41Ω
- Side-to-Side Diameter (A)
- 258.0mm
- Mounting Hole Diameter (B)
- 245.0mm
- Cutout Diameter (C)
- 235.0mm
- Insert Depth (D)
- 110.0mm
- Cutout shape
- Round
- Diameter
- 258.0mm
- Maximum Power
- 450.0W
- Packaged Dimensions
- 27.3cm(Length) x 27.6cm(Width) x 15.0cm(Height)
