Woofer Speaker Driver - 8 Inch
- Cat No:
- CW2196
Sold as:1 Each
In Stock$53.90
Description
The concave treated paper cone matched with rubber surround provides smooth overall response. Equipped strong steel frame baskets, high power magnet and voice coils, these drivers will produce massive quantities of clean bass output for any musical application.
• Available in multiple sizes
• Coated paper cone
Specifications
- Speaker Type
- Woofer Driver
- Driver Material
- Coated Paper
- Nominal Impedance
- 8.0Ω
- RMS Power Rating
- 90.0W

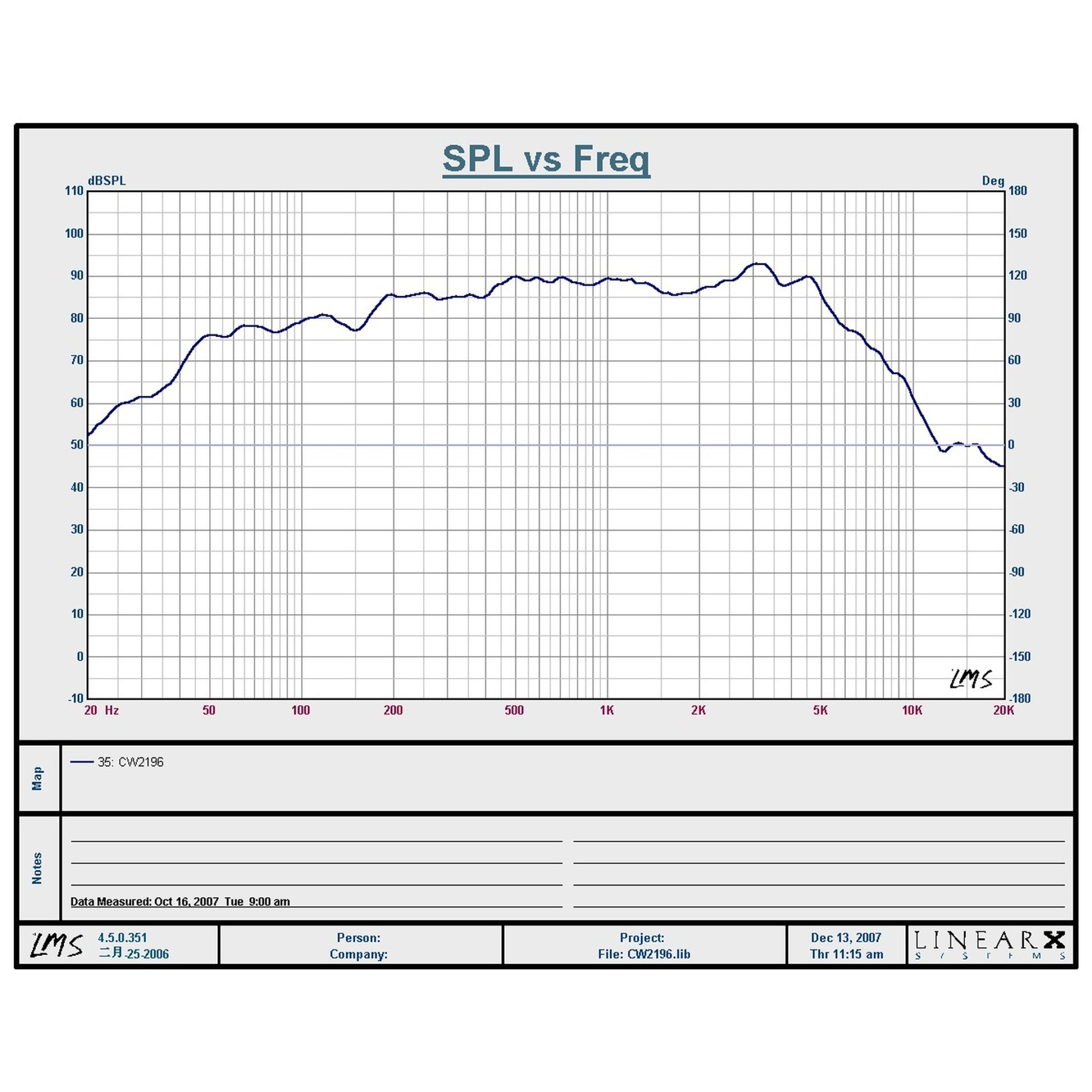

- Frequency Response
- 38.0Hz-4.5kHz
- Resonant Frequency
- 28.1Hz
- Sensitivity (SPL@1W, 1m)
- 89.0dB
- Recommended Speaker Box Volume
- 42.0l
- Driver Channels
- Single Driver

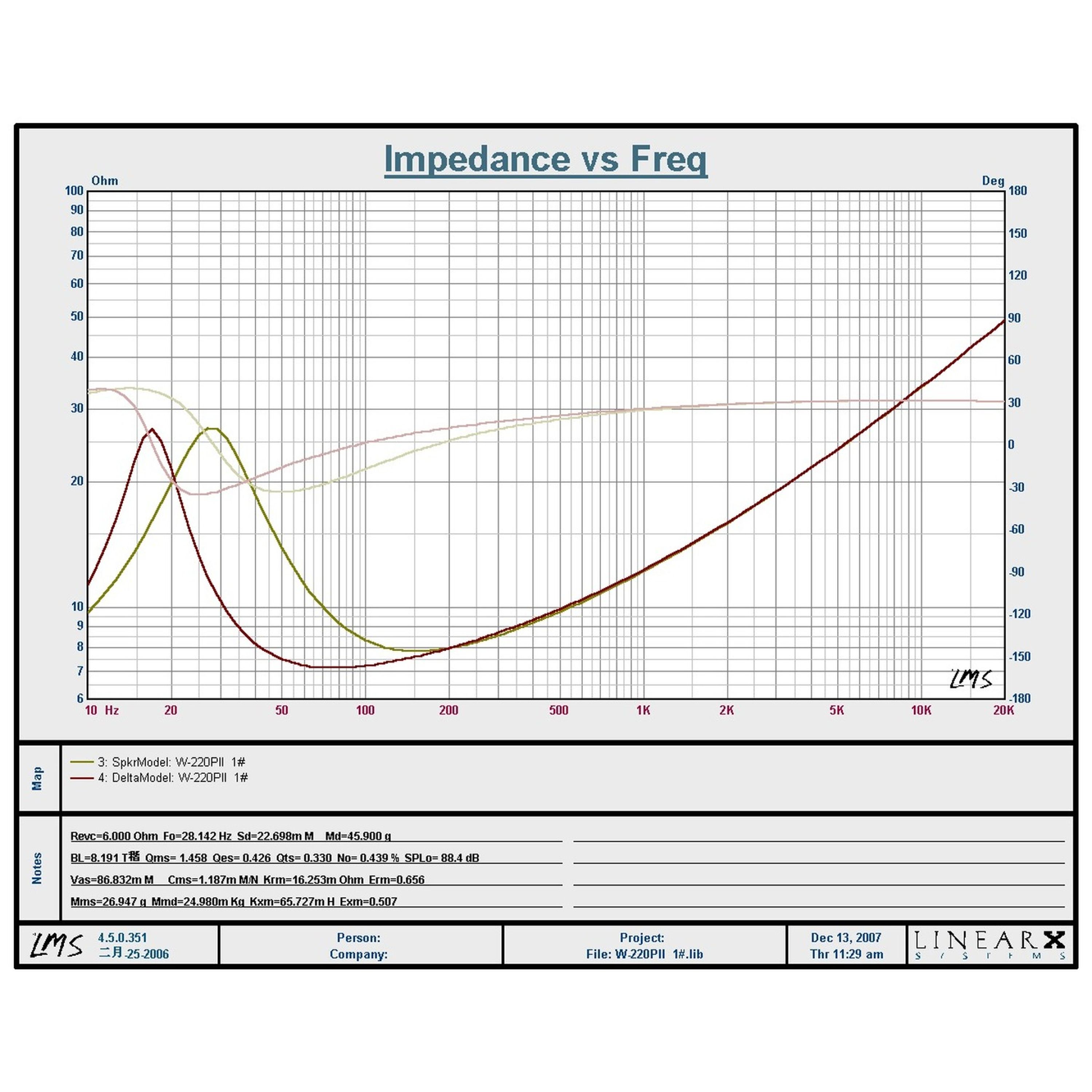

- Mechanical Q (Q<sub>ms</sub>)
- 1.46
- Electrical Q Factor (Q<sub>es</sub>)
- 0.43
- Total Q (Q<sub>ts</sub>)
- 0.33
- Equivalent Volume (V<sub>as</sub>)
- 42.0l
- DC Coil Resistance (R<sub>e</sub>)
- 6.0Ω
- Side-to-Side Diameter (A)
- 220.0mm
- Mounting Hole Diameter (B)
- 212.0mm
- Cutout Diameter (C)
- 182.0mm
- Insert Depth (D)
- 92.0mm
- Cutout shape
- Round
- Diameter
- 220.0mm
- Packaged Dimensions
- 23.1cm(Length) x 22.7cm(Width) x 11.5cm(Height)
