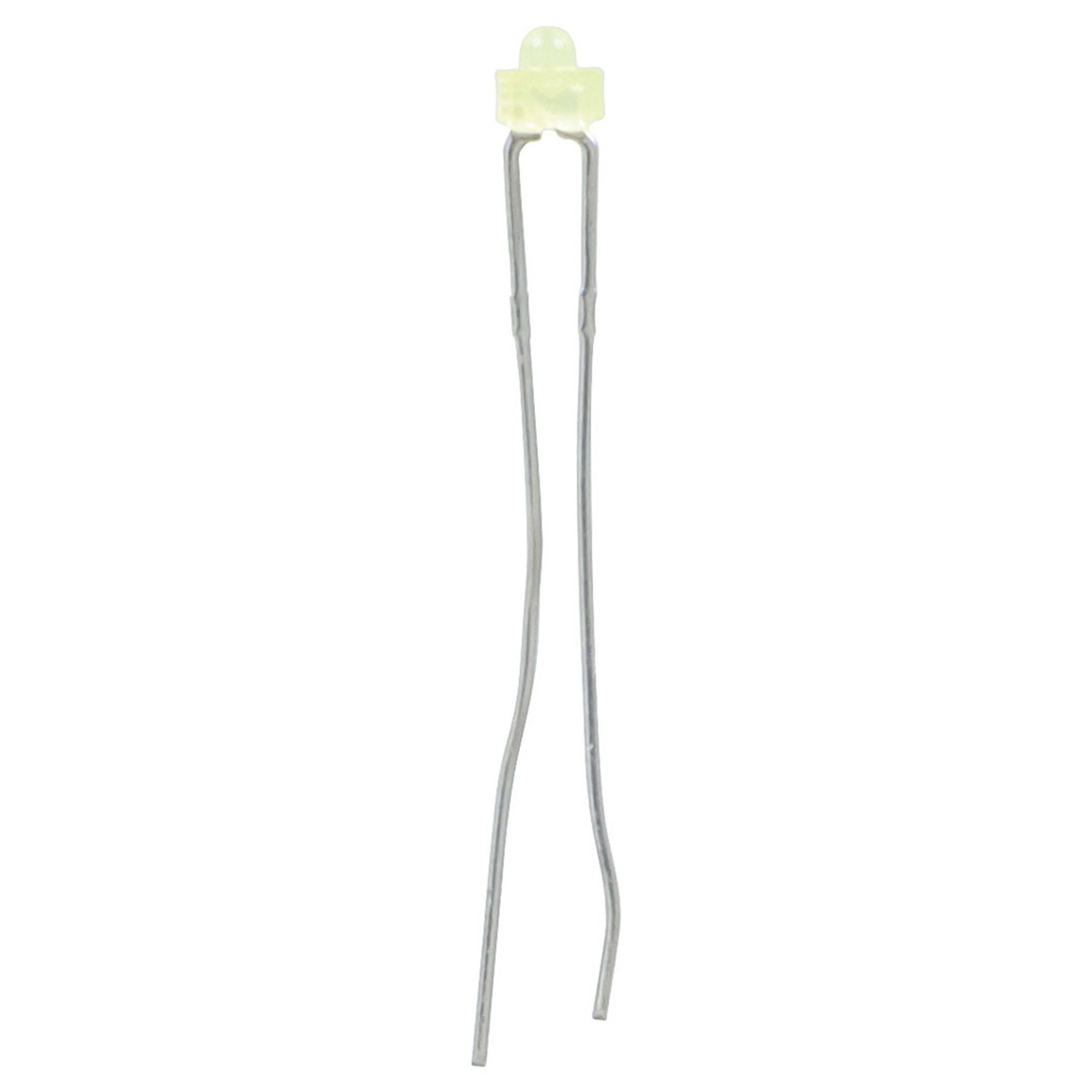

Yellow 2mm LED 270mcd Tower Type Diffused
- Cat No:
- ZD0050
Sold as:1 Each
In Stock$0.90
Description
A yellow through-hole diffused tower type LED that fits into a 1.8mm hole in a panel or enclosure.
• 5 colours to choose from
Specifications
- LED Type
- 2mm Tower Type LED
- Illumination Type
- Single Colour
- Light Colour
- Yellow
- Light Wavelength
- 590.0nm,592.0nm
- Lens Type
- Diffused
- Viewing Angle
- 60.0°
- Intensity
- 270.0mcd
- V<sub>f (typ)</sub> - Typical Forward Voltage
- 2.0V
- I<sub>f (typ)</sub> - Typical Forward Current
- 20.0mA
- Resistor for 5VDC
- 150.0Ω
- Resistor for 9VDC
- 360.0Ω
- Resistor for 12VDC
- 510.0Ω
- Diameter
- 2.0mm
- Packaged Dimensions
- 3.0cm(Length) x 0.4cm(Width) x 0.3cm(Height)
