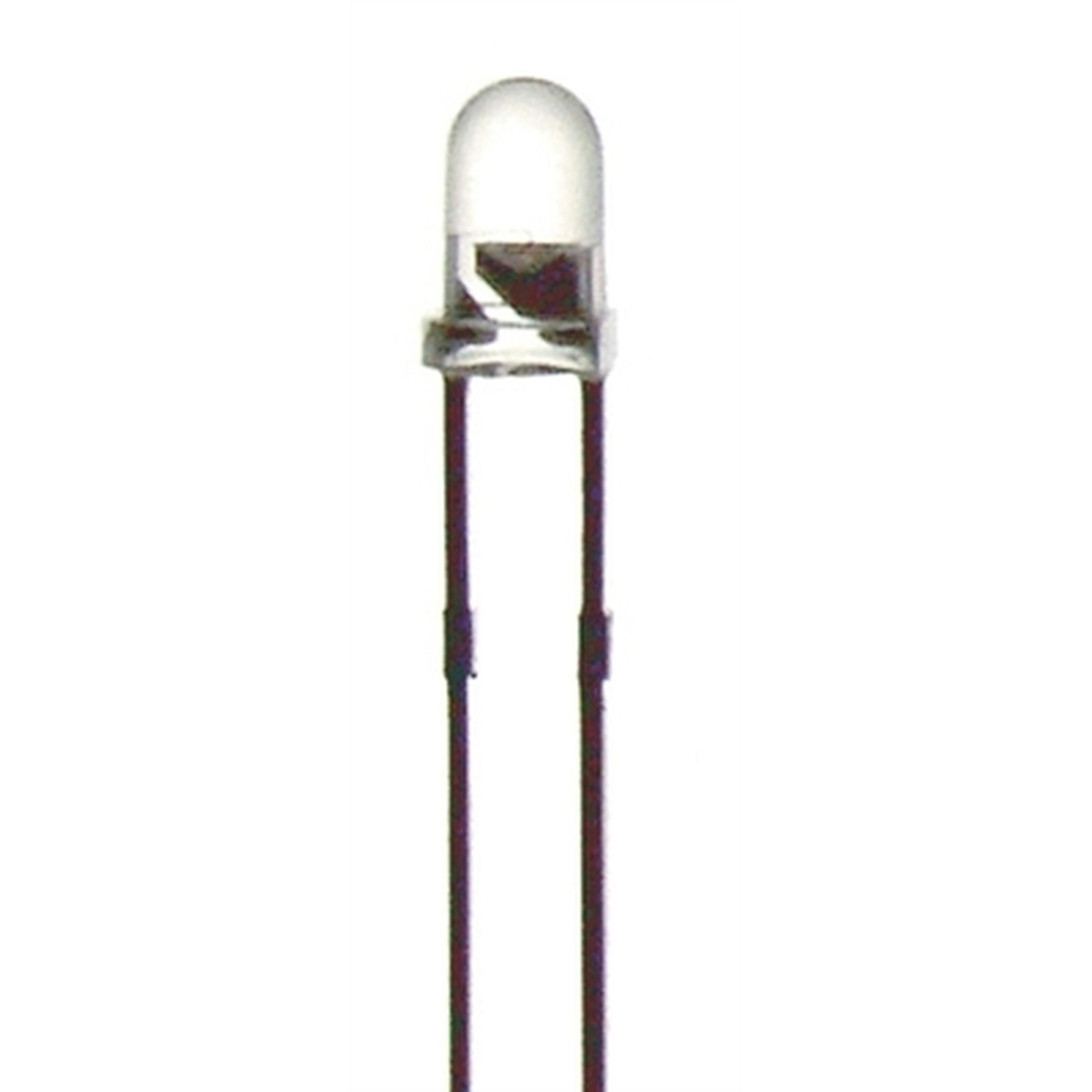

Yellow 3mm LED 3000mcd Round Clear
- Cat No:
- ZD0112
In Stock
$1.40
Description
Yellow 3mm LED 3000mCd Round Clear
Specifications
- LED Type
- 3mm Standard LED
- Illumination Type
- Single Colour
- Light Colour
- Yellow
- Lens Type
- waterclear
- Light Wavelength
- 588nm
- V<sub>f (typ)</sub> - Typical Forward Voltage
- 2V
- I<sub>f (typ)</sub> - Typical Forward Current
- 20mA
- I<sub>f (max)</sub> - Maximum Forward Current
- 50mA
- Intensity
- 3000mcd
- Viewing Angle
- 20°
- Resistor for 5VDC
- 150Ω
- Resistor for 9VDC
- 360Ω
- Resistor for 12VDC
- 510Ω
- Diameter
- 3mm
- Packaged Dimensions
- 0.3 x 0.3 x 3.5 cm
